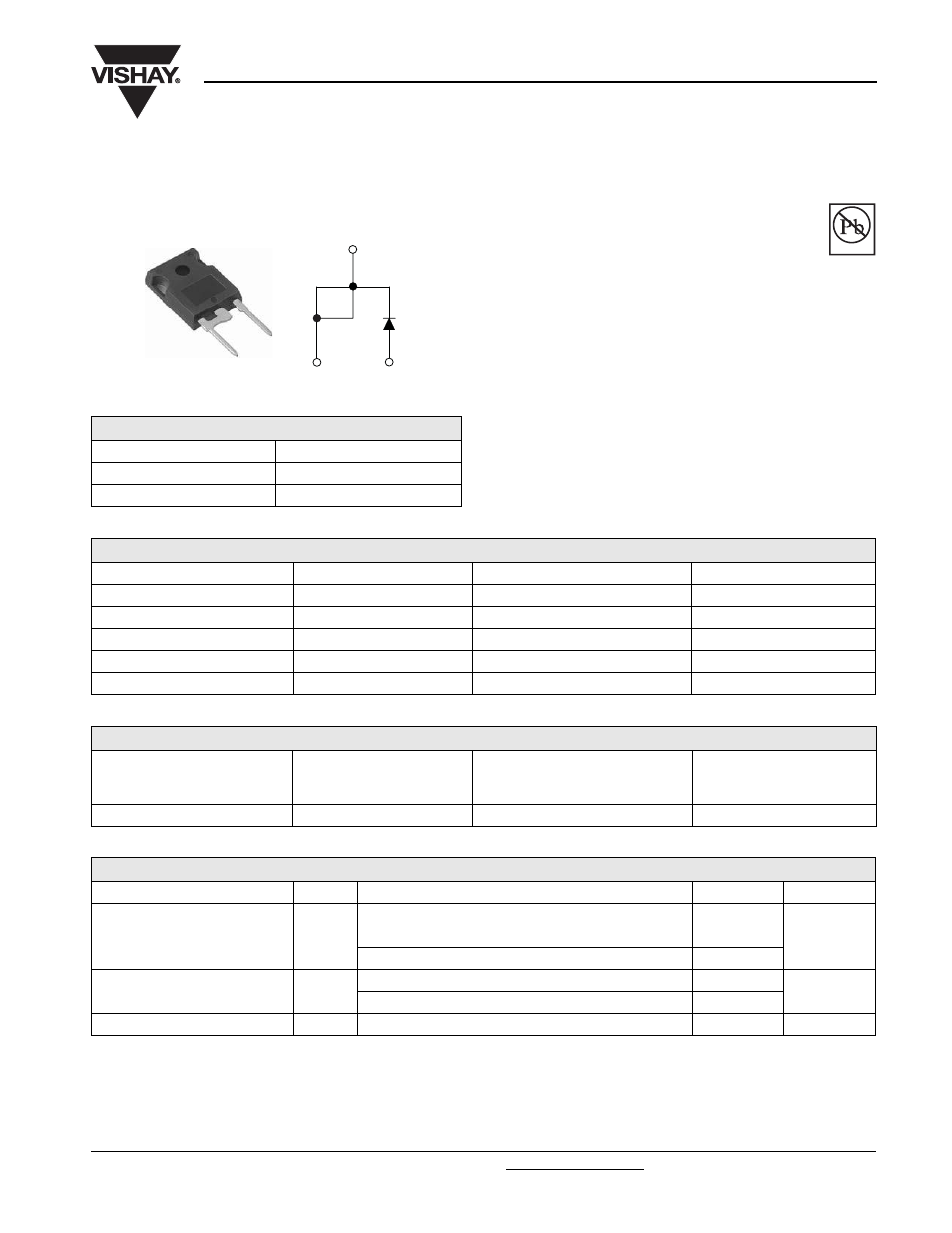

Input Rectifier Diode, 40 A
40EPS16PbF High Voltage Series
Vishay High Power Products
DESCRIPTION/FEATURES
The 40EPS16PbF rectifier High Voltage Series
has been optimized for very low forward
voltage drop, with moderate leakage. The
glass passivation technology used has reliable
operation up to 150° C junction temperature.
Typical applications are in input rectification and these
products are designed to be used with Vishay HPP
switches and output rectifiers which are available in identical
package outlines.
This product has been designed and qualified for industrial
level and lead (Pb)-free.
PRODUCT SUMMARY
V
F
at 20 A 1 V
I
FSM
475 A
V
RRM
1600 V
TO-247AC modified
Base
cathode
2
1 3
Anode Cathode
Available
Pb-free
RoHS*
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Sinusoidal waveform 40 A
V
RRM
1600 V
I
FSM
475 A
V
F
20 A, T
J
= 25 °C 1.0 V
T
J
- 40 to 150 °C
VOLTAGE RATINGS
PART NUMBER
V
RRM
, MAXIMUM
PEAK REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
AT 150 °C
mA
40EPS16PbF 1600 1700 1
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current I
F(AV)
T
C
= 105 °C, 180° conduction half sine wave 40
A Maximum peak one cycle
non-repetitive surge current
I
FSM
10 ms sine pulse, rated V
RRM
applied 400
10 ms sine pulse, no voltage reapplied 475
Maximum I 2 t for fusing I 2 t
10 ms sine pulse, rated V
RRM
applied 800
A 2 s
10 ms sine pulse, no voltage reapplied 1131
Maximum I 2 √t for fusing I 2 √t t = 0.1 to 10 ms, no voltage reapplied 11 310 A 2 √s
* Pb containing terminations are not RoHS compliant, exemptions may apply
