Single IGBTMOD™
H-Series Module
300 Amperes/1400 Volts
CM300HA-28H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

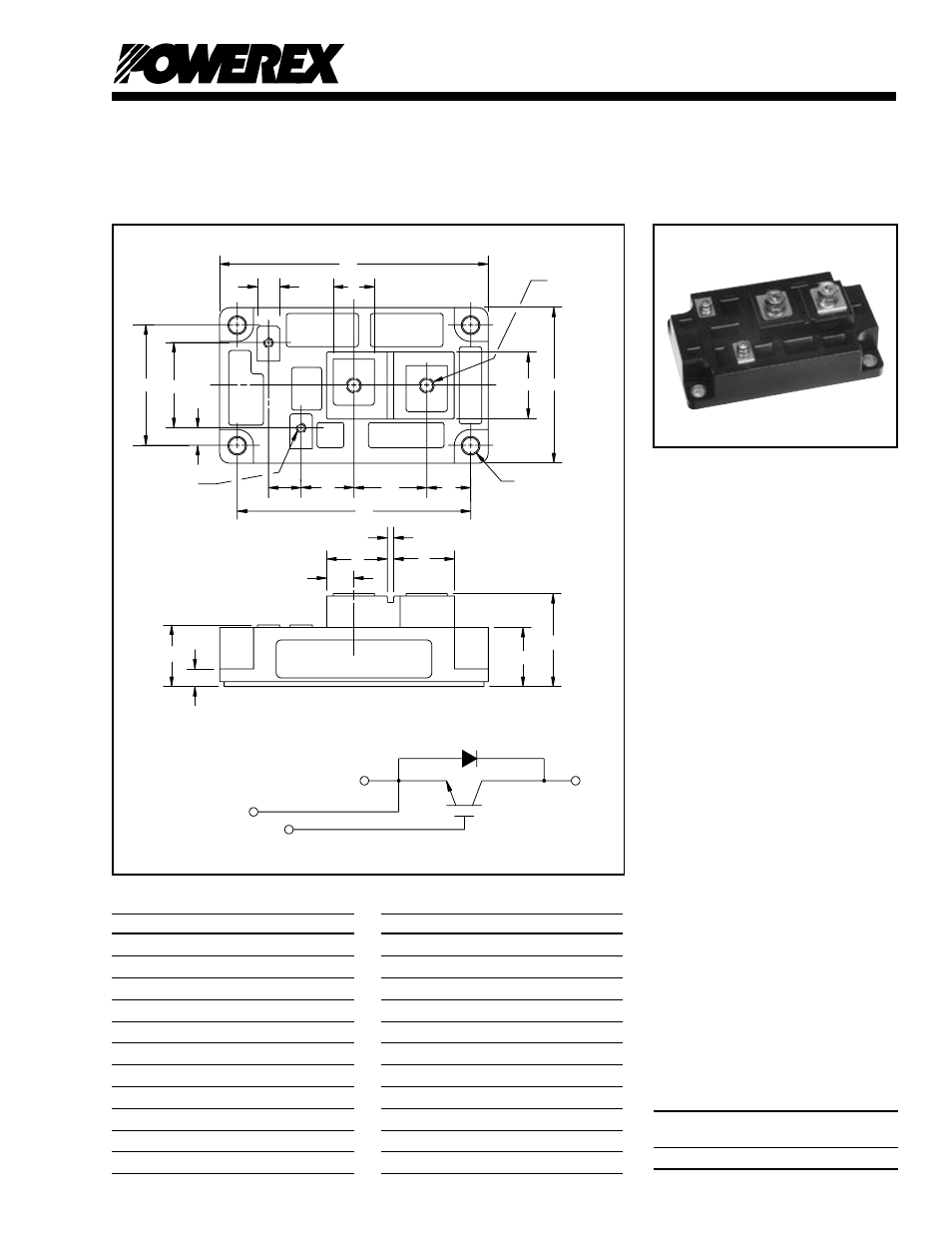

Outline Drawing and Circuit Diagram
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a single
configuration with a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assem-
bly and thermal management.
Features:
£
Low Drive Power
£
Low V
CE(sat)
£
Discrete Super-Fast Recovery
(70ns) Free-Wheel Diode
£
High Frequency Operation
(20-25kHz)
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
AC Motor Control
£
Motion/Servo Control
£
UPS
£
Welding Power Supplies
£
Laser Power Supplies
Ordering Information:
Example: Select the complete
part module number you de-
sire from the table below -i.e.
CM300HA-28H is a 1400V
(V
CES
), 300 Ampere Single IGBT-
MOD™ Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 50)
CM
300
28
Dimensions
Inches
Millimeters
A
4.21
107.0
B
3.661±0.01
93.0±0.25
C
2.44
62.0
D
1.89±0.01
48.0±0.25
E
1.42 Max.
36.0 Max.
F
1.34
34.0
G
1.18
30.0
H
1.14
29.0
J
0.98 Max.
25.0 Max.
K
0.94
24.0
L
0.93
23.5
Dimensions
Inches
Millimeters
M
0.83
21.0
N
0.69
17.5
P
0.63
16.0
Q
0.51
13.0
R
0.43
11.0
S
0.35
9.0
T
0.28
7.0
U
0.12
3.0
V
0.26 Dia.
Dia. 6.5
W
M6 Metric
M6
X
M4 Metric
M4
U
R
K
E
J
T
L
K
E
C
E
G
B
G
N
H
Q
D
F
A
P
S
C
M
G
E
E
C
T
W - M6 THD.
(2 TYP.)
X - M4 THD.
(2 TYP.)
V - DIA.
(4 TYP.)
