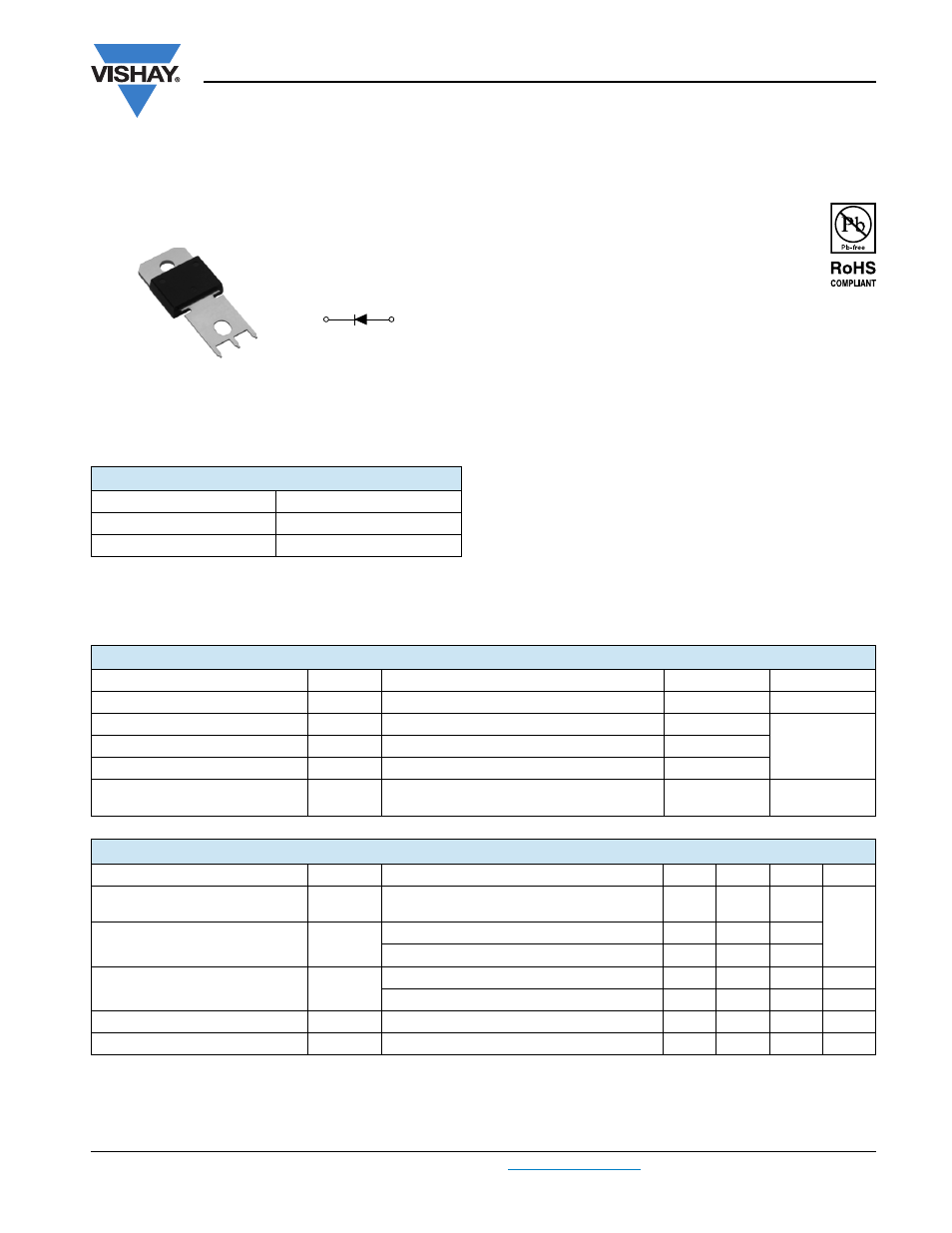

Ultrafast Soft Recovery Diode,
150 A FRED Pt TM
150EBU02
Vishay High Power Products
FEATURES
• Ultrafast recovery
• 175 °C operating junction temperature
• Screw mounting only
• Lead (Pb)-free plating
• Designed and qualified for industrial level
• Compliant to RoHS directive 2002/95/EC
BENEFITS
• Reduced RFI and EMI
• Higher frequency operation
• Reduced snubbing
• Reduced parts count
DESCRIPTION/APPLICATIONS
These diodes are optimized to reduce losses and EMI/RFI in
high frequency power conditioning systems.
The softness of the recovery eliminates the need for a
snubber in most applications. These devices are ideally
suited for HF welding, power converters and other
applications where switching losses are not significant
portion of the total losses.
PRODUCT SUMMARY
t
rr
45 ns
I
F(AV)
150 A
V
R
200 V
PowerTab TM
Cathode Anode
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS MAX. UNITS
Cathode to anode voltage V
R
200 V
Continuous forward current I
F(AV)
T
C
= 116 °C 150
A Single pulse forward current I
FSM
T
C
= 25 °C 1600
Maximum repetitive forward current I
FRM
Square wave, 20 kHz 380
Operating junction and storage
temperatures
T
J
, T
Stg
- 55 to 175 °C
ELECTRICAL SPECIFICATIONS (T
J
= 25 °C unless otherwise specified)
PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNITS
Breakdown voltage,
blocking voltage V
BR
,
V
R
I
R
= 100 µA 200 - -
V
Forward voltage V
F
I
F
= 150 A - 0.99 1.13
I
F
= 150 A, T
J
= 175 °C - 0.79 0.90
Reverse leakage current I
R
V
R
= V
R
rated - - 50 µA
T
J
= 150 °C, V
R
= V
R
rated - - 2 mA
Junction capacitance C
T
V
R
= 200 V - 180 - pF
Series inductance L
S
Measured lead to lead 5 mm from package body - 3.5 - nH
