106 PED-ST
Vishay BCcomponents
Aluminum Capacitors
Power Eurodin Screw Terminals
www.vishay.com For technical questions, contact: [email protected] Document Number: 28384
178 Revision: 27-May-09
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, cylindrical aluminum case,
insulated with a blue sleeve
• Also available in bolt version (106 PED-STB)
• Pressure relief in the sealing
• Charge and discharge proof
• Extremely low ESR and ESL allowing very high ripple
current load
• Very long useful life: 20 000 hours at 85 °C
• High resistance to shock and vibration
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Computer, telecommunications and industrial systems
• Smoothing and filtering
• Standard and switched mode power supplies
• Energy storage in pulse systems
MARKING
The capacitors are marked with the following information:
• Rated capacitance (in µF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (Q for - 10 %/+ 30 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• '-' sign to identify the negative terminal, visible from the top
and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
• “LL” for long life grade
QUICK REFERENCE DATA
DESCRIPTION VALUE
Nominal case size (Ø D x L in mm) 35 x 60 to 90 x 220
Rated capacitance range
(E6 series), C
R
1000 µF to 330 000 µF
Tolerance on C
R
- 10 % to + 30 %
Rated voltage range, U
R
25 V to 100 V
Category temperature range - 40 °C to + 85 °C
Endurance test at 85 °C 8000 hours
Useful life at 85 °C 20 000 hours
Shelf life at 0 V, 85 °C 500 hours
Based on sectional specification IEC 60384-4/EN130300
Climatic category IEC 60068 40/085/56
ST STB

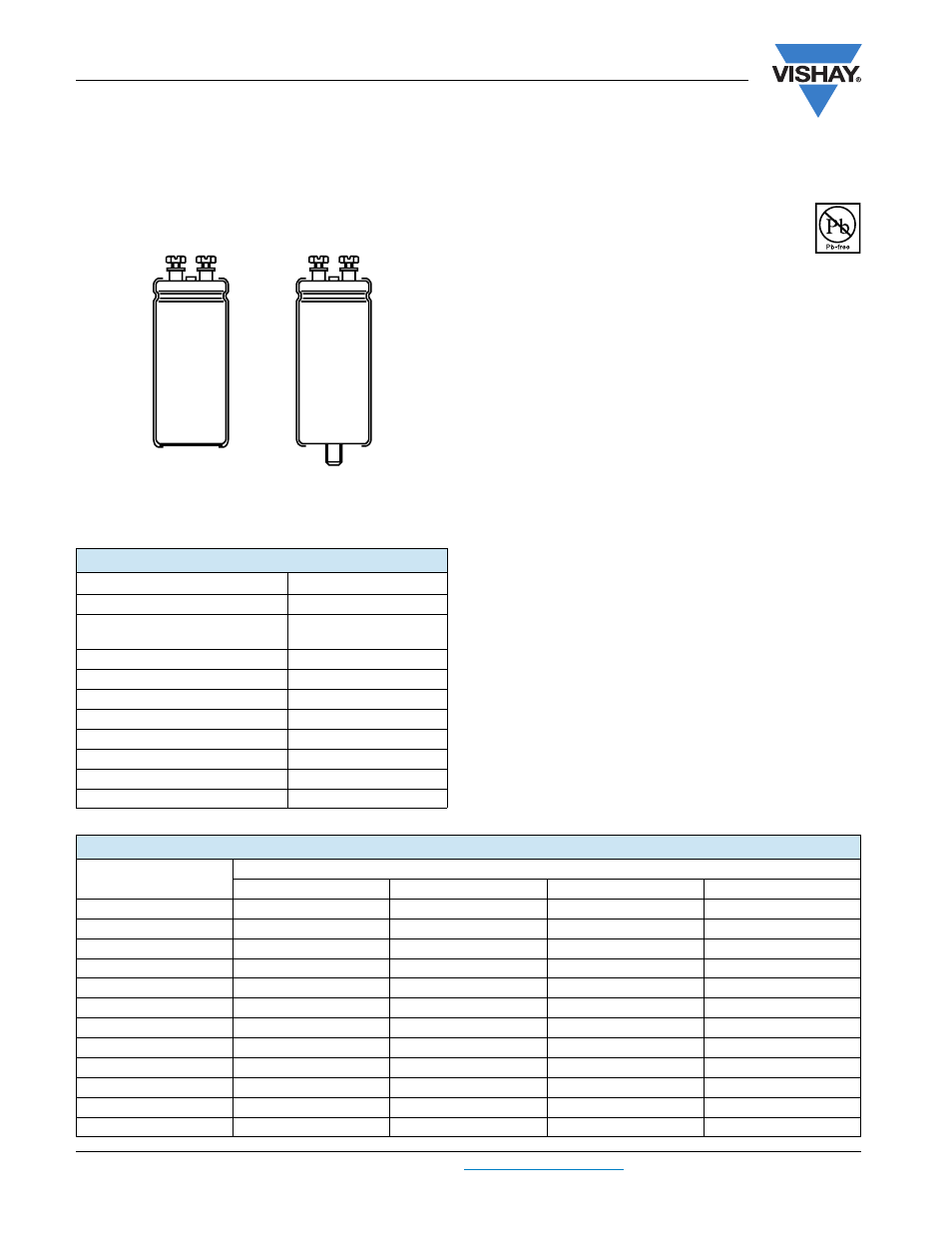

Fig.1 Component outlines
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
25 40 63 100
1000 - - - 35 x 60
1500 - - - 35 x 60
2200 - - 35 x 60 35 x 80
3300 - 35 x 60 35 x 60 35 x 105
4700 35 x 60 35 x 60 35 x 80 50 x 80
6800 35 x 60 35 x 80 35 x 105 50 x 105
10 000 35 x 80 35 x 105 50 x 80 65 x 105
15 000 35 x 105 50 x 80 50 x 105 65 x 105
22 000 50 x 80 50 x 105 65 x 105 76 x 105
33 000 50 x 105 65 x 105 65 x 105 76 x 146
47 000 65 x 105 65 x 105 76 x 105 76 x 220
68 000 65 x 105 76 x 105 76 x 146 90 x 220
