C&H Technology CM530813 - Manual (Page 2)

G1
K1
G2
K2
D
N
E
K
G
C H
M
B B
E F F
A
J
A1K2
K1
A1K2 A2
G1
K1
G2
K2
K1 A2 A1K2
.110 TAB
A1K2
(4 TYP.)
P - M8 THD
(2 TYP.)
L - DIA.
(4 TYP.)
Dimension Inches Millimeters
A 5.906 150
B 2.697±0.02 68.5±0.2
C 1.575 40
D 1.535 39
E 1.260 32
F 1.181 30
G 0.906 23
H 0.787 20
J 0.630 16
K 0.276 7
L 0.256±0.008 Dia. Dia. 6.5±0.2
M M8 Metric M8
*AIK2-AIK2 Connection made by external shorting bar.
Description:
Powerex Dual SCR
POW-R-BLOK™ Modules are
designed for use in applications
requiring phase control and
isolated packaging. The modules
are isolated for easy mounting
with other components on
common heatsinks.
POW-R-BLOK™ has been tested
and recognized by Underwriters
Laboratories (QQQX2 Power
Switching Semi-conductors).
Features:
Ⅺ Isolated Mounting
Ⅺ Glass Passivated Chips
Ⅺ Metal Baseplate
Ⅺ Low Thermal Impedance
Ⅺ UL Recognized A
Applications:
Ⅺ
Battery Supplies
Ⅺ
Bridge Circuits
Ⅺ
AC and DC Motor Control
Ⅺ
Tap Changers
Ⅺ
Lighting Control
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CM530813 is an
800 Volt, 130 Ampere Dual SCR
POW-R-BLOK™ Module.
Voltage Current Rating
Type Volts (x100) Amperes (x10)
CM53 08 13
S-33
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272 Dual SCR
POW-R-BLOK™ Modules
130 Amperes/800 Volts
CM530813

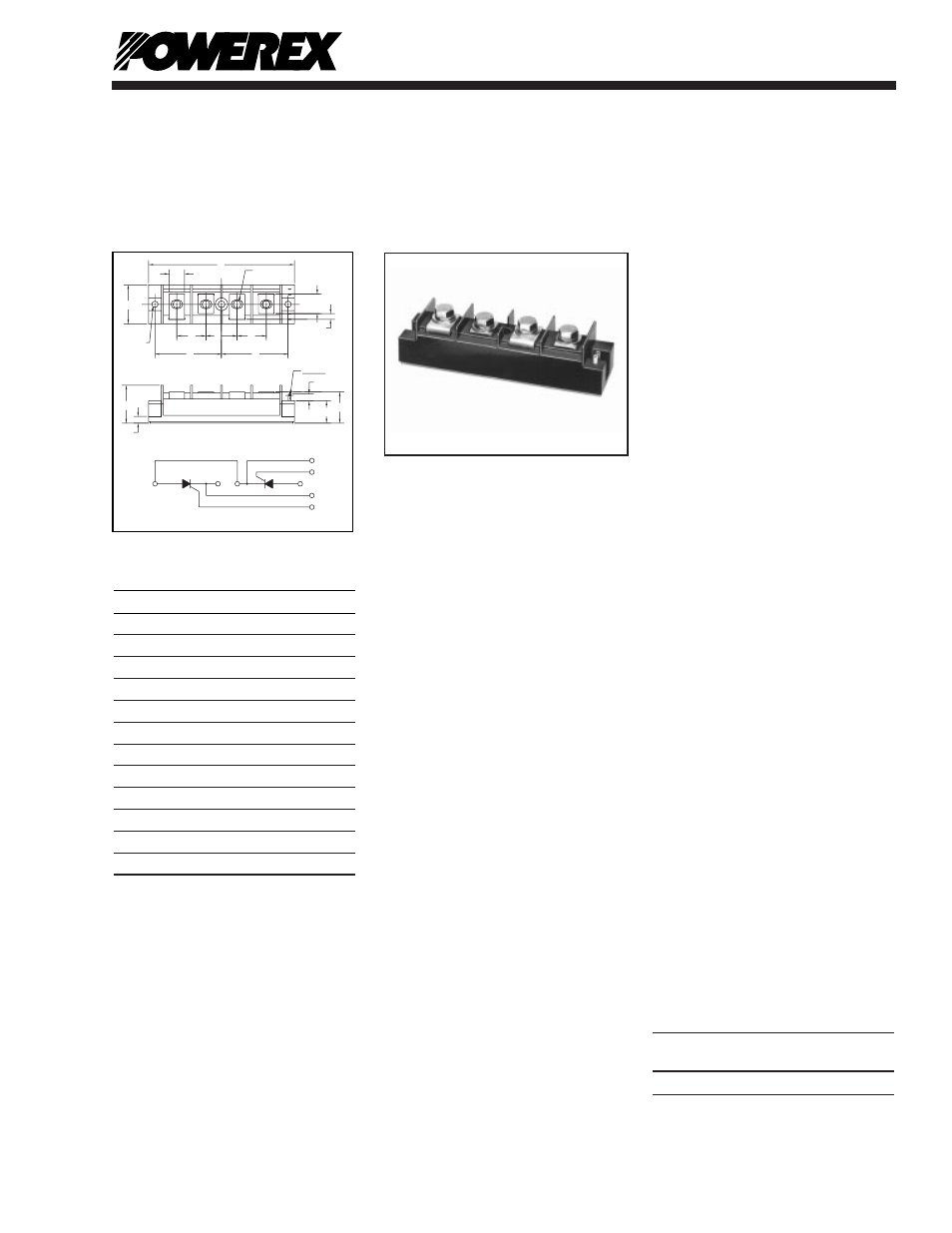

Outline Drawing
CM530813
Dual SCR POW-R-BLOK™ Modules
130 Amperes/800 Volts
A
