Document Number: 94351
For technical questions, contact: [email protected]
www.vishay.com
Revision: 05-May-08
1

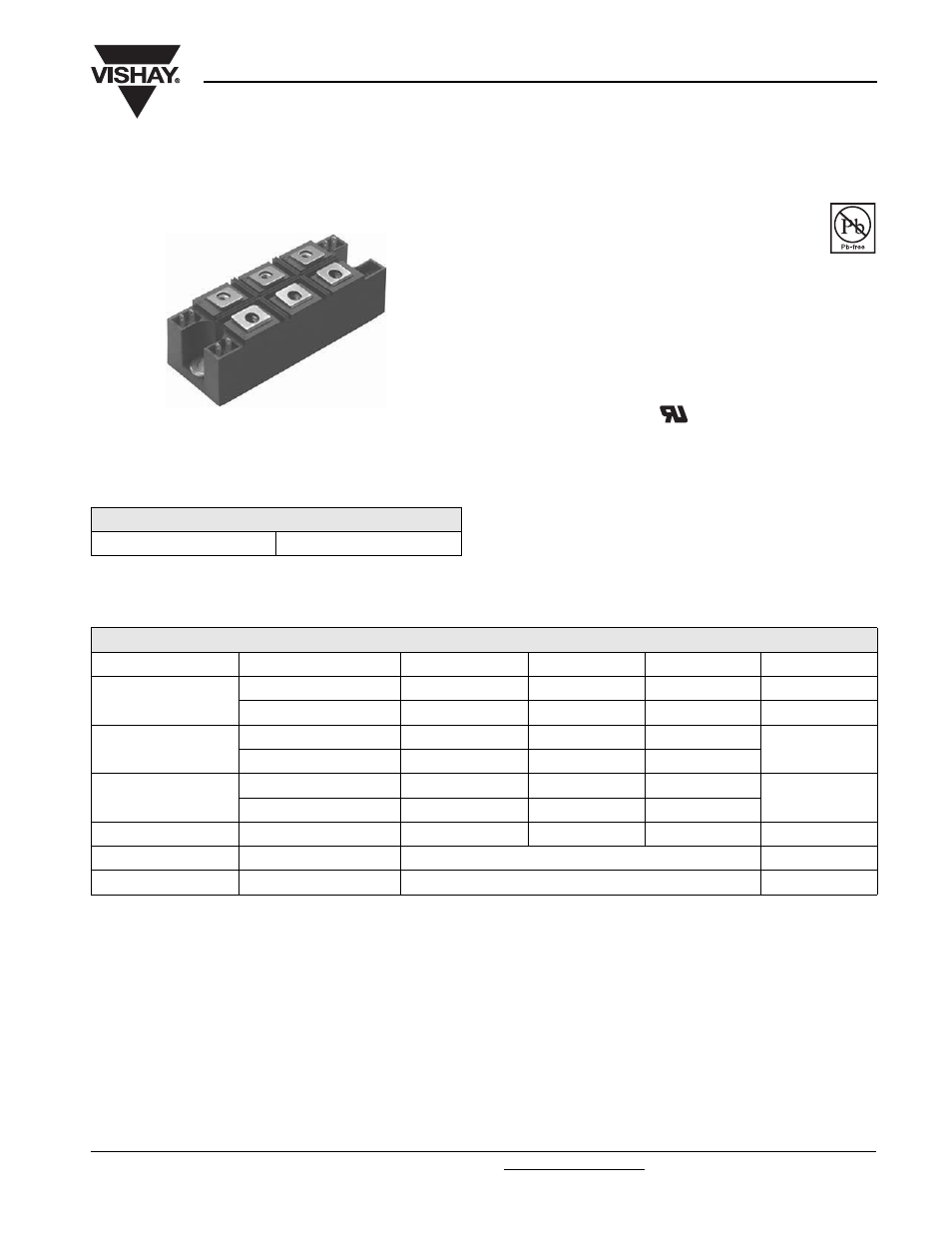

Three Phase AC Switch
(Power Modules), 50 A to 100 A
54-94-104MT..KPbF Series
Vishay High Power Products
FEATURES
• Package fully compatible with the industry
standard INT-A-PAK power modules series
• High thermal conductivity package, electrically
insulated case
• Outstanding number of power encapsulated components
• Excellent power volume ratio
• 4000 V
RMS
isolating voltage
• UL E78996 approved
• Totally lead (Pb)-free
• Designed and qualified for industrial level
DESCRIPTION
A range of extremely compact, encapsulated three phase AC
switches offering efficient and reliable operation. They are
intended for use in general purpose and heavy duty
applications as control motor starter.
PRODUCT SUMMARY
I
O
50 A to 100 A
MTK
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
CHARACTERISTICS
54MT.K
94MT.K
104MT.K
UNITS
I
O
50
90
100
A
T
C
80
80
80
°C
I
FSM
50 Hz
390
950
1130
A
60 Hz
410
1000
1180
I
2
t
50 Hz
770
4525
6380
A
2
s
60 Hz
700
4130
5830
I
2
√t
7700
45250
63800
A
2
√s
V
RRM
Range
800 to 1600
V
T
Stg
, T
J
Range
- 40 to 125
°C
