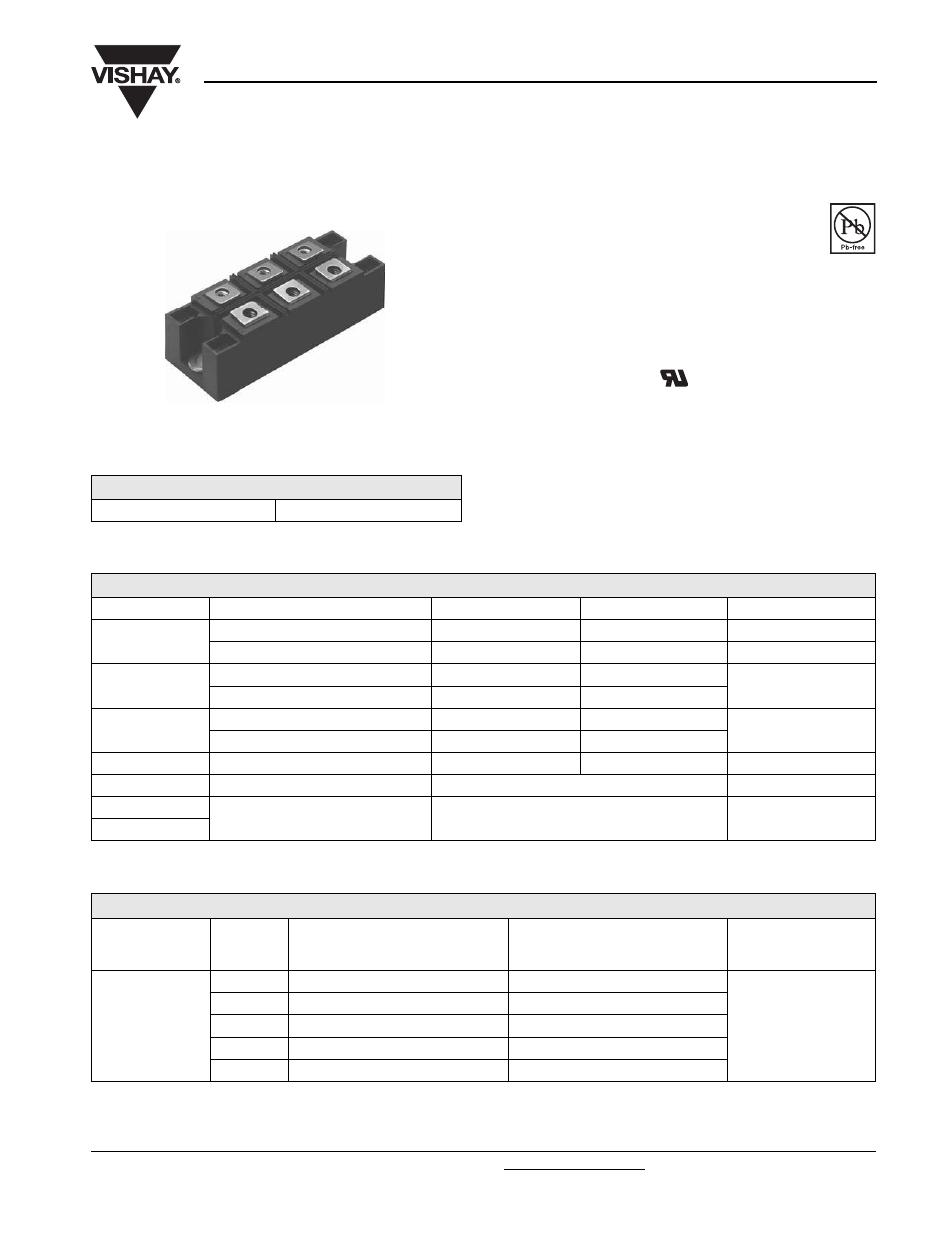

Three Phase Bridge
(Power Modules), 60/70 A
60-70MT..KPbF Series
Vishay High Power Products
FEATURES
• Package fully compatible with the industry
standard INT-A-PAK power modules series
• High thermal conductivity package, electrically
insulated case
• Excellent power volume ratio, outline for easy connections
to power transistor and IGBT modules
• 4000 V
RMS
isolating voltage
• UL E78996 approved
• Totally lead (Pb)-free
• Designed and qualified for industrial level
DESCRIPTION
A range of extremely compact, encapsulated three phase
bridge rectifiers offering efficient and reliable operation. They
are intended for use in general purpose and heavy duty
applications.
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
O
60/70 A
MTK
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS 60MT.K 70MT.K UNITS
I
O
60 (75) 70 (90) A
T
C
85 (61) 85 (57) °C
I
FSM
50 Hz 420 480
A
60 Hz 440 500
I 2 t
50 Hz 870 1150
kA 2 s
60 Hz 790 1050
I 2 √t 8700 11 500 kA 2 √s
V
RRM
Range 800 to 1600 V
T
Stg
Range - 40 to 150 °C
T
J
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
MAXIMUM
AT T
J
MAXIMUM
mA
60-70MT..K
80 800 900
10
100 1000 1100
120 1200 1300
140 1400 1500
160 1600 1700
