DO-205AB (DO-9) for 240U(R) Series

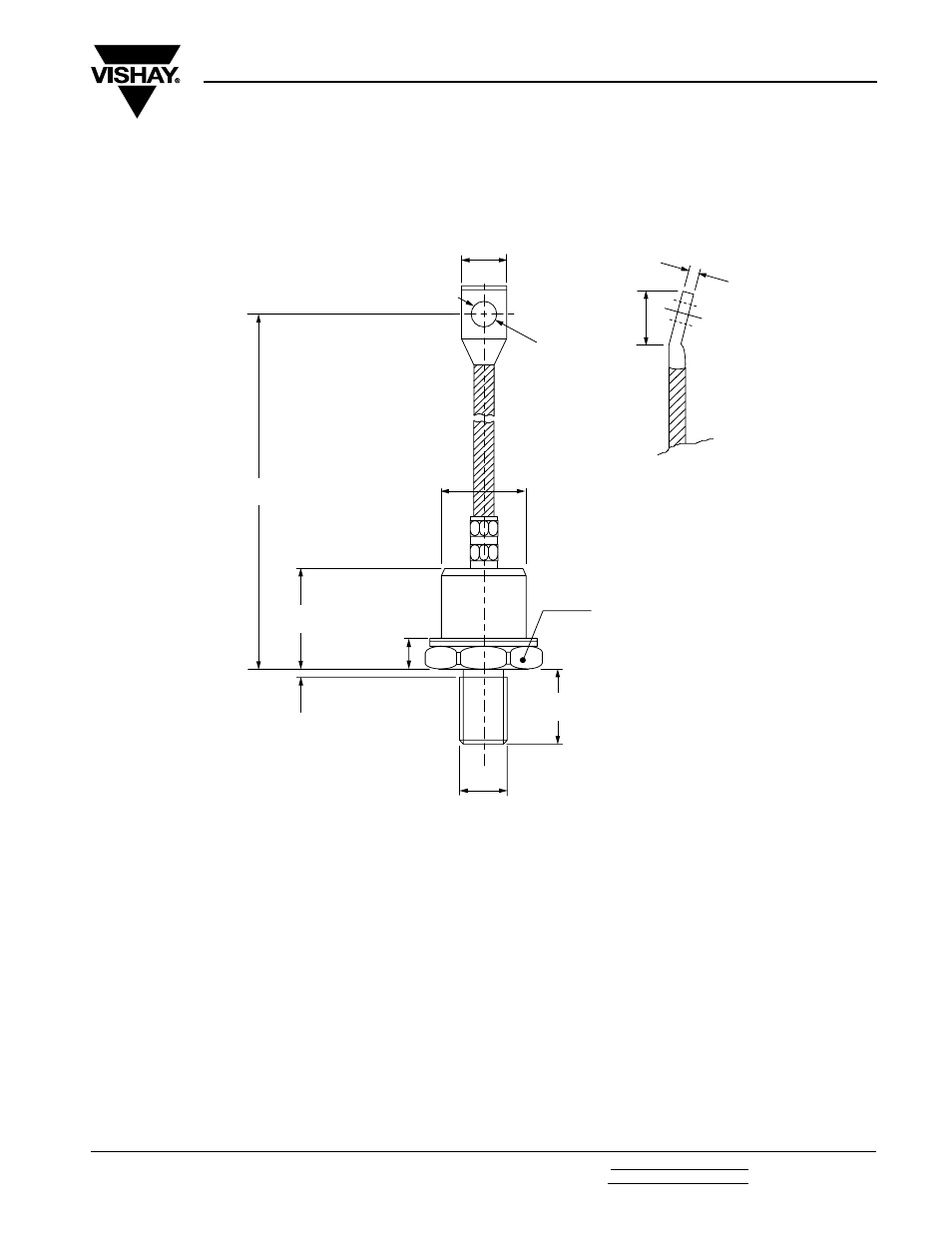

Outline Dimensions
Vishay High Power Products
DIMENSIONS in millimeters (inches)
Note
(1) For metric device M16 x 1.5 contact factory
190 (7.48) MAX.
19.2 (0.76) MAX.
Ш 8.9 (0.35)
Ш 8.4 (0.33)
53.3 (2.1) MAX.
3.18 (0.12) MAX.
Unthreaded portion
10 (0.39) MAX.
3/4"-16UNF-2A (1)
21 (0.82) MAX.
SW 32
Ø 27.9 (1.1) MAX.
23 (0.91) plone
MIN.
4.2 (0.17) MAX.
