Single IGBTMOD™
HVIGBT Module
1800 Amperes/1700 Volts
CM1800HCB-34N

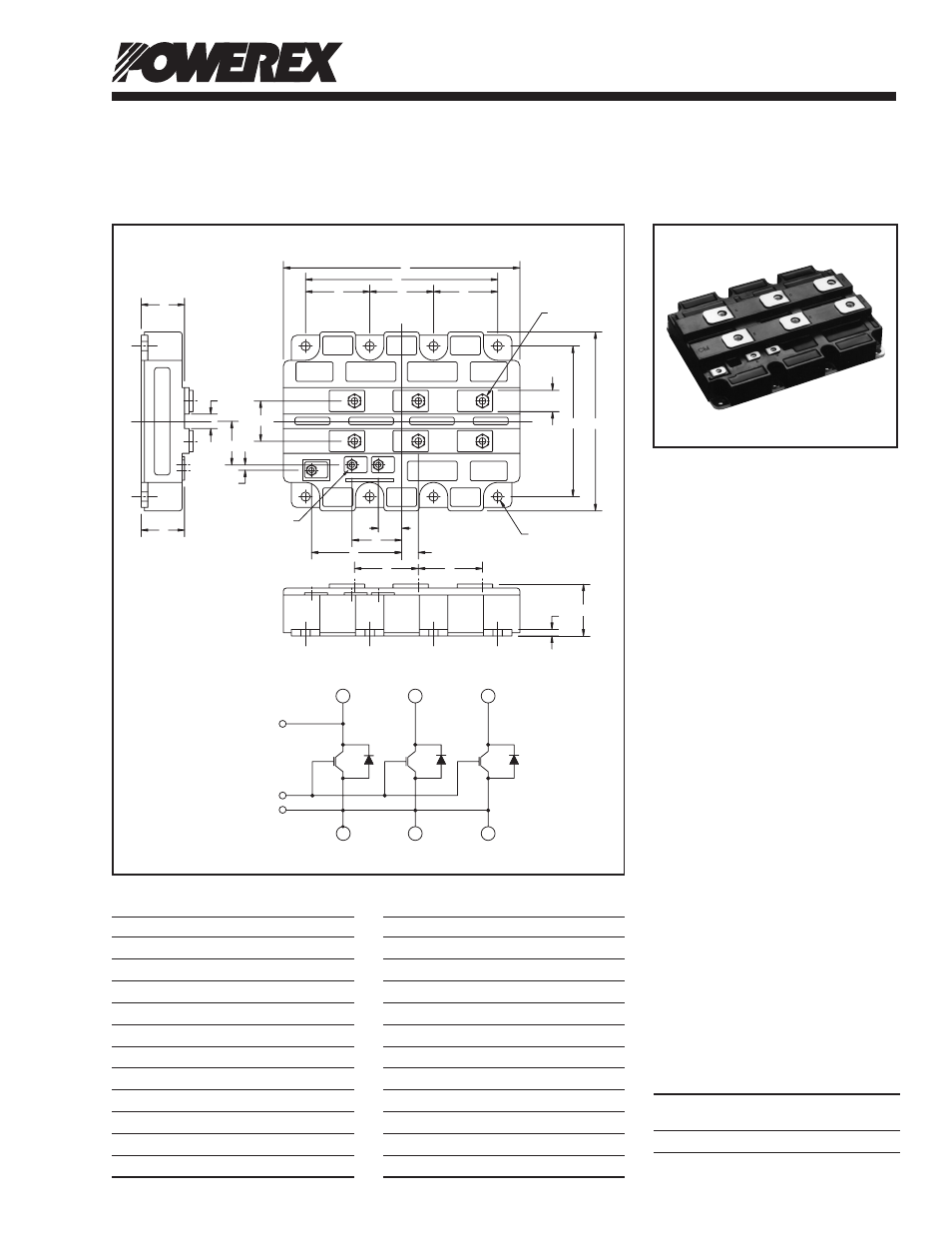

Outline Drawing and Circuit Diagram
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
1
12/08
Dimensions
Inches
Millimeters
A
7.48±0.02
190.0±0.5
B
5.51±0.02
140.0±0.5
C
1.50+0.04/-0.0 38.0+1.0/-0.0
D
6.73±0.004
171.0±0.1
E
4.88±0.004
124.0±0.1
F
1.57±0.008
40.0±0.2
G
0.79+0.04/-0.008 20.0+1.0/-0.2
H
0.80±0.008
20.25±0.2
J
1.62±0.012
41.25±0.3
K
3.13±0.012
79.4±0.3
L
2.24±0.004
57.0±0.1
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor in a
reverse-connected super-fast
recovery free-wheel diode.
All components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
£
Low Drive Power
£
Low V
CE(sat)
£
Super-Fast Recovery
Free-Wheel Diode
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
Traction
£
Medium Voltage Drives
£
High Voltage Power Supplies
Ordering Information:
Example: Select the complete
part module number you desire
from the table below -i.e.
CM1800HCB-34N is a 1700V
(V
CES
), 1800 Ampere Single
IGBTMOD™ Power Module.
Type
Current Rating
V
CES
Amperes
Volts
CM
1800
1700
Dimensions
Inches
Millimeters
M
0.51±0.008
13.0±0.2
N
2.42±0.012
61.5±0.3
P
0.59±0.008
15.0±0.2
Q
1.57±0.012
40.0±0.3
R
0.20±0.008
5.2±0.2
S
1.16±0.02
29.5±0.5
T
1.10+0.04/-0.0 28.0+1.0/-0.0
U
M4 Metric
M4
V
M8 Metric
M8
W
0.28±0.004 Dia. 7.0±0.1 Dia.
X
0.20±0.006
5.0±0.15
G
T
U NUTS
(3 TYP)
P
Q
S
A
D
L
L
L
V NUTS
(6 TYP)
B
W
(8 TYP)
H
J
K
M
N
N
X C
F
R
E
G
E
C
C
E
E
C
C
C
CM
E
G
E
C
E
E
C
C
E
