PowerTab TM

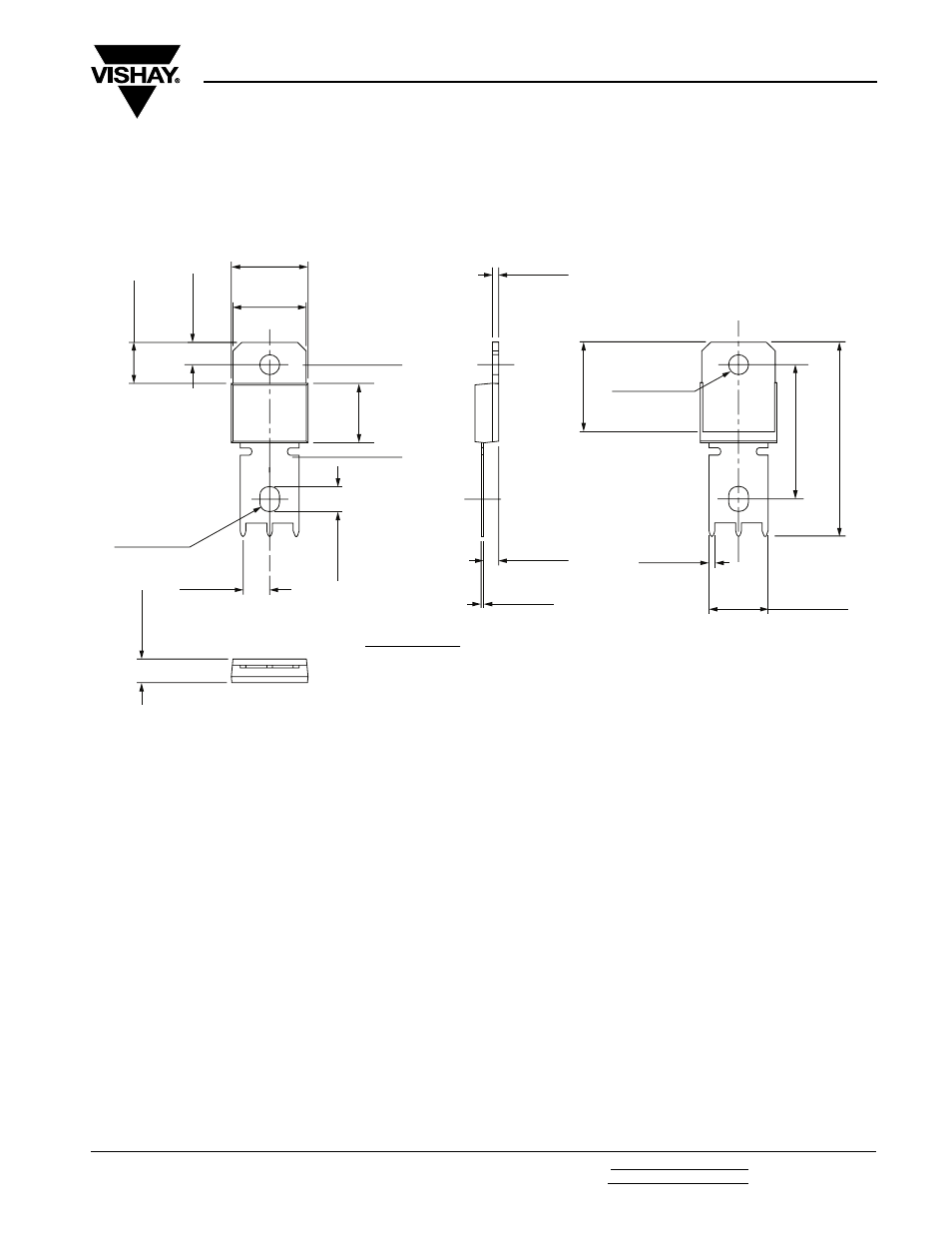

Outline Dimensions
Vishay High Power Products
DIMENSIONS in millimeters (inches)
15.90 (0.62)
15.60 (0.61)
4.20 (0.16) 4.00 (0.15)
4.95 (0.19) 4.75 (0.18)
5.20 (0.20) 4.95 (0.19)
18.25 (0.71) 18.00 (0.70)
27.65 (1.08) 27.25 (1.07)
39.8 (1.56) 39.6 (1.55)
12.40 (0.48) 12.10 (0.47)
8.45 (0.33) 8.20 (0.32)
15.60 (0.61)
14.80 (0.58)
5.45 REF.
(0.21 REF.)
1.30 (0.05)
1.10 (0.04) 3.09 (0.12)
3.00 (0.11)
1.35 (0.05)
1.20 (0.04)
0.60 (0.02)
0.40 (0.01)
12.20 (0.48)
12.00 (0.47)
Ш 4.20 (Ш 0.16)
Ш 4.00 (Ш 0.15)
Ш 4.20 (Ш 0.16)
Ш 4.00 (Ш 0.15)
Lead 1
Lead 2
Lead assignments
Lead 1 = Cathode
Lead 2 = Anode
