150EBU04
Vishay High Power Products Ultrafast Soft Recovery Diode,
150 A FRED Pt TM

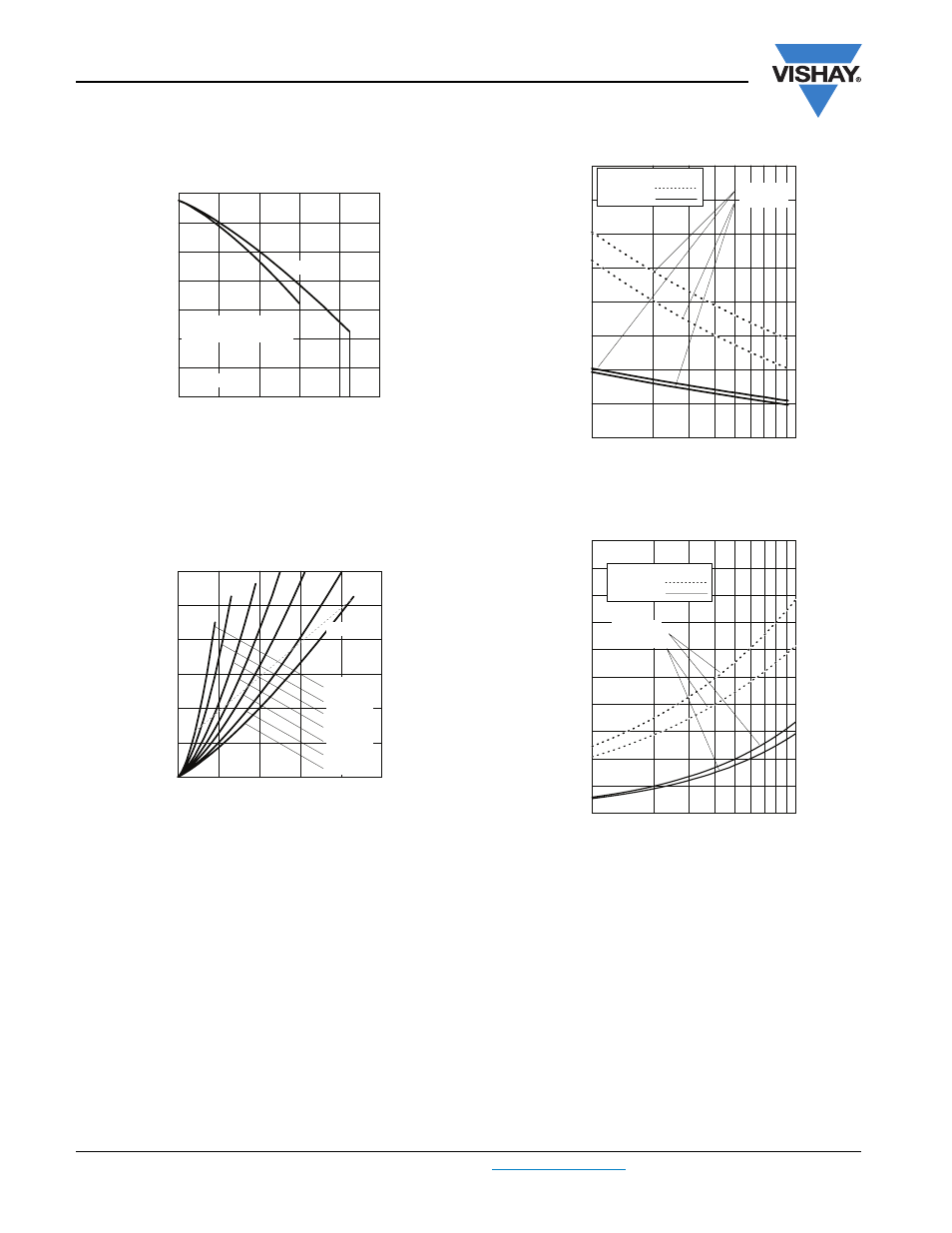

Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
Fig. 6 - Forward Power Loss Characteristics
Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
Note
(1) Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= Rated V
R
Average Forward Current - I F
(AV)
(A)
Allowable Case Temperature (°C)
40
60
80
100
120
140
160
180
0 50 100 150 200 250
DC
Square wave (D = 0.50)
Rated Vr applied
see note (1)
Average Power Loss ( Watts )
Average Forward Current - I F
(AV)
(A)
0
50
100
150
200
250
300
0 50 100 150 200 250
DC
RMS Limit
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
DC
trr ( ns )
di
F
/dt (A/µs )
50
100
150
200
250
0 0 0 1 0 0 1
IF = 150A
IF = 75A
Vr = 200V
Tj = 125˚C
Tj = 25˚C
Qrr ( nC )
di
F
/dt (A/µs )
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
0 0 0 1 0 0 1
IF = 150A
IF = 75A
Vr = 200V
Tj = 125˚C
Tj = 25˚C
