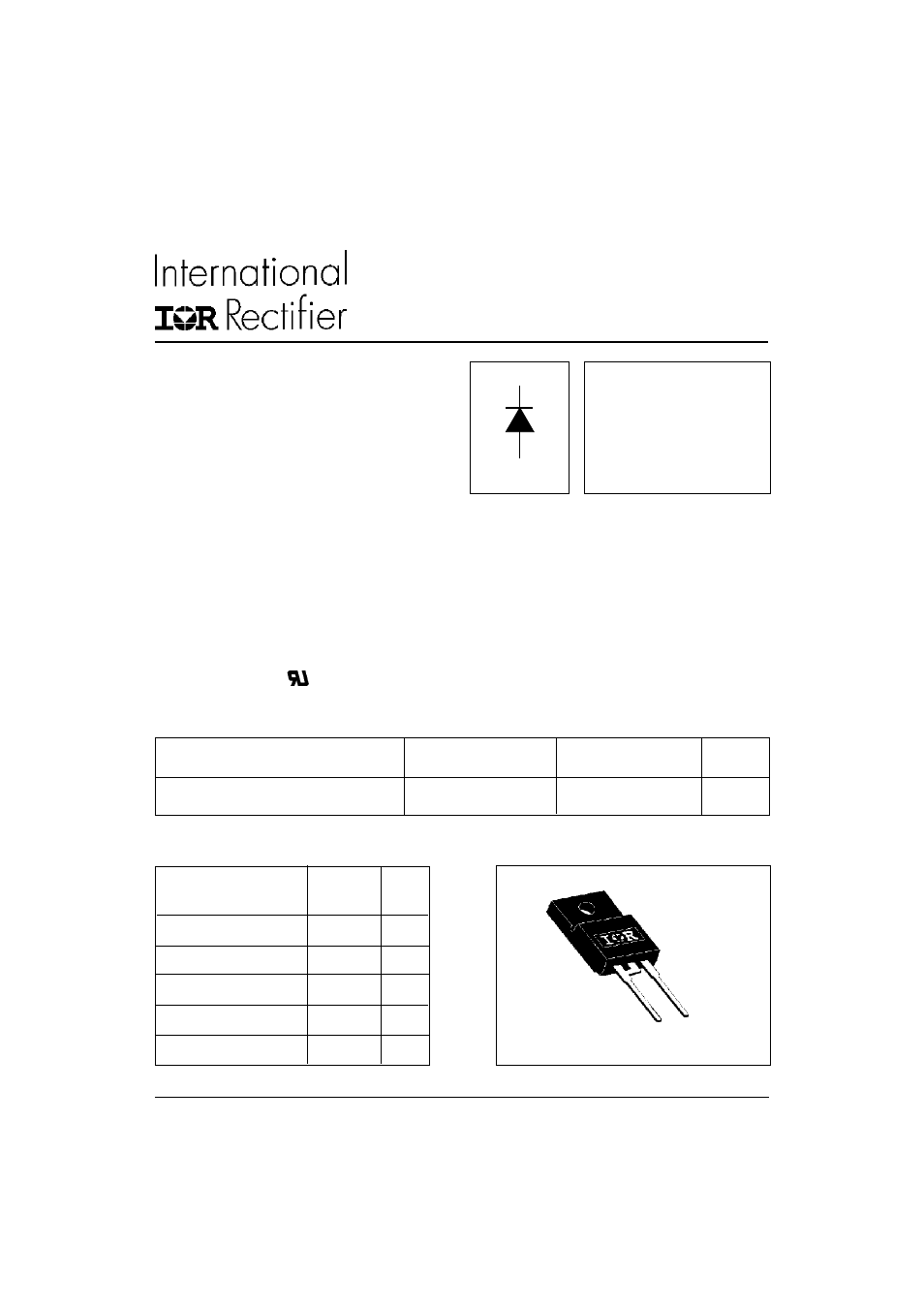

INPUT RECTIFIER DIODE
TO-220 FULLPAK
Preliminary Data Sheet I2142 rev. A 03/99
SAFE IR Series
10ETS..FP
V
F
< 1.1V @ 10A
I
FSM
= 200A
V
RRM
800 to 1600V
Major Ratings and Characteristics
Characteristics 10ETS..FP Units
I
F(AV)
Sinusoidal waveform 10 A
V
RRM
800 to 1600 V
I
FSM
200 A
V
F
@ 10 A, T
J
= 25°C 1.1 V
T
J
- 40 to 150 °C
TO-220AC FULLPAK Description/Features
The 10ETS..FP rectifier SAFE IR series has
been optimized for very low forward voltage
drop, with moderate leakage. The glass
passivation technology used has reliable
operation up to 150°C junction temperature.
Typical applications are in input rectification
and these products are designed to be used
with International Rectifier Switches and
Output Rectifiers which are available in
identical package outlines. Fully isolated
package (V
INS
= 2500 V
RMS
). UL E78996 approved
Capacitive input filter T
A
= 55°C, T
J
= 125°C
12.0 16.0 A
common heatsink of 1°C/ W
Output Current in Typical Applications
Applications Single-phase Bridge Three-phase Bridge Units
Package Outline
