Document Number: 28347
For technical questions, contact:
www.vishay.com
Revision: 07-Oct-09
157
Aluminum Capacitors
Power Long Life Printed Wiring
162/163 PLL-PW
Vishay BCcomponents
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Provided with keyed polarity
• Very long useful life: 5000 hours at 105 °C
• Low ESR, high ripple current capability
• Temperature range up to 105 °C
• High resistance to shock and vibration
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Computer, telecommunication and industrial systems
• Smoothing and filtering
• Standard and switched mode power supplies
• Energy storage in pulse systems
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in µF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• Polarity of the terminals and ‘-’ sign to indicate the
negative
terminal, visible from the top and/or side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
.
QUICK REFERENCE DATA
DESCRIPTION
VALUE
162
163
Nominal case size (Ø D x L in mm)
25 x 30 to 40 x 100
Rated capacitance range
(E6 series), C
R
470 µF to
150 000 µF
68 µF to
3300 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
10 V to 100 V 200 V to 400 V
Category temperature range
- 40 °C to + 105 °C
Endurance test at 105 °C
2000 hours
Useful life at 105 °C
5000 hours
Useful life at 40 °C,
1.9 x I
R
applied
150 000 hours
Shelf life at 0 V, 105 °C
500 hours
Based on sectional specification
IEC 60384-4/EN130300
Climatic category IEC 60068
40/105/56

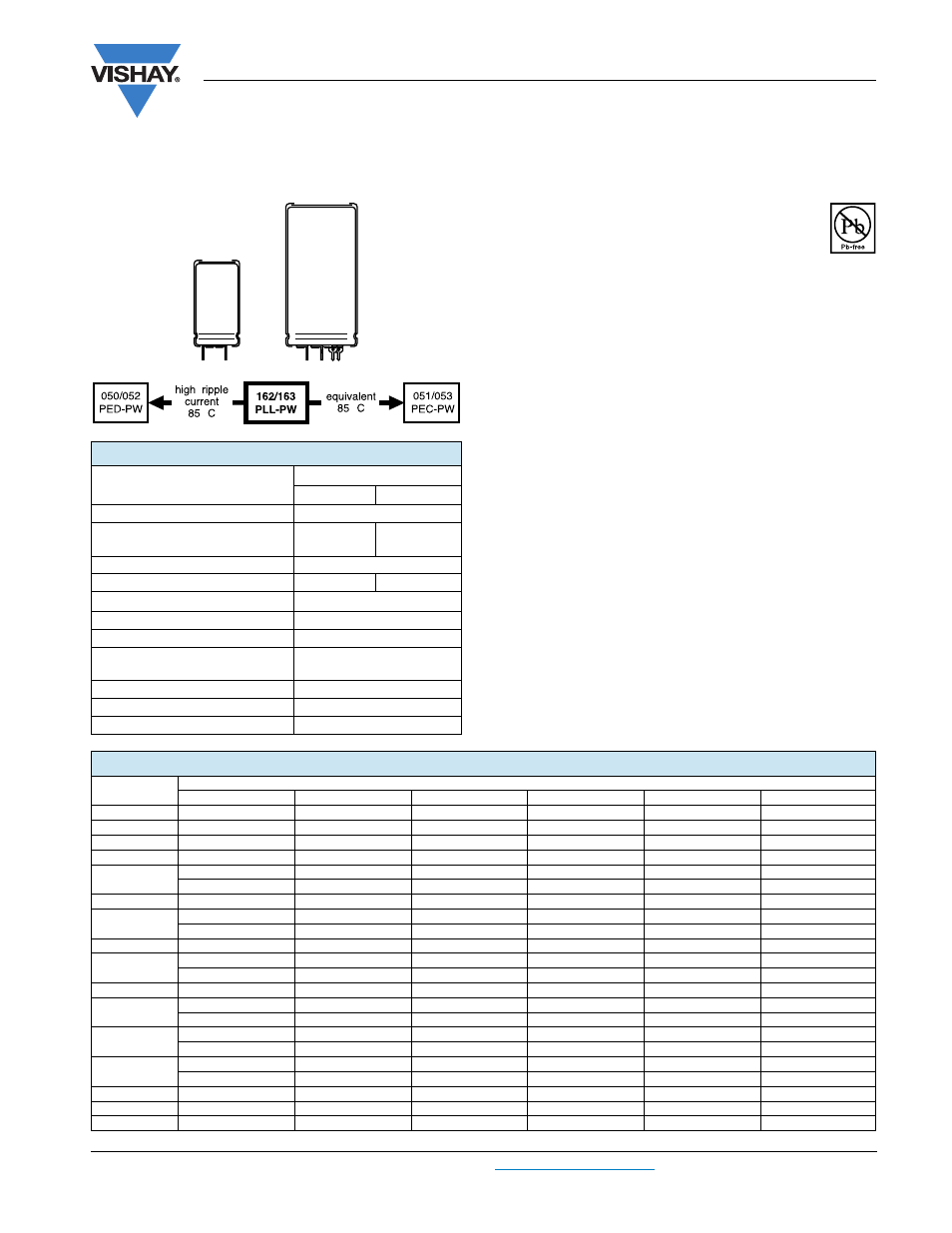

Fig.1 Component outlines
°
°
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES FOR 162 SERIES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
10
16
25
40
63
100
470
-
-
-
-
-
25 x 30
680
-
-
-
-
-
25 x 40
1000
-
-
-
-
25 x 30
30 x 40
1500
-
-
-
-
25 x 40
35 x 40
2200
-
-
-
25 x 30
30 x 40
35 x 50
-
-
-
-
-
40 x 40
3300
-
-
-
25 x 40
35 x 40
40 x 50
4700
-
-
25 x 30
30 x 40
35 x 50
40 x 70
-
-
-
-
40 x 40
-
6800
-
25 x 30
25 x 40
35 x 40
40 x 50
40 x 100
10 000
25 x 30
25 x 40
30 x 40
35 x 50
40 x 70
-
-
-
-
40 x 40
-
-
15 000
25 x 40
30 x 40
35 x 40
40 x 50
40 x 100
-
22 000
30 x 40
35 x 40
35 x 50
40 x 70
-
-
-
-
40 x 40
-
-
-
33 000
35 x 40
35 x 50
40 x 50
40 x 100
-
-
-
40 x 40
-
-
-
-
47 000
35 x 50
40 x 50
40 x 70
-
-
-
40 x 40
-
-
-
-
-
68 000
40 x 50
40 x 70
40 x 100
-
-
-
100 000
40 x 70
40 x 100
-
-
-
-
150 000
40 x 100
-
-
-
-
-
