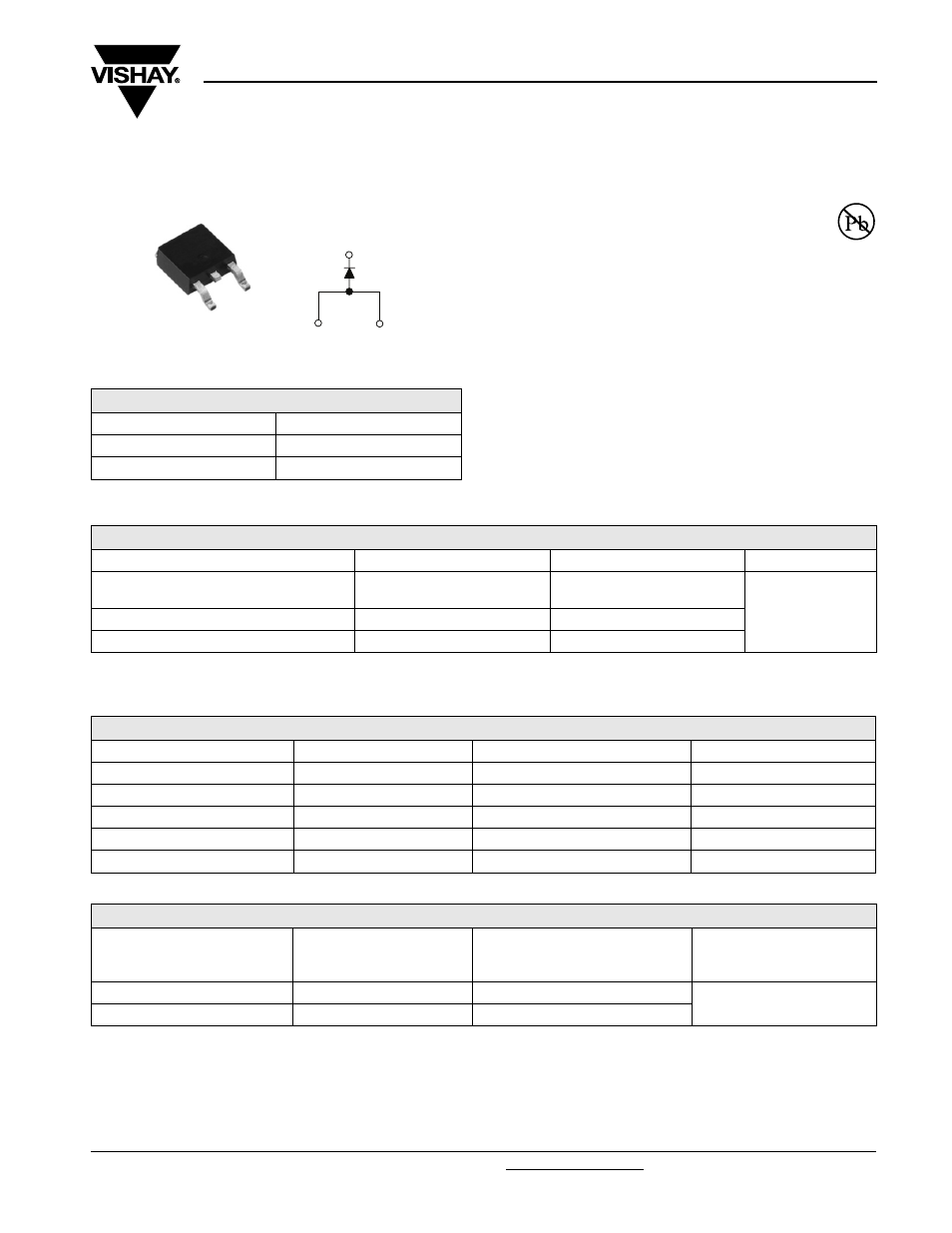

Surface Mountable
Input Rectifier Diode, 8 A
8EWS..SPbF High Voltage Series
Vishay High Power Products
DESCRIPTION/FEATURES
The 8EWS..SPbF rectifier High Voltage Series
has been optimized for very low forward
voltage drop, with moderate leakage. The glass
passivation technology used has reliable
operation up to 150 °C junction temperature.
The high reverse voltage range available allows design of
input stage primary rectification with outstanding voltage
surge capability.
Typical applications are in input rectification and these
products are designed to be used with Vishay HPP switches
and output rectifiers which are available in identical package
outlines.
This product has been designed and qualified for industrial
level and lead (Pb)-free.
Note
• T
A
= 55 °C, T
J
= 125 °C, footprint 300 mm 2
PRODUCT SUMMARY
V
F
at 5 A 1 V
I
FSM
200 A
V
RRM
800/1200 V
D-PAK Anode
1 3
Base
cathode
Anode
4, 2
Available
RoHS*
COMPLIANT
OUTPUT CURRENT IN TYPICAL APPLICATIONS
APPLICATIONS SINGLE-PHASE BRIDGE THREE-PHASE BRIDGE UNITS
NEMA FR-4 or G10 glass fabric-based epoxy
with 4 oz. (140 µm) copper
1.2 1.6
A
Aluminum IMS, R
thCA
= 15 °C/W 2.5 2.8
Aluminum IMS with heatsink, R
thCA
= 5 °C/W 5.5 6.5
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
F(AV)
Sinusoidal waveform 8 A
V
RRM
800/1200 V
I
FSM
200 A
V
F
8 A, T
J
= 25 °C 1.10 V
T
J
- 55 to 150 °C
VOLTAGE RATINGS
PART NUMBER
V
RRM
, MAXIMUM
PEAK REVERSE VOLTAGE
V
V
RSM
, MAXIMUM NON-REPETITIVE
PEAK REVERSE VOLTAGE
V
I
RRM
AT 150 °C
mA
8EWS08SPbF 800 900
0.5
8EWS12SPbF 1200 1300
* Pb containing terminations are not RoHS compliant, exemptions may apply
