Dual igbtmod™ h-series module – C&H Technology CM200DY-28H User Manual
Page 2
285
Dual IGBTMOD™
H-Series Module
200 Amperes/1400 Volts
CM200DY-28H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

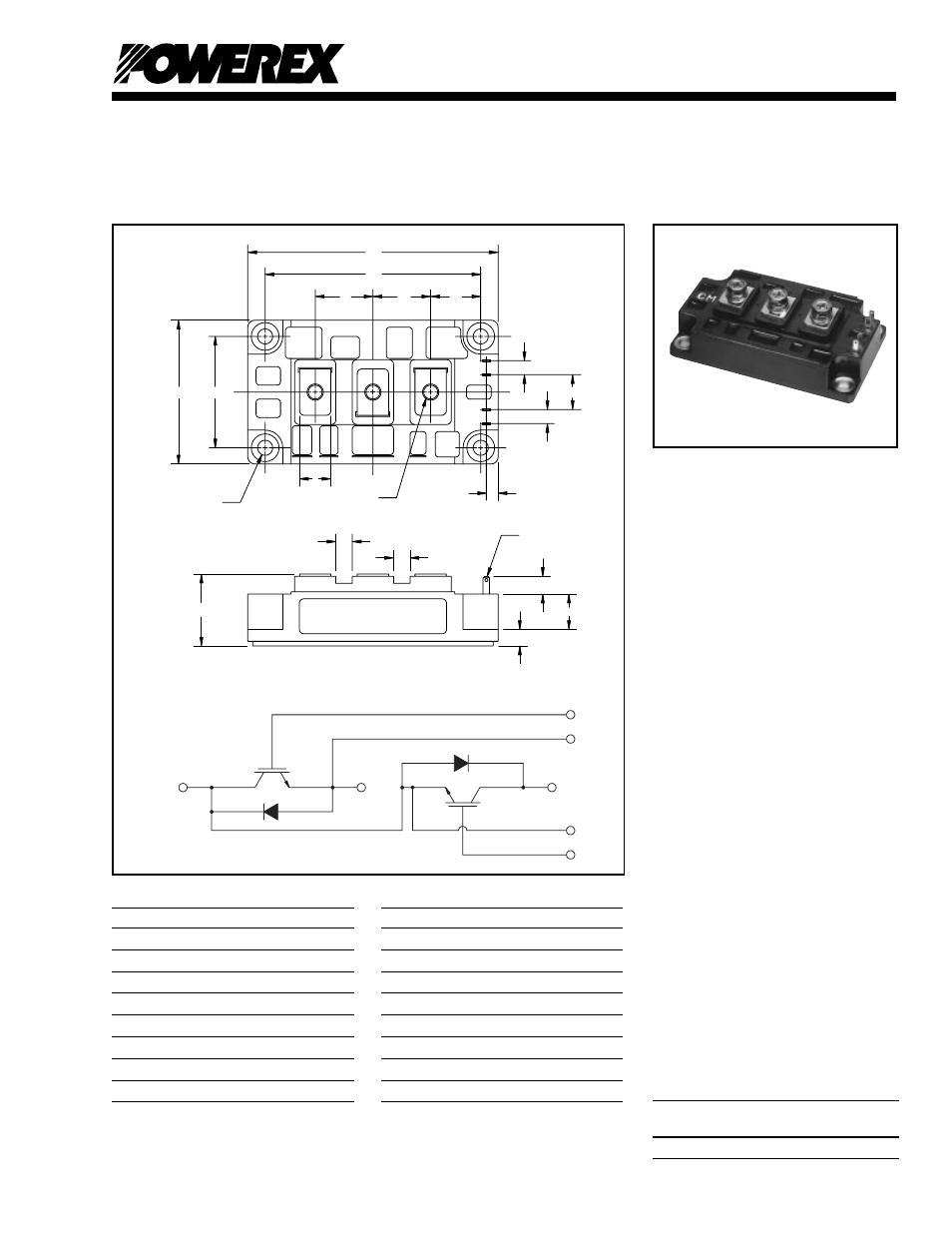

Outline Drawing and Circuit Diagram
Dimensions
Inches
Millimeters
A
4.25
108.0
B
3.66
±
0.01
93.0
±
0.25
C
2.44
62.0
D
1.89
±
0.01
48.0
±
0.25
E
1.22 Max.
31.0 Max.
F
0.98
25.0
G
0.85
21.5
H
0.60
15.2
Dimensions
Inches
Millimeters
J
0.59
15.0
K
0.55
14.0
L
0.30
8.5
M
0.28
7.0
N
0.256 Dia.
Dia. 6.5
P
0.24
6.0
Q
M6 Metric
M6
R
0.20
5.0
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of two IGBT Transistors in a
half-bridge configuration with each
transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
□
Low Drive Power
□
Low V
CE(sat)
□
Discrete Super-Fast Recovery
(135ns) Free-Wheel Diode
□
High Frequency Operation
(20-25kHz)
□
Isolated Baseplate for Easy
Heat Sinking
Applications:
□
AC Motor Control
□
Motion/Servo Control
□
UPS
□
Welding Power Supplies
□
Laser Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from
the table below -i.e. CM200DY-28H
is a 1400V (V
CES
), 200 Ampere
Dual IGBTMOD™ Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 50)
CM
200
28
E1
C1
E2
G1
E2
G2
C2E1
A
B
F
F
G
D
C
K
J
P
P
R
C2E1
C1
E2
G1
N - DIA.
(4 TYP.)
E1
E2
G2
Q - M6 THD
(3 TYP.)
M
M
E
M
H
L
.110 TAB
