Dual IGBTMOD™
H-Series Module
300 Amperes/1200 Volts
CM300DY-24H

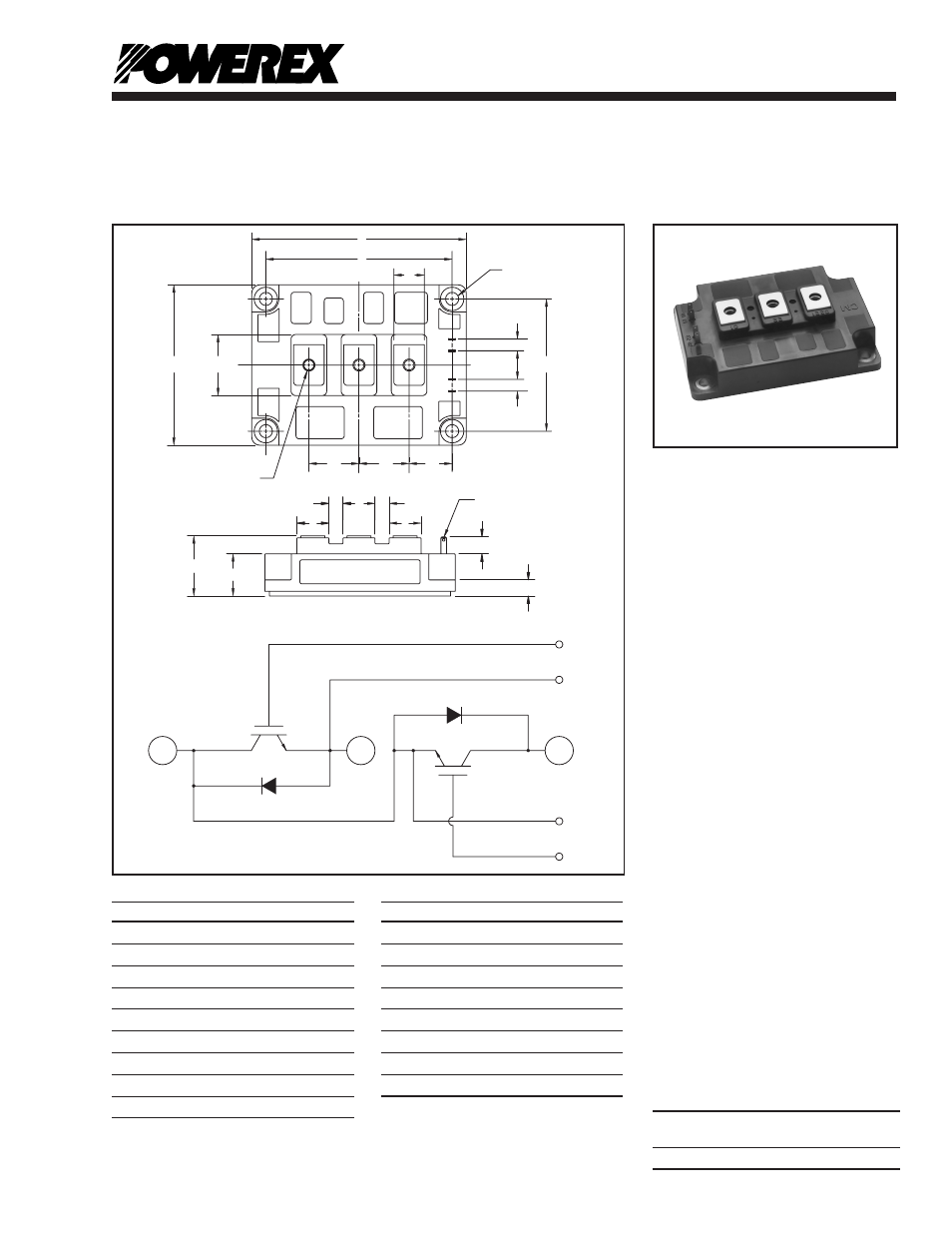

Outline Drawing and Circuit Diagram
Rev. 5/07
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
M
E
Q
A
N
K
N
K
N
B
G
J
C
F
R
R
G
D
H
L
.110 TAB
K
P - DIA.
(4 TYP.)
C2E1
E1
G1
E2
G2
E2
C1
S - M6 THD.
(3 TYP)
G2
E2
C2E1
E1
G1
E2
C1
Dimensions
Inches
Millimeters
A
4.33
110.0
B
3.661±0.01
93.0±0.25
C
3.15
80.0
D
2.441±0.01
62.0±0.25
E
1.18 Max.
30.0 Max.
F
1.18
30.0
G
0.98
25.0
H
0.85
21.5
J
0.83
21.2
Dimensions
Inches
Millimeters
K
0.71
18.0
L
0.59
15.0
M
0.55
14.0
N
0.28
7.0
P
0.26 Dia.
Dia. 6.5
Q
0.33
8.5
R
0.24
6.0
S
M6 Metric
M6
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of two IGBT Transistors in a
half-bridge configuration with each
transistor having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
£
Low Drive Power
£
Low V
CE(sat)
£
Discrete Super-Fast Recovery
(135ns) Free-Wheel Diode
£
High Frequency Operation
(20-25kHz)
£
Isolated Baseplate for Easy
Heat Sinking
Applications:
£
AC Motor Control
£
Motion/Servo Control
£
UPS
£
Welding Power Supplies
£
Laser Power Supplies
Ordering Information:
Example: Select the complete part
module number you desire from the
table below -i.e. CM300DY-24H is
a 1200V (V
CES
), 300 Ampere Dual
IGBTMOD™ Power Module.
Type
Current Rating
V
CES
Amperes
Volts (x 50)
CM
300
24
