Document Number: 28392 For technical questions, contact: [email protected] www.vishay.com
Revision: 08-Aug-08 1
Aluminum Capacitors
Power Long Life 4-Terminal Snap-In
096 PLL-4TSI
Vishay BCcomponents
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Pressure relief on the side of the aluminum case
• Very long useful life: 5000 hours at 85 °C
• Temperature range up to 85 °C
• Keyed polarity
• Low ESR, high ripple current capability
APPLICATIONS
• Telecommunication and industrial systems
• Smoothing and filtering applications
• Switched mode power supplies
• Renewable energy power converters
• Energy storage in pulse systems
• For excellent mounting stability
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in µF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• ‘−’ sign to identify the negative terminal, visible from the top
and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
QUICK REFERENCE DATA
DESCRIPTION VALUE
Nominal case size
(D x L in mm) 35 x 50
to 45 x 100
Rated capacitance range C
R
390 to 2700 µF
Tolerance on C
R
± 20 %
Rated voltage range, U
R
350 to 500 V
Category temperature range - 40 to + 85 °C
Endurance test at 85 °C 2000 hours
Useful life at 85 °C 5000 hours
Useful life at 40 °C,
1.4 x I
R
applied
200 000 hours
Shelf life at 0 V, 85 °C 1000 hours
Based on sectional
specification
IEC 60384-4/EN130300
Climatic category IEC 60068 40/085/56
096 longer life 095

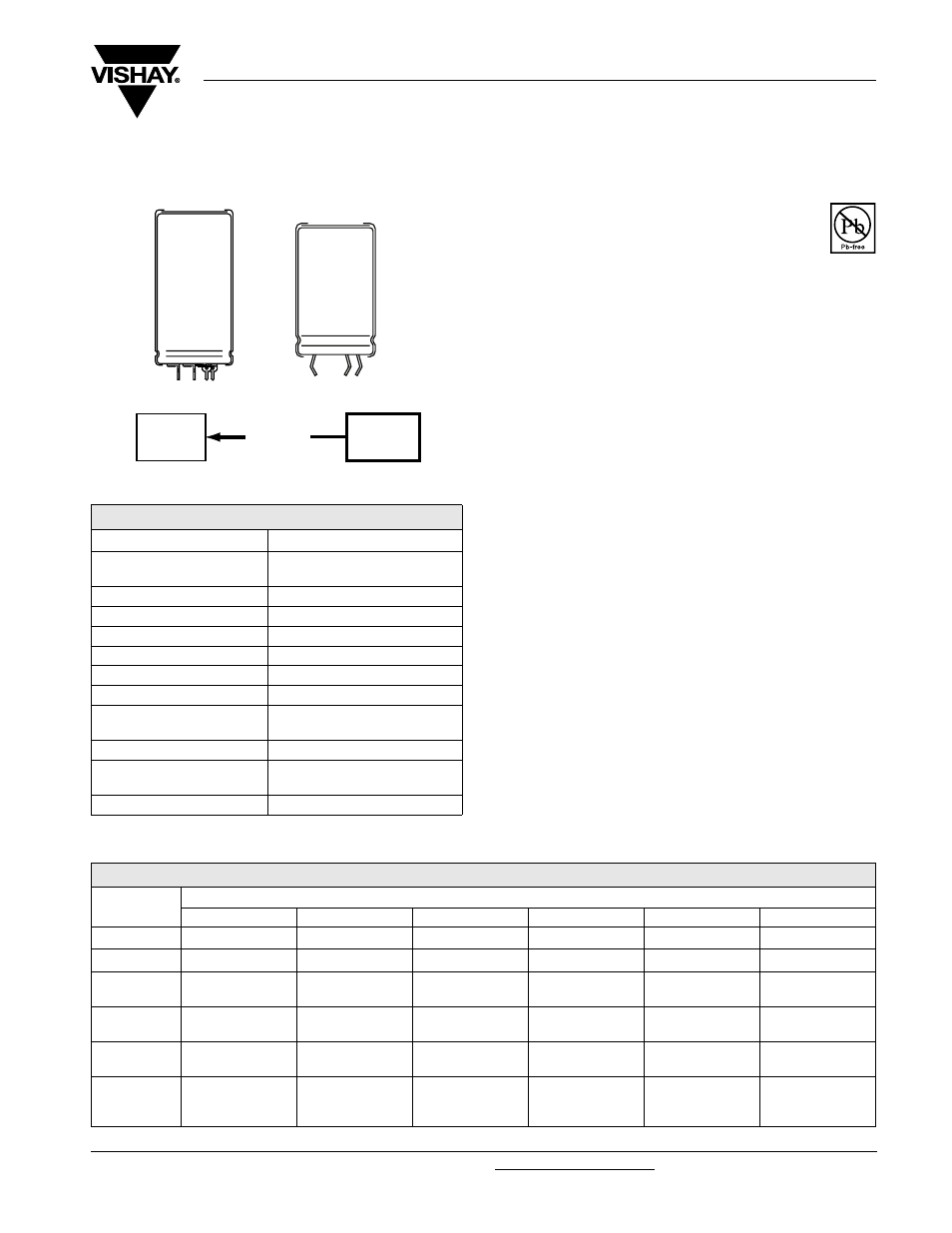

Fig.1 Component outlines
RoHS
COMPLIANT
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (Ø D x L in mm)
C
R
(µF)
U
R
(V)
350 385 400 420 450 500
390 35 x 60
470 35 x 70
560 35 x 60
35 x 70
40 x 60
680
35 x 50
40 x 50 35 x 60
40 x 50 35 x 60
40 x 50 35 x 70
40 x 50 35 x 80
40 x 70
820
35 x 50
40 x 40 35 x 60
40 x 50 35 x 60
40 x 50 35 x 70
40 x 60 35 x 80
40 x 60 35 x 100
40 x 80
1000
35 x 60
40 x 50 35 x 70
40 x 60
35 x 70
40 x 60
45 x 50
35 x 80
40 x 60
35 x 100
40 x 70
45 x 60
40 x 100
45 x 70
