365

Trench Gate Design
Single IGBTMOD™

450 Amperes/250 Volts

CM450HA-5F

Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

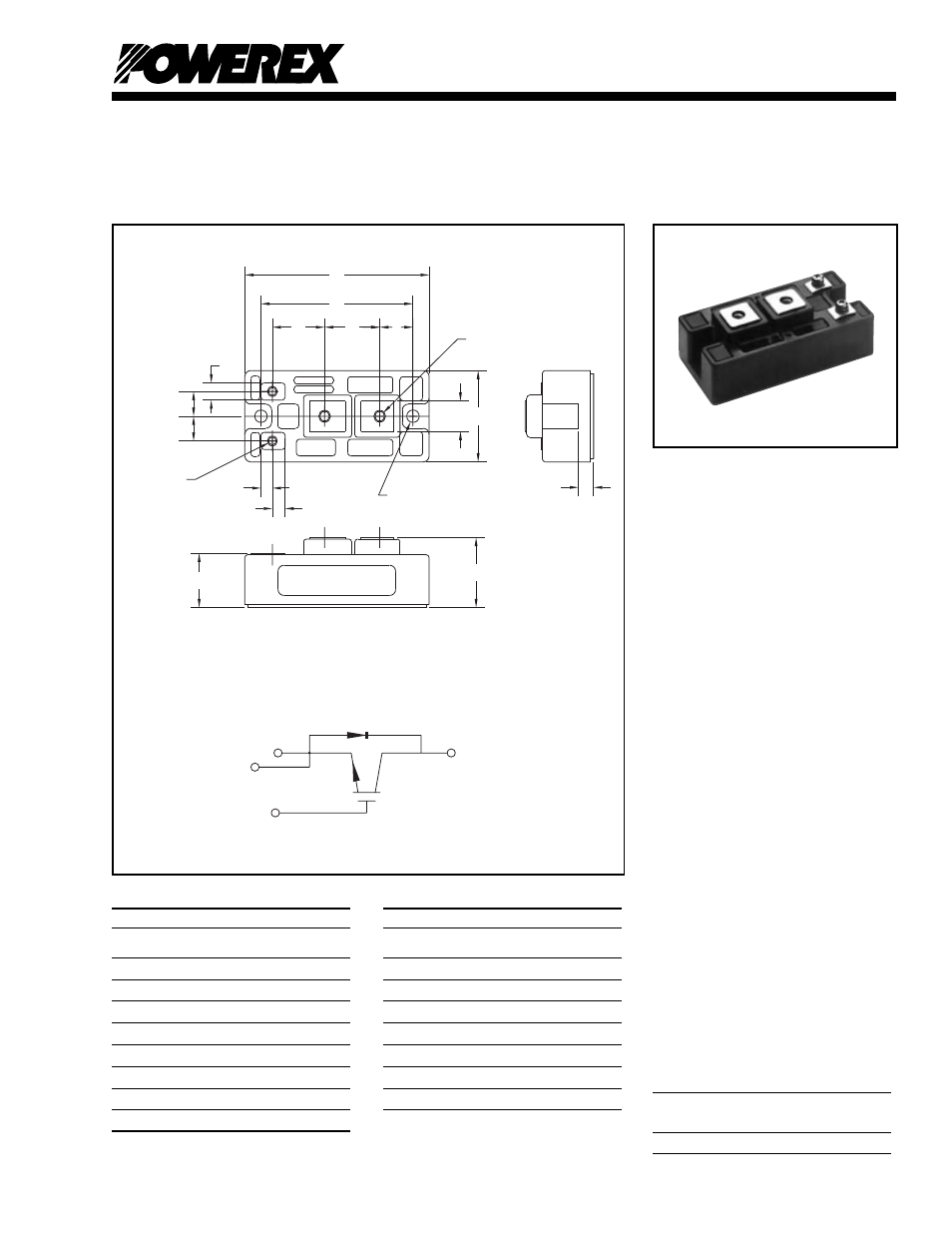

Outline Drawing and Circuit Diagram

Dimensions

Inches

Millimeters

A

3.82

97.0

B

3.15

80.0

C

0.69

17.5

D

1.14

29.0

E

1.04

26.5

F

1.89

48.0

G

0.63

16.0

H

0.24

6.0

J

0.26

6.7

Dimensions

Inches

Millimeters

K

1.14

29.0

L

1.42

36.0

M

0.28

7.0

N

0.26

6.5

P

M4 Metric

M4

Q

M6 Metric M6

R

0.51

13.0

S

0.35

9.0

Description:

Powerex IGBTMOD™ Modules

are designed for use in switching

applications. Each module consists

of one IGBT Transistor in a single

configuration, with a reverse

connected super-fast recovery

free-wheel diode. All components

and interconnects are isolated

from the heat sinking baseplate,

offering simplified system assem-

bly and thermal management.

Features:

□ Low Drive Power
□ Low V

CE(sat)

□ Discrete Super-Fast Recovery

Free-Wheel Diodes

□ High Frequency Operation

(20-25 kHz)

□ Isolated Baseplate for Easy

Heat Sinking

Applications:

□ DC Chopper

□ UPS

□ Forklift

Ordering Information:

Example: Select the complete

nine digit module part number you

desire from the table below - i.e.

CM450HA-5F is a 250V (V

CES

),

450 Ampere Single IGBTMOD™

Power Module.

Current Rating

V

CES

Type

Amperes

Volts (x 50)

CM

450

5

LABEL

A

B

D

E

F

G

H

J

K

L

M

(2 TYP.)

E

G

E

C

N - DIA.

(2 TYP.)

Q - THD.

C

G

E

E

R

R

S

P - THD.

(2 TYP.)

C
