110 Amp
113CNQ
100A SERIES
Bulletin PD-20631 rev. B 02/03
I
F(AV)
Rectangular 110 A
waveform
V
RRM
100 V
I
FSM
@ tp = 5 µs sine 7000 A
V
F
@ 55 Apk, T
J
= 125°C 0.67 V
(per leg)
T
J
range - 55 to 175 °C
Major Ratings and Characteristics
Characteristics 113CNQ Units
The 113CNQ 100A center tap Schottky rectifier module series
has been optimized for low reverse leakage at high tempera-
ture. The proprietary barrier technology allows for reliable
operation up to 175 °C junction temperature. Typical applica-
tions are in switching power supplies, converters, free-wheeling
diodes, and reverse battery protection.
175 °C T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
New fully transfer-mold low profile, small
footprint, high current package
Description/Features
SCHOTTKY RECTIFIER
New GenIII D-61 Package

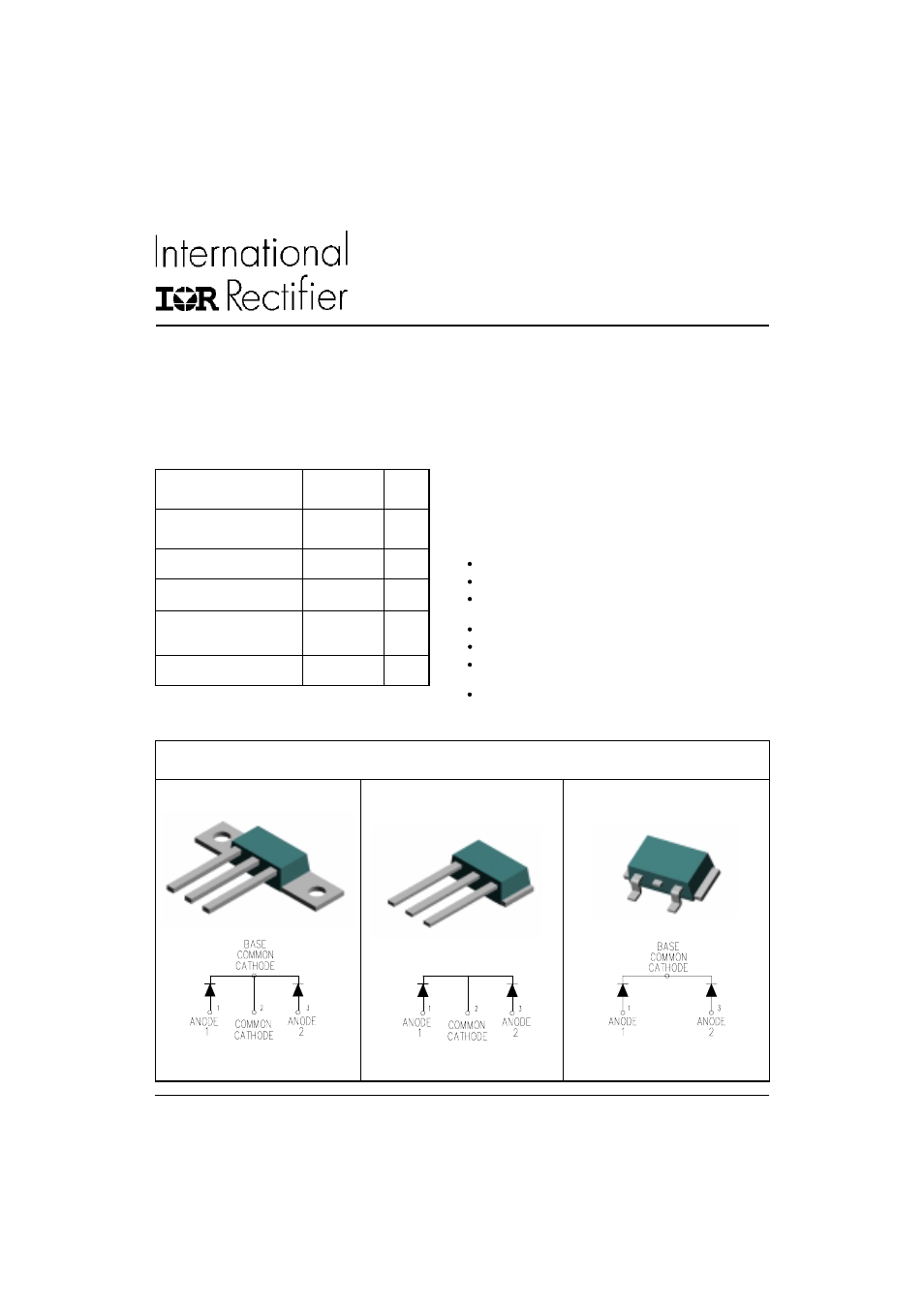

Case Styles
D61-8
113CNQ 100A 113CNQ100ASM 113CNQ100ASL
D61-8-SM D61-8-SL
