Mega Power
Dual IGBTMOD™
1400 Amperes/1200 Volts
CM1400DUC-24NF
1
01/10 Rev. 0
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
www.pwrx.com

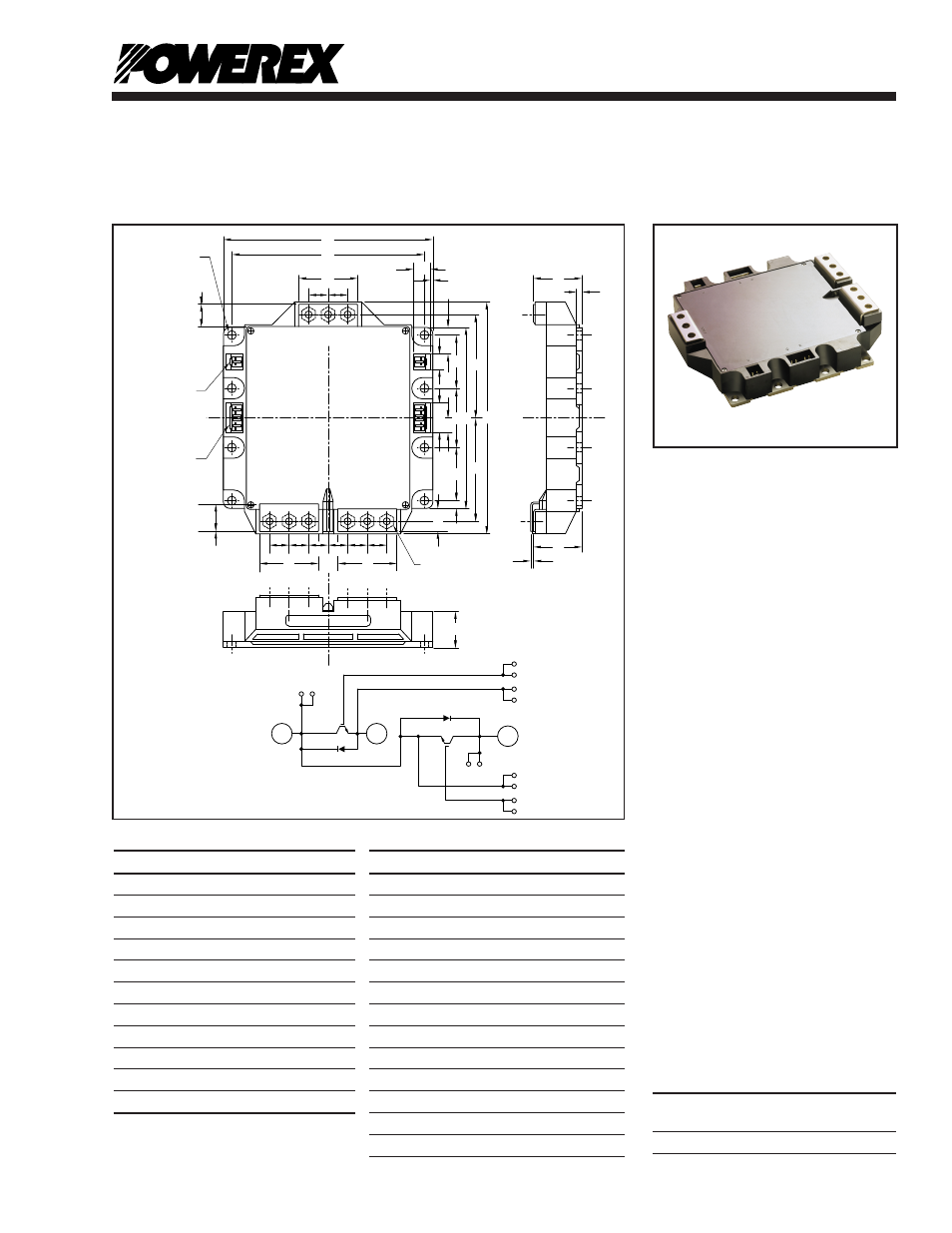

Outline Drawing and Circuit Diagram
A
D
P
(8 PLACES)
L
L
M
H H
H
H
H
H
K
G
U
H H
E
F
F
E2
C2
C2E1
C1
G2
E1
E2
G1
C1
V
BB
CC
B
C
J
J
G
G
R (9 PLACES)
C2E1
E2
G2
E2
E1
G1
C2
Tr2
Di2
Di1
LABEL
U
W
S
N
X
Y
Z
AA
C1
C1
T
Tr1
Description:
Powerex Mega Power Dual (MPD)
Modules are designed for use in
switching applications. Each
module consists of two IGBT
Transistors having a reverse-
connected super-fast recovery
free-wheel diode. All components
and interconnects are isolated
from the heat sinking baseplate,
offering simplified system assembly
and thermal management.
Features:
£
Low Drive Power
£
Low V
CE(sat)
£
Discrete Super-Fast Recovery
Free-Wheel Diode
£
Isolated Baseplate for Easy
Heatsinking
£
RoHS Compliant
Applications:
£
High Power DC Power Supply
£
Large DC Motor Drives
£
Utility Interface Inverters
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM1400DUC-24NF
is a 1200V (V
CES
), 1400 Ampere
Dual IGBTMOD Power
Module.
Current Rating
V
CES
Type
Amperes
Volts (x 50)
CM
1400
24
Dimensions
Inches
Millimeters
M
0.075±0.008
1.9±0.2
N
0.47
12.0
P
0.26
6.5
R
M6 Metric
M6
S
0.08
2.0
T
0.99
25.1
U
0.62
15.7
V
0.71
18.0
W
0.75
19.0
X
0.43
11.0
Y
0.83
21.0
Z
0.41
10.5
AA
0.22
5.5
Dimensions
Inches
Millimeters
A
5.91
150.0
B
5.10
129.5
C
1.67±0.01
42.5±0.25
D
5.41±0.01
137.5±0.25
E
6.54
166.0
F
2.91±0.01
74.0±0.25
G
1.65
42.0
H
0.55
14.0
J
1.50±0.01
38.0±0.25
K
0.16
4.0
L
1.36 +0.04/-0.02 34.6 +1.0/-0.5
Housing Type (J.S.T. MFG. CO. LTD)
BB = VHR-2N
CC = VHR-5N
