135 RLI
Vishay BCcomponents
Document Number: 28317 For technical questions contact: [email protected] www.vishay.com
Revision: 16-Nov-05 155
Aluminum Capacitors
Radial Low Impedance
NOT
F
OR
N
E
W DES
IG
NS
FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Radial leads, cylindrical aluminum case with
pressure relief, insulated with a blue vinyl sleeve
• Charge and discharge proof
• Long useful life:
1500 to 2500 hours at 105
°C
• Low ESR, low impedance, high ripple current capability
• Lead (Pb)-free versions are RoHS compliant.
APPLICATIONS
• General industrial, EDP, telecommunication
and audio-video
• Smoothing, filtering, buffering in SMPS
and DC/DC converters.
MARKING
The capacitors are marked (where possible)
with the following information:
• Rated capacitance (in μF).
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ±20%).
• Rated voltage (in V).
• Date code, in accordance with IEC 60062.
• Code indicating factory of origin.
• Name of manufacturer.
• Upper category temperature (105 °C).
• Negative terminal identification.
• Series number (135).

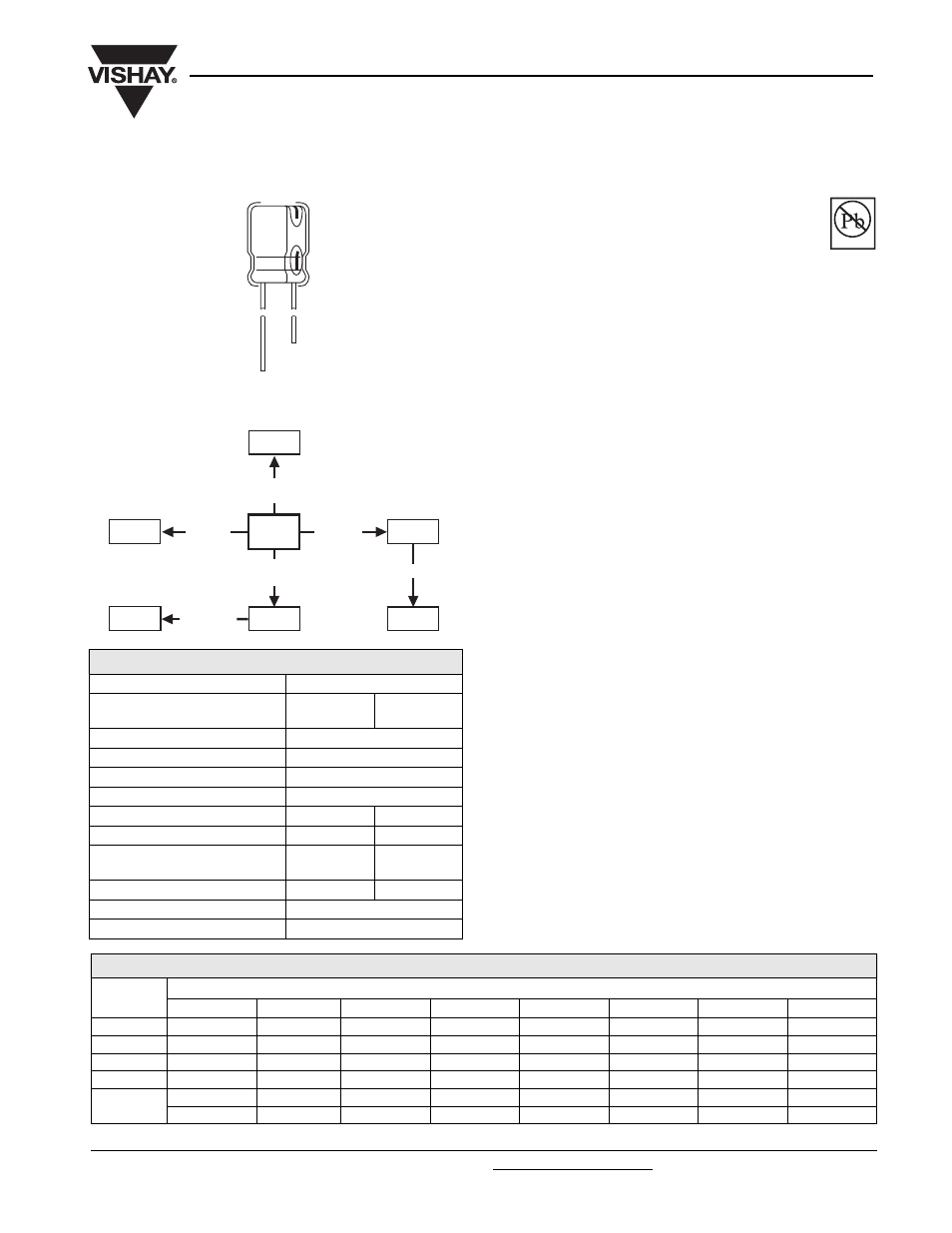

Fig.1 Component outline.
135 RLI 116 RLL 136 RVI
longer life
lower Z
lower
CV-values
140 RTM
125 °C
higher
temperature
higher
CV/volume
048 RML
miniaturized
150 RMI 148 RUS miniaturized
QUICK REFERENCE DATA
DESCRIPTION VALUE
Nominal case sizes
(
∅D × L in mm)
8 × 12
to 8
Ч 20
10 Ч 12
to 18
× 40
Rated capacitance range, C
R
22 to 10000
μF
Tolerance on C
R
±20%
Rated voltage range, U
R
6.3 to 100 V
Category temperature range
−55 to +105 °C
Endurance test at 105 °C 1000 hours 2000 hours
Useful life at 105
°C
1500 hours 2500 hours
Useful life at 40 °C,
1.3
× I
R
applied
150000 hours 250000 hours
Shelf life at 0 V, 105
°C
1000 hours 1000 hours
Based on sectional specification IEC 60384-4/EN130300
Climatic category IEC 60068 55/105/56
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES (ØD x L in mm)
C
R
( μF)
U
R
(V)
6.3 10 16 25 35 50 63 100
22
− − − − − − −
8
Ч 12
47
− − − − − −
8
Ч 12 −
100 − − − − 8 Ч 12 10 Ч 16 − 12.5 Ч 20
220 − − 8 Ч 12 8 Ч 15 8 Ч 20 10 Ч 25 12.5 Ч 20 16 Ч 25
330
− −
8
Ч 15 −
10
Ч 20
12.5
Ч 20 −
16
Ч 31
− − − − − − − 18 Ч 25
Available
Pb-free
RoHS*
COMPLIANT
* Pb containing terminations are not RoHS compliant, exemptions may apply
