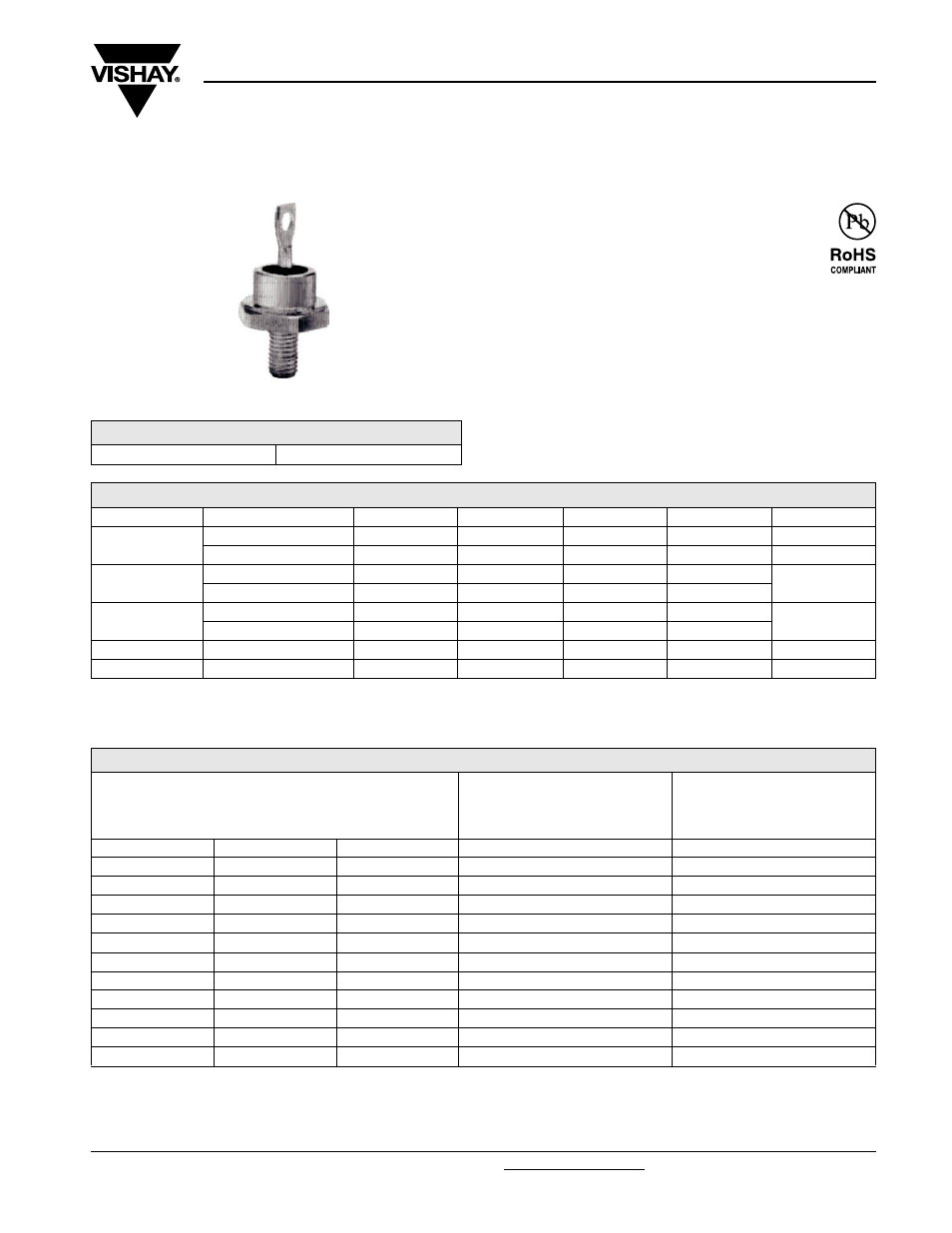

Power Silicon Rectifier Diodes,
35 A/40 A/60 A
1N1183, 1N3765, 1N1183A, 1N2128A Series
Vishay High Power Products
DESCRIPTION/FEATURES
• Low leakage current series
• Good surge current capability up to 1000 A
• Can be supplied to meet stringent military, aerospace and
other high reliability requirements
• RoHS compliant
Note
(1)
JEDEC registered values
ELECTRICAL SPECIFICATIONS
Notes
(1)
JEDEC registered values
(2)
For 1N1183 Series and 1N3765 Series T
C
= - 65 to 190 °C
•
Basic type number indicates cathode to case. For anode to case, add “R” to part number, e.g., 1N1188R, 1N3766R, 1N1186AR, 1N2135AR
PRODUCT SUMMARY
I
F(AV)
35 A/40 A/60 A
DO-203AB (DO-5)
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER
TEST CONDITIONS
1N1183
1N3765
1N1183A
1N2128A
UNITS
I
F(AV)
35
(1)
35
(1)
40
(1)
60
(1)
A
T
C
140
(1)
140
(1)
150
(1)
140
(1)
°C
I
FSM
50 Hz
480
380
765
860
A
60 Hz
500
(1)
400
(1)
800
(1)
900
(1)
I
2
t
50 Hz
1140
730
2900
3700
A
2
s
60 Hz
1040
670
2650
3400
I
2
√t
16 100
10 300
41 000
52 500
A
2
√s
V
RRM
Range
50 to 600
(1)
700 to 1000
(1)
50 to 600
(1)
50 to 600
(1)
V
VOLTAGE RATINGS
TYPE NUMBER
V
RRM
, MAXIMUM REPETITIVE
PEAK REVERSE VOLTAGE
(T
J
= - 65 °C TO 200 °C
(2)
)
V
V
RM
, MAXIMUM DIRECT
REVERSE VOLTAGE
(T
J
= - 65 °C TO 200 °C
(2)
)
V
1N1183
1N1183A
1N2128A
50
(1)
50
(1)
1N1184
1N1184A
1N2129A
100
(1)
100
(1)
1N1185
1N1185A
1N2130A
150
(1)
150
(1)
1N1186
1N1186A
1N2131A
200
(1)
200
(1)
1N1187
1N1187A
1N2133A
300
(1)
300
(1)
1N1188
1N1188A
1N2135A
400
(1)
400
(1)
1N1189
1N1189A
1N2137A
500
(1)
500
(1)
1N1190
1N1190A
1N2138A
600
(1)
600
(1)
1N3765
700
(1)
700
(1)
1N3766
800
(1)
800
(1)
1N3767
900
(1)
900
(1)
1N3768
1000
(1)
1000
(1)
