Fast recovery single diode modules – C&H Technology CS241210 User Manual
Page 2
Dimension
Inches
Millimeters
A
2.087
53
B
1.705±0.008
43.3±0.2
C
1.417
36
D
1.299
33
E
0.866
22
F
0.551
14
G
0.354
9
H
0.315
8
J
0.276
7
K
0.217
5.5
L
0.217 Dia.
Dia. 5.5
M
0.138
3.5
N
0.118
3
P
M4 Metric
M4
Description:
Powerex Fast Recovery Single
Diode Modules are designed for
use in applications requiring fast
switching. The modules are
isolated for easy mounting with
other components on common
heatsinks. POW-R-BLOK™ has
been tested and recognized by
Underwriters Laboratories
(QQQX2 Power Switching
Semiconductors).
Features:
Ⅺ
Isolated Mounting
Ⅺ
Planar Chips
Ⅺ
UL Recognized
A
Applications:
Ⅺ
Inverters
Ⅺ
Choppers
Ⅺ
Switching Power Supplies
Ⅺ
Free Wheeling
Ordering Information:
Select the complete eight digit
module part number you desire
from the table below.
Example: CS241210 is a
1200 Volt, 100 Ampere Fast
Recovery Single Diode Module.
Voltage
Current Rating
Type
Volts (x100)
Amperes (x10)
CS24
06
10
12
D-13
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Fast Recovery Single
Diode Modules
100 Amperes/600-1200 Volts
CS240610
CS241210

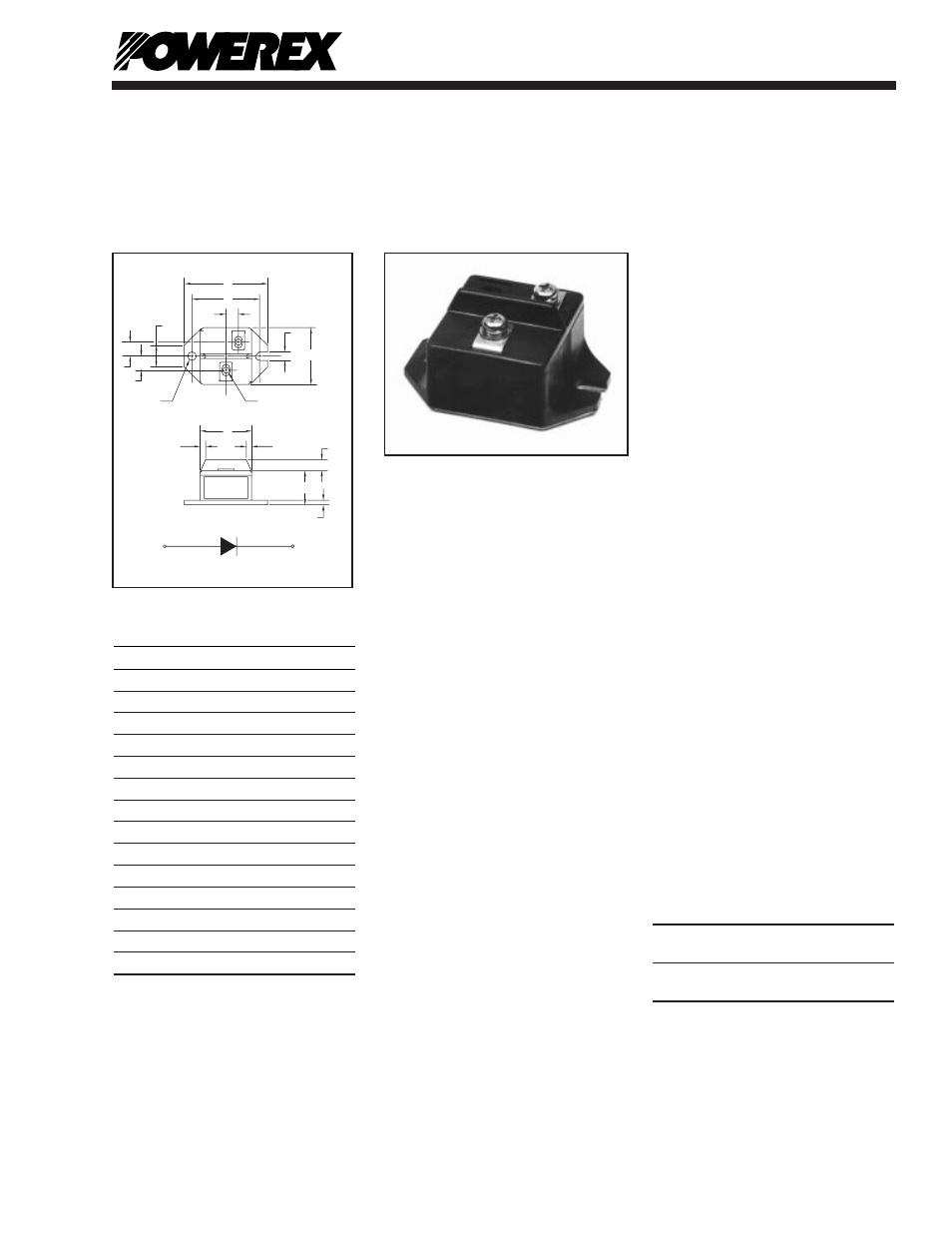

Outline Drawing
CS240610, CS241210
Fast Recovery
Single Diode Modules
100 Amperes/600-1200 Volts
A
J
E
G
G
F
C
A
B
K
H
N
M
M
D
A
K
P - M4 THD (2 TYP.)
L - DIA.
A
K
