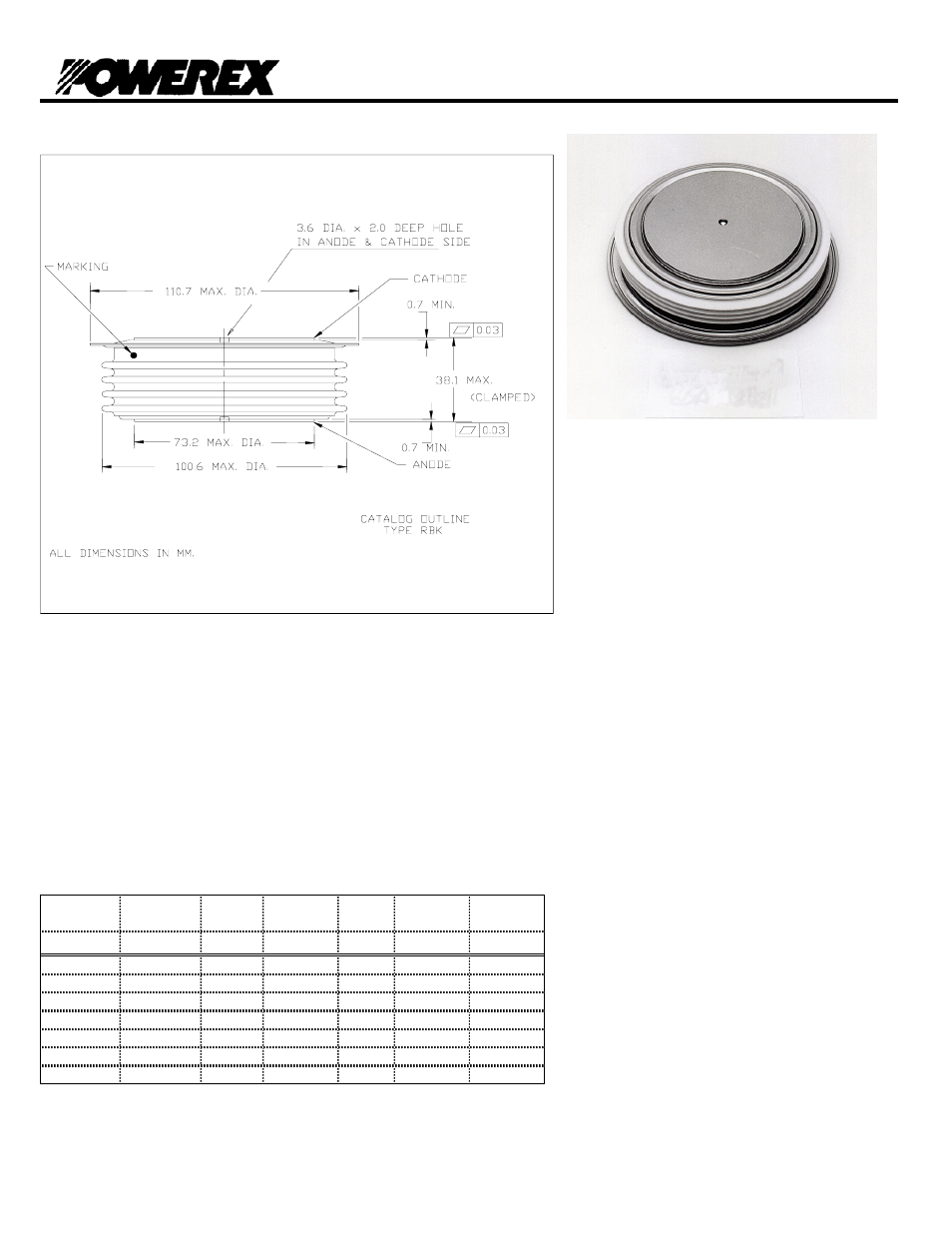

RBK8_ _40XX
GENERAL PURPOSE RECTIFIER DIODE
Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 724 925-7272 www.pwrx.com 4000 Amperes 4500 Volts
Powerex General Purpose Rectifier Diodes are
designed with high locking voltage capability and
low forward voltage drop to minimize conduction
losses. These are packaged in hermetic, ceramic
Pow-R-Disc packages which can be mounted
using commercially available clamps and
heatsinks or fully assembled to a variety of air or
water cooled heat exchangers.
Page 1
FEATURES:
Low On-State Voltage
Hermetic Ceramic Package
Excellent Surge and I
2 t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Input Rectifiers
Plating Supplies
Select the complete 12 digit Part Number using the table below.
EXAMPLE: RBK84540XXOO is a 4500V-4000A General Purpose Diode
with a typical reverse recovery time of 30µs.
PART
Voltage
Rating
Voltage
Code
Current
Rating
Current
Code
Reverse
Recovery
Lead
Code
V
DRM
-V
RRM
I
tavg
t
RR
RBK8 4500 45 4000 40 XX OO
4400 44
4200 42 30µs typical
4000 40
Revised: 10/15/2007
Page 1
