Document Number: 93536 For technical questions, contact: [email protected] www.vishay.com
Revision: 14-May-08 1

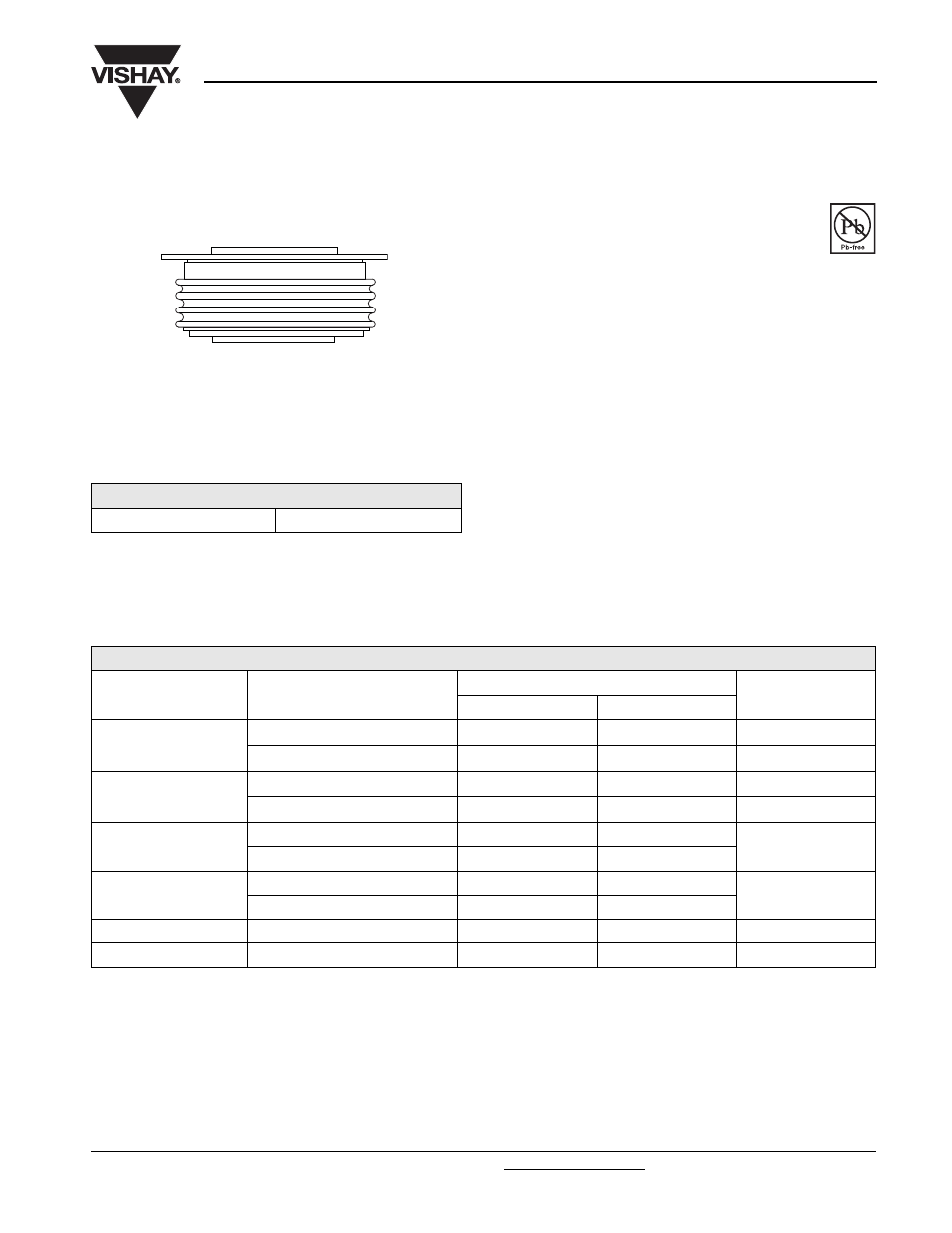

Standard Recovery Diodes
(Hockey PUK Version), 1170 A
SD1100C..L Series
Vishay High Power Products
FEATURES
• Wide current range
• High voltage ratings up to 3200 V
• High surge current capabilities
• Diffused junction
• Hockey PUK version
• Case style DO-200AB (B-PUK)
• Lead (Pb)-free
• Designed and qualified for industrial level
TYPICAL APPLICATIONS
• Converters
• Power supplies
• Machine tool controls
• High power drives
• Medium traction applications
PRODUCT SUMMARY
I
F(AV)
1170 A
DO-200AB (B-PUK)
RoHS
COMPLIANT
MAJOR RATINGS AND CHARACTERISTICS
PARAMETER TEST CONDITIONS
SD1100C..L
UNITS
04 to 20 25 to 32
I
F(AV)
1170 910 A
T
hs
55 55 °C
I
F(RMS)
2080 1660 A
T
hs
25 25 °C
I
FSM
50 Hz 13 000 10 500
A
60 Hz 13 600 11 000
I 2 t
50 Hz 846 551
kA 2 s
60 Hz 772 503
V
RRM
Range 400 to 2000 2500 to 3200 V
T
J
- 40 to 180 - 40 to 150 °C
