PAC 01..06 Series
Cemented Wirewound Precision Vishay
ORDERING INFORMATION
Ordering Code (12NC)
• The resistors have a 12-digit ordering code staring with
2306 327
• The subsequent first digit indicates the resistor type and
packaging; see the 12NC Ordering Code table.
• The remaining 4 digits indicate the resistance value:
– The first 3 digits indicate the resistance value.
– The last digit indicates the resistance decade in
accordance with the 12NC Indicating Resistance
Decade table.
Last Digit of 12NC Indicating Resistance Decade
Ordering Example
The ordering code for an PAC02, resistor value 47
Ω with
± 1 % tolerance, supplied in ammopack of 500 units is:
2306 327 04709.
Product specifications deviating from the standard values
are available on request.
0
20
40
60
80
100
0 50 100 150 200 250 300
T
amb
[°C]

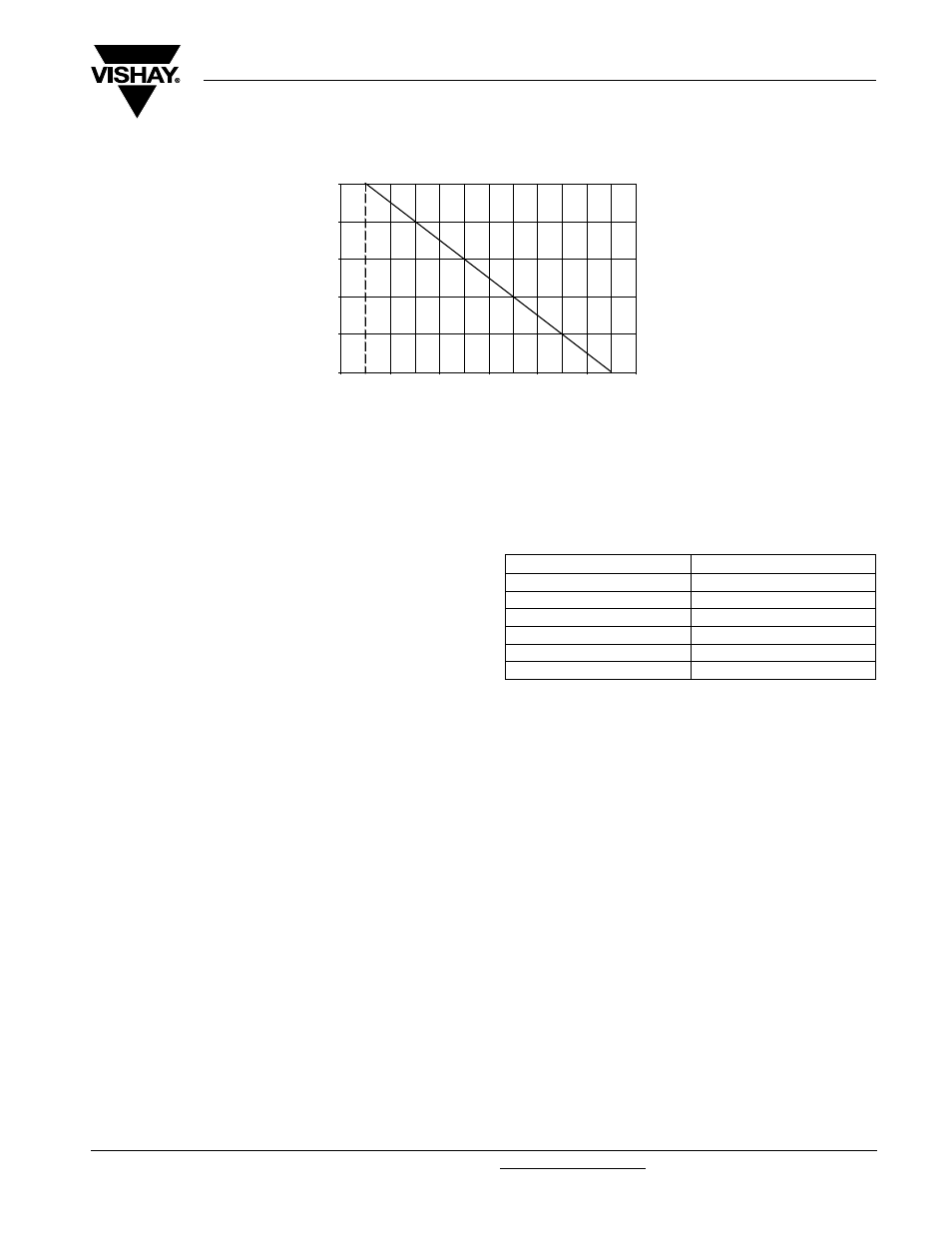

Maximum dissipation (P
max
) as a function
of the ambient temperature (T
amb
).
RESISTANCE DECADE LAST DIGIT
0.10 to 0.976 Ω 7
1 to 9.76
Ω
8
10 to 97.6
Ω
9
100 to 976 Ω 1
1 to 9.76 k
Ω
2
10 to 12 k
Ω
3
