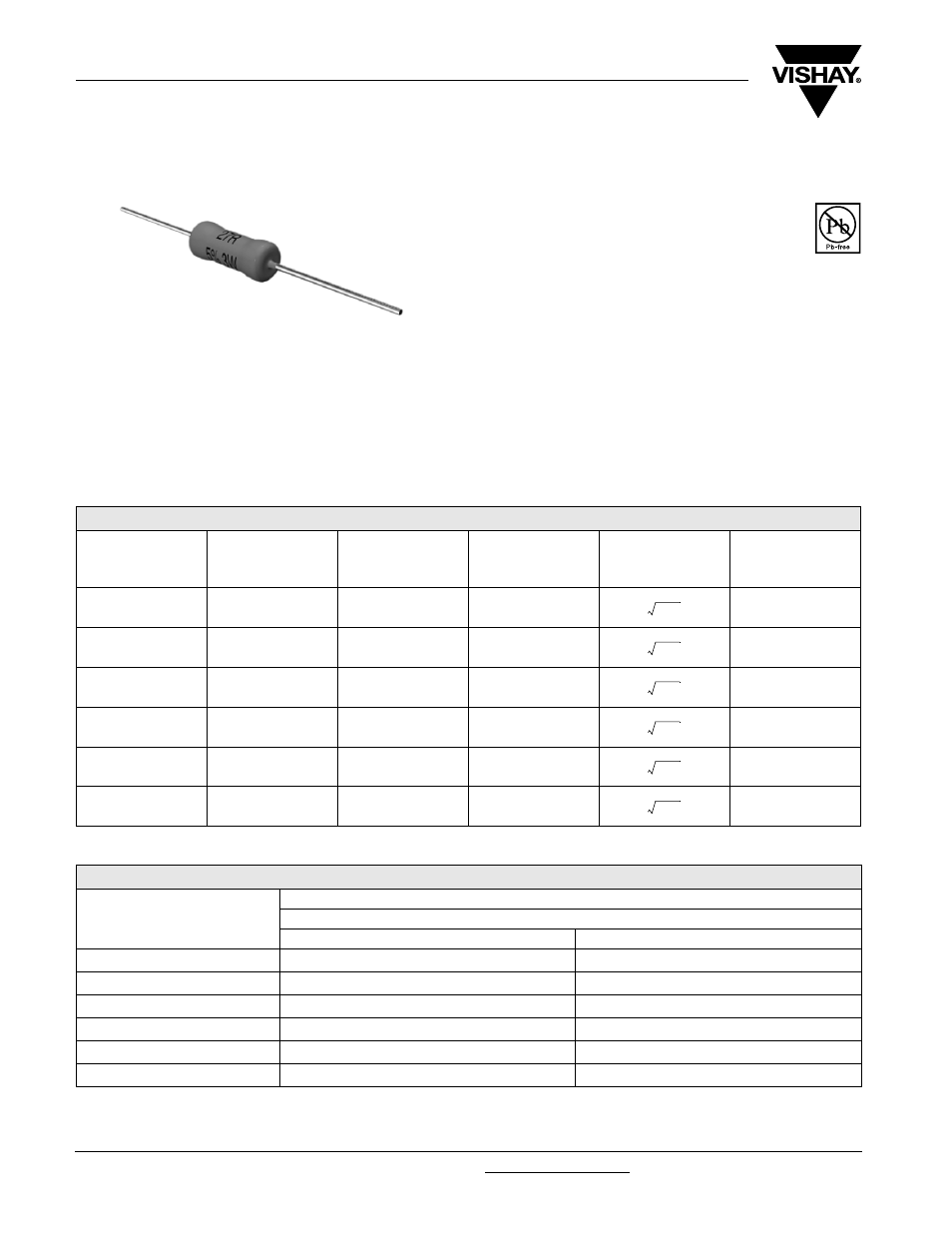

PAC 01..06 Series
Vishay BCcomponents
FEATURES
• High power dissipation in small volume
• Ideal for pulse application
• TCR ± 100 ppm/K
• Maximum permissible hot spot temperature
is 275 °C
• Lead (Pb)-free
• Tolerance 1 %
The resistor element is a resistive wire which is wound in a
single layer on a ceramic rod. Metal caps are pressed over
the ends of the rod. The ends of the resistance wire and the
leads are connected to the caps by welding. Tinned
copper-clad iron leads with poor heat conductivity are
employed permitting the use of relatively short leads to
obtain stable mounting without overheating the solder joint. The resistor is coated with a green silicon cement which is
not resistant to aggressive fluxes. The coating is
non-inflammable, will not drip even at high overloads and is
resistant to most commonly used cleaning solvents, in
accordance with “MIL-STD-202E, method 215” and
“IEC 60068-2-45”.
* For Pulse Diagrams see AC..series (28730)
Note
1. Radial taped version available on request. 2500 pcs Ammo packaging
RoHS
COMPLIANT
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL HISTORICAL
MODEL
P
25 °C
W
TOLERANCE
E24/E96 series
± %
LIMITING
VOLTAGE
V
RESISTANCE
RANGE Ω
TCR ± 100 ppm/k
PAC100 PAC01 1 1 R10 - 2K2
PAC200 PAC02 2 1 R10 - 3K6
PAC300 PAC03 3 1 R10 - 4K7
PAC400 PAC04 4 1 R10 - 8K2
PAC500 PAC05 5 1 R10 - 10K
PAC600 PAC06 6 1 R10 - 12K
PxR
PxR
PxR
PxR
PxR
PxR
12NC ORDERING CODE INDICATING RESISTOR TYPE AND PACKAGING
TYPE
ORDERING CODE 2306 327 .....
BANDOLIER IN AMMOPACK
500 units 1000 units
PAC01 - 1) 2306 327 5....
PAC02 2306 327 0.... −
PAC03 2306 327 1.... −
PAC04 2306 327 2.... −
PAC05 2306 327 3.... −
PAC06 2306 327 4.... −
Cemented Wirewound Precision Resistors
