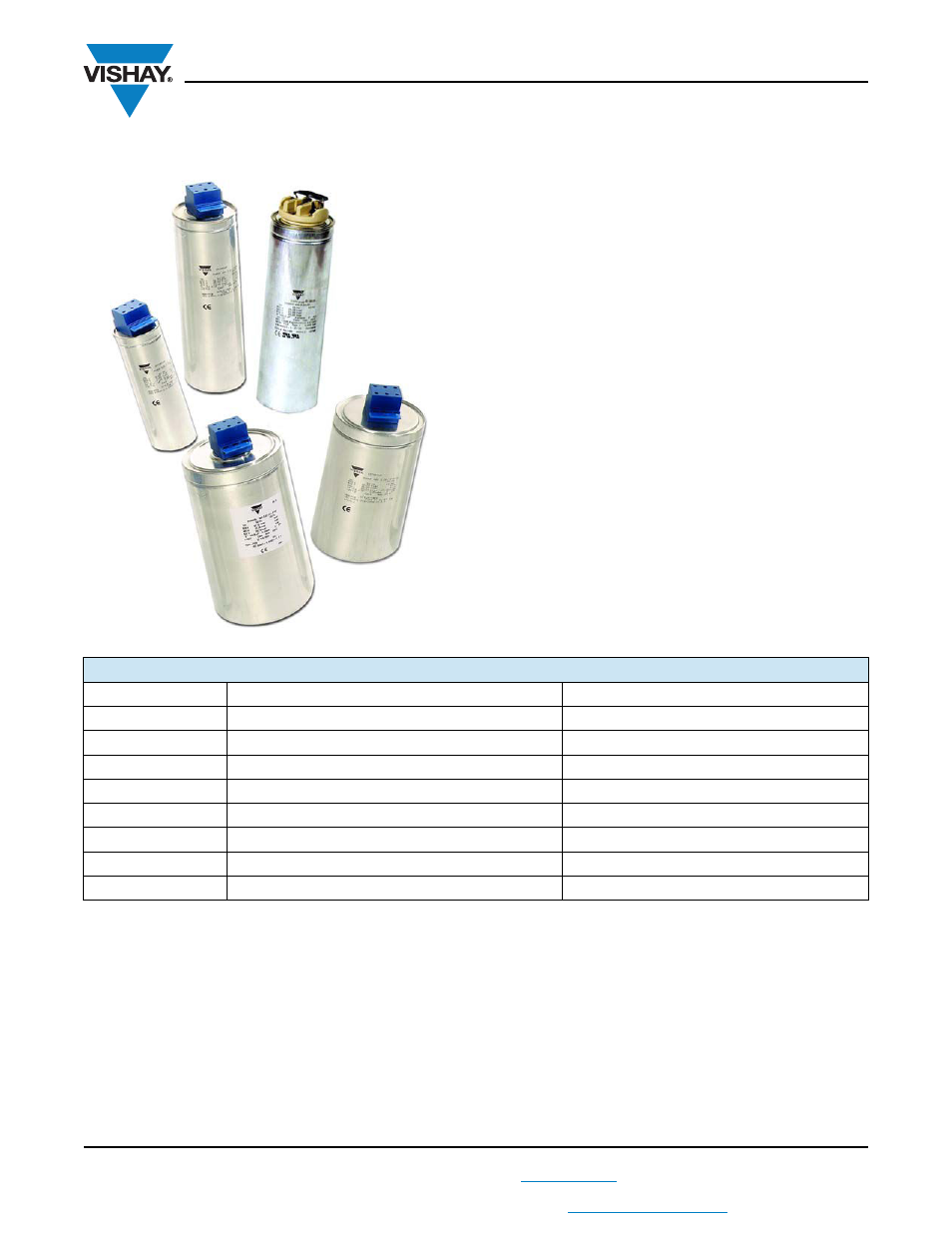

LVAC Power Capacitors
FEATURES
• Self-healing technology
• Over pressure tear-off fuse
• Aluminum case
• Excellent heat dissipation
• Various design options: Slim diameter or low height,
screw terminal IP00 or terminal block IP20
• Two versions available: Oil-filled and dry, gas filled
• UL and cUL approved
APPLICATIONS
• For applications 1-phase or 3-phase
1000 VAC
RMS
• Free standing, fixed individual-PFC (e.g. motors, lighting,
transformers)
• Automatic central-PFC (e.g. group of loads)
• Harmonic trap (e.g. UPS, frequency drives, converter)
QUICK REFERENCE DATA
Series
PhMKP…, cylindrical
PhMKPg…, cylindrical
Description
LVAC Power Capacitors - Oil - INDOOR, IP00 - IP20
LVAC Power Capacitors - Dry - INDOOR, IP00 - IP20
Type
Capacitors, fixed, low voltage
Capacitors, fixed, low voltage
Technology
MKP, metallized polypropylene film
MKP, metallized polypropylene film
Voltage max. (V)
1000
1000
Capacitance min. (μF)
3-phase D: 3 x 11.5, 3-phase Y: 83.6, 1-phase: 49.7
3-phase D: 3 x 11.5, 3-phase Y: 3 x 83.6
Capacitance max. (μF)
3-phase D: 3 x 335.0, 3-phase Y: 219.3, 1-phase: 332.2
3-phase D: 3 x 335.0, 3-phase Y: 3 x 219.3
Output min. (kvar)
2
2
Output max. (kvar)
37.1
37.1
