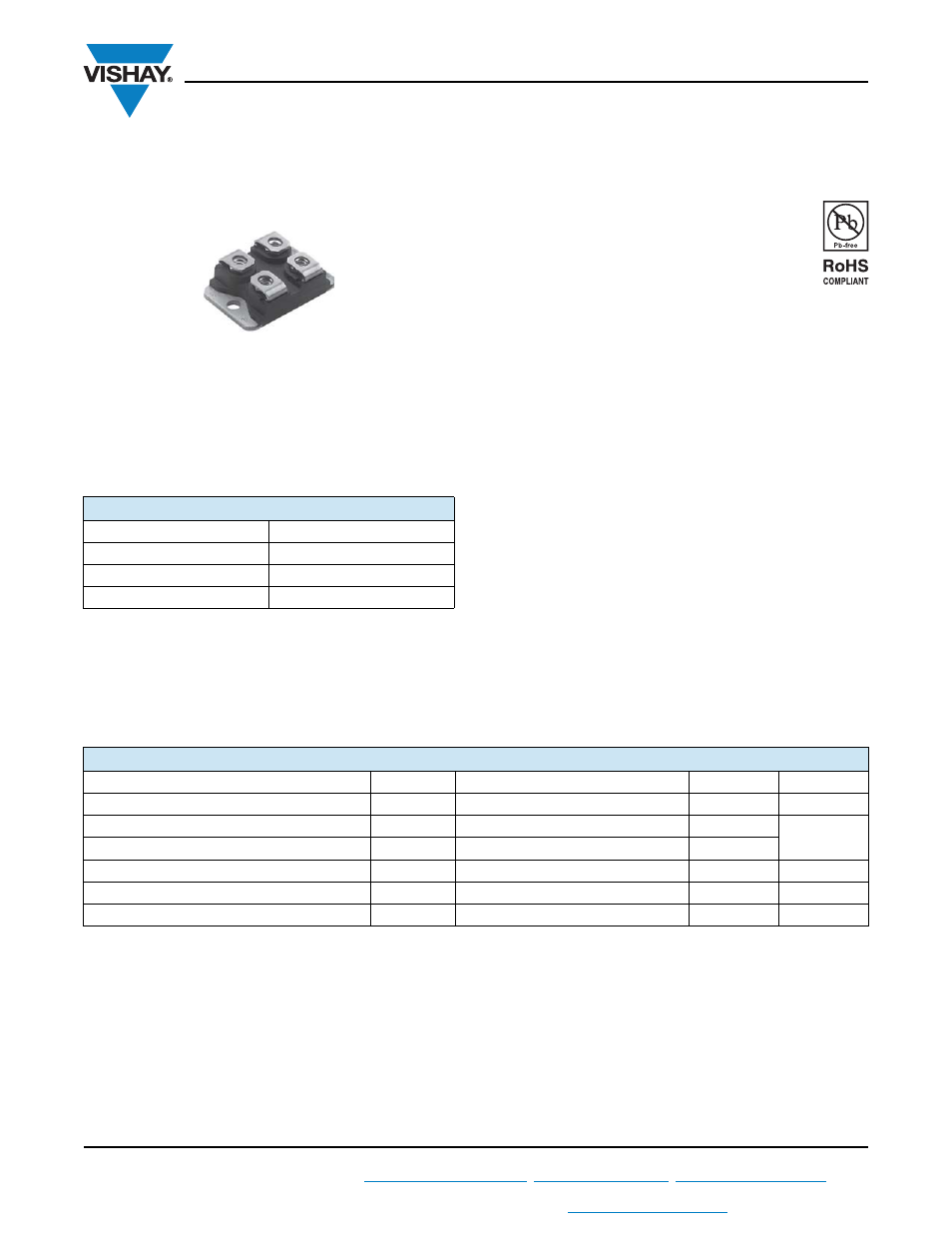

VS-UFB130FA20
www.vishay.com
Vishay Semiconductors
Revision: 26-Oct-11 1 Document Number: 93606
For technical questions within your region: [email protected] , [email protected] , [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Insulated Ultrafast Rectifier Module, 130 A
FEATURES
• Two fully independent diodes
• Fully insulated package
• Ultrafast, soft reverse recovery, with high
operation junction temperature (T
J
max. = 175 °C)
• Low forward voltage drop
• Optimized for power conversion: welding and industrial
SMPS applications
• Easy to use and parallel
• Industry standard outline
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified for industrial level
DESCRIPTION
The VS-UFB130FA20 insulated modules integrate two state
of the art ultrafast recovery rectifiers in the compact,
industry standard SOT-227 package. The diodes structure,
and its life time control, provide an ultrasoft recovery
current shape, together with the best overall performance,
ruggedness and reliability characteristics.
These devices are thus intended for high frequency
applications in which the switching energy is designed not
to be predominant portion of the total energy, such as in the
output rectification stage of welding machines, SMPS,
DC/DC converters. Their extremely optimized stored
charge and low recovery current reduce both over
dissipation in the switching elements (and snubbers) and
EMI/RFI.
PRODUCT SUMMARY
V
R
200 V
I
F(AV)
per module at T
C
= 126 °C 130 A
t
rr
32 ns
Type Modules - Diode FRED Pt ®
SOT-227
ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL TEST CONDITIONS MAX. UNITS
Cathode to anode voltage V
R
200 V
Continuous forward current per diode I
F
T
C
= 132 °C 65
A
Single pulse forward current per diode I
FSM
T
C
= 25 °C 890
Maximum power dissipation per module P
D
T
C
= 132 °C 119 W
RMS isolation voltage V
ISOL
Any terminal to case, t = 1 minute 2500 V
Operating junction and storage temperatures T
J
, T
Stg
- 55 to 175 °C
