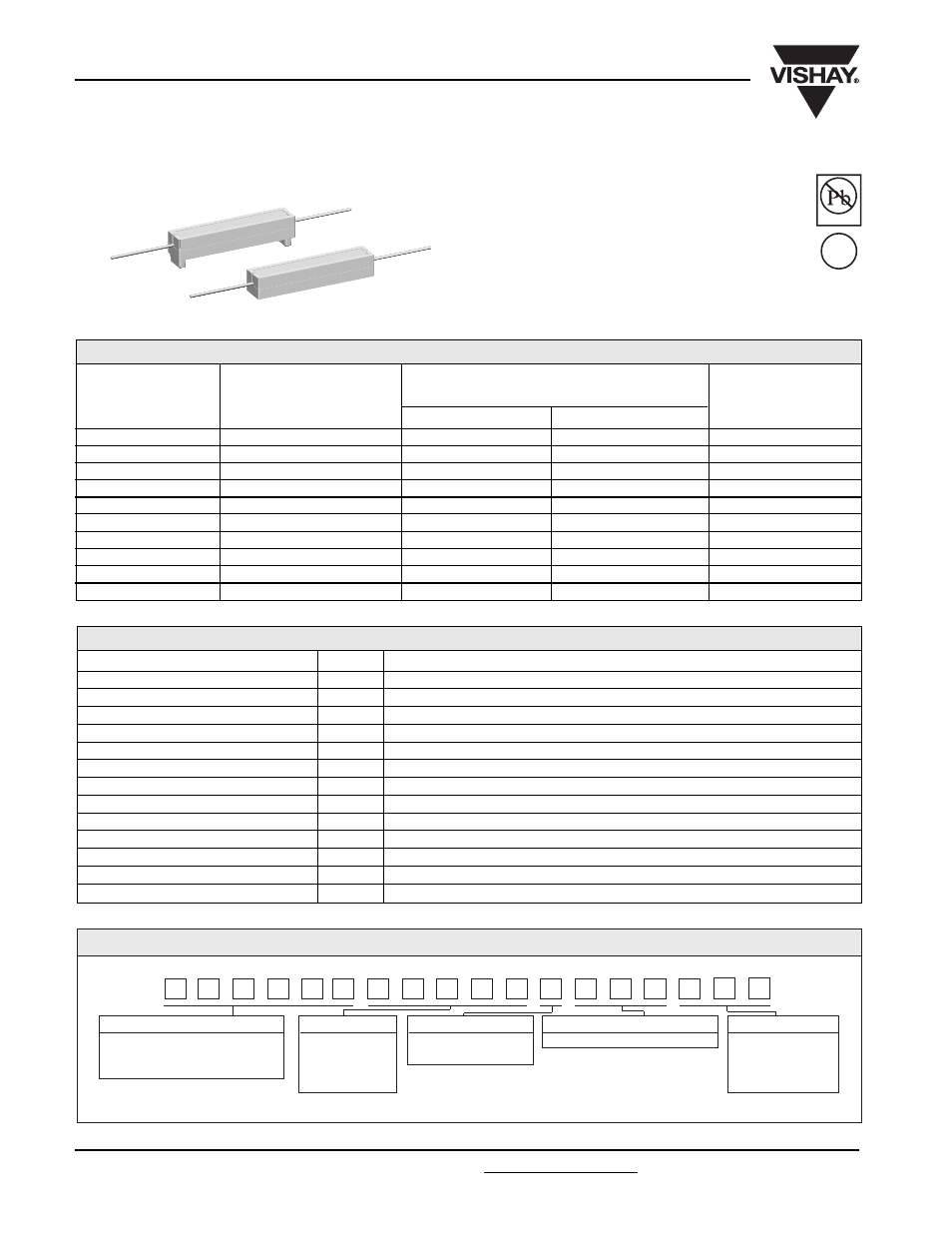

FEATURES
• High performance for low cost
• High power to size ratio
• Ceramic cases are available with circuit board
stand-offs (designated with a ...3 model ending)
• Special cement potting compound and ceramic
case provide high thermal conductivity in a fireproof package
Wirewound/Metal Oxide Resistors,
Commercial Power, Axial Lead
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL POWER RESISTANCE RANGE WEIGHT
MODEL RATING Ω (Typical)
P
40 ° C
± 5 %, ± 10 %
W WIREWOUND METAL OXIDE g
CP0002 2 0.1 - 82 83 - 30 k 2.0
CP0003 3 0.1 - 180 181 - 33 k 3.4
CP0005 5 0.1 - 180 181 - 50 k 3.6
CP0005...3 5 0.1 - 180 181 - 50 k 4.8
CP0007 7 0.1 - 430 431 - 50 k 5.0
CP0007...3 7 0.1 - 430 431 - 50 k 6.8
CP0010 10 0.1 - 470 471 - 50 k 9.5
CP0010...3 10 0.1 - 470 471 - 50 k 9.9
CP0015 15 0.5 - 600 601 - 50 k 16.8
CP0020 20 0.5 - 1 k 1.1 k - 50 k 22.8
GLOBAL MODEL VALUE TOLERANCE PACKAGING SPECIAL
(See Standard Electrical R = Decimal J = ± 5.0 % E66 = Lead (Pb)-free, bulk (Dash Number)
Specifications Global Model K = Thousand K = ± 10 % (up to 3 digits)
column for options) R1500 = 0.15 Ω From 1-999 as
1K500 = 1500 Ω applicable
GLOBAL PART NUMBER INFORMATION
Global Part Numbering Example: CP000515R00JE663
C P 0 0 0 5 1 5 R 0 0 J E 6 6 3
TECHNICAL SPECIFICATIONS
PARAMETER UNIT WIREWOUND CHARACTERISTICS
Temperature Coefficient ppm/°C ± 400
Short Time Overload - 5 x rated power for 5 seconds
Terminal Strength lb 10 minimum
Operating Temperature Range °C - 65/+ 275
Dielectric Withstanding Voltage V
AC
1000
Maximum Working Voltage V (P x R) 1/2
METAL OXIDE CHARACTERISTICS
Temperature Coefficient ppm/°C ± 400
Short Time Overload - 5 x rated power for 5 seconds
Terminal Strength lb 10 minimum
Operating Temperature Range °C - 65/+ 225
Dielectric Withstanding Voltage V
AC
1000
Maximum Working Voltage V (P x R) 1/2
RoHS
COMPLIANT
Pb-free
e3
