Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272 POW-R-BLOK
TM

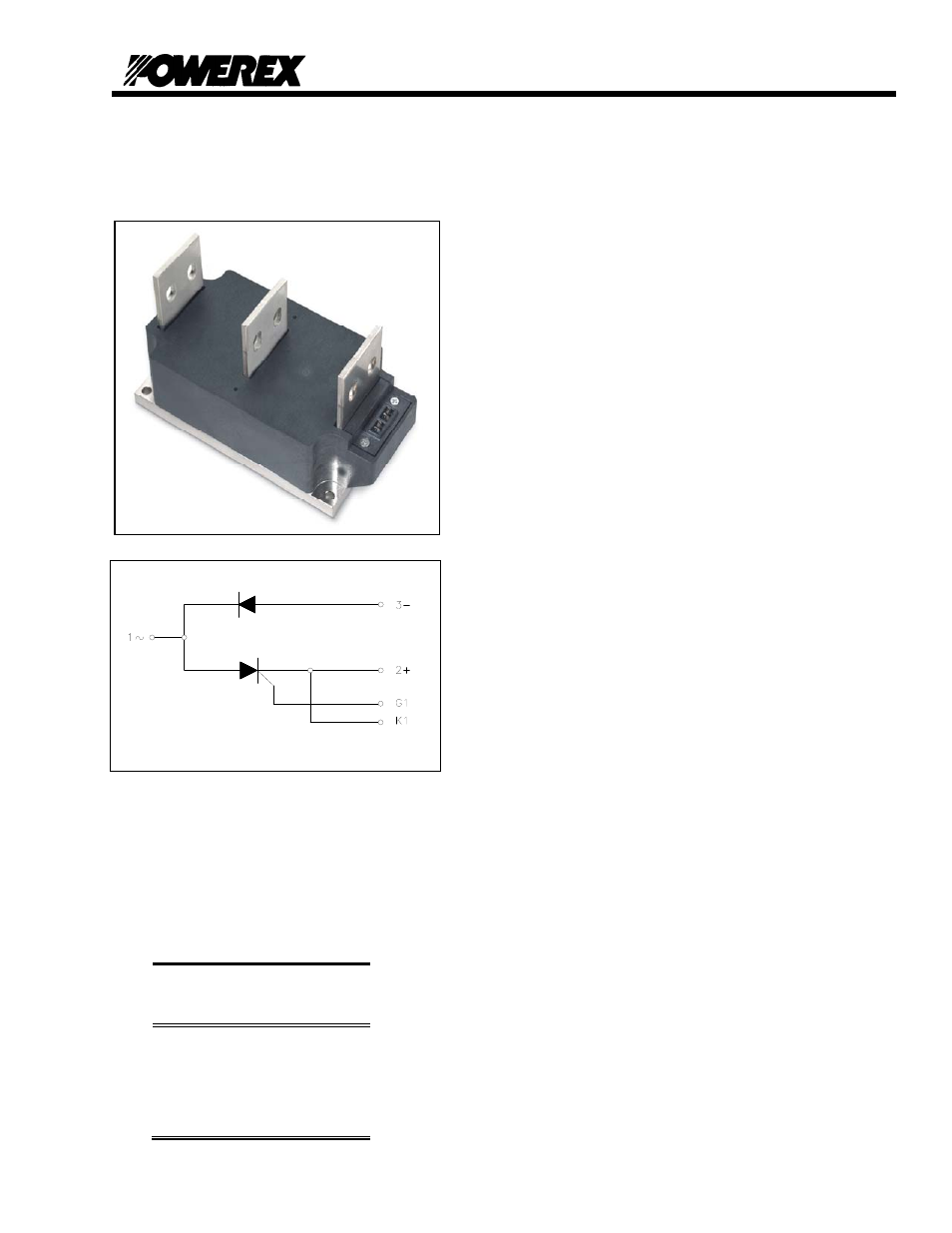

www.pwrx.com Dual SCR / Diode Isolated Module
700 Amperes, Up to 1800 Volts
Revision Date: 09/28/2009
PD42__07
Ordering Information
:
Select the complete eight-digit
module part number from the table
below.
Example: PD421807 is a 1800 Volt,
700A Average SCR/Diode Isolated
POW-R-BLOK
TM Module
Type
Voltage
Volts (x100)
Current
Amperes
(x100)
PD42 12
14
16
18 07
Description:
Powerex Dual SCR/Diode Modules are
designed for use in applications requiring
phase control and isolated packaging. The
modules are isolated for easy mounting with
other components on a common heatsink.
Features:
„ Electrically Isolated Heatsinking
„ Compression Bonded Elements
„ Metal Baseplate
„ Low Thermal Impedance
for Improved Current Capability
„ UL Recognized (E78240)
Benefits:
„ No Additional Insulation
Components Required
„ Easy Installation
„ No Clamping Components
Required
„ Reduce Engineering Time
Applications:
„ Bridge Circuits
„ AC & DC Motor Drives
„ Motor Soft Starters
„ Battery Supplies
„ Power Supplies
„ Large IGBT Circuit Front Ends
