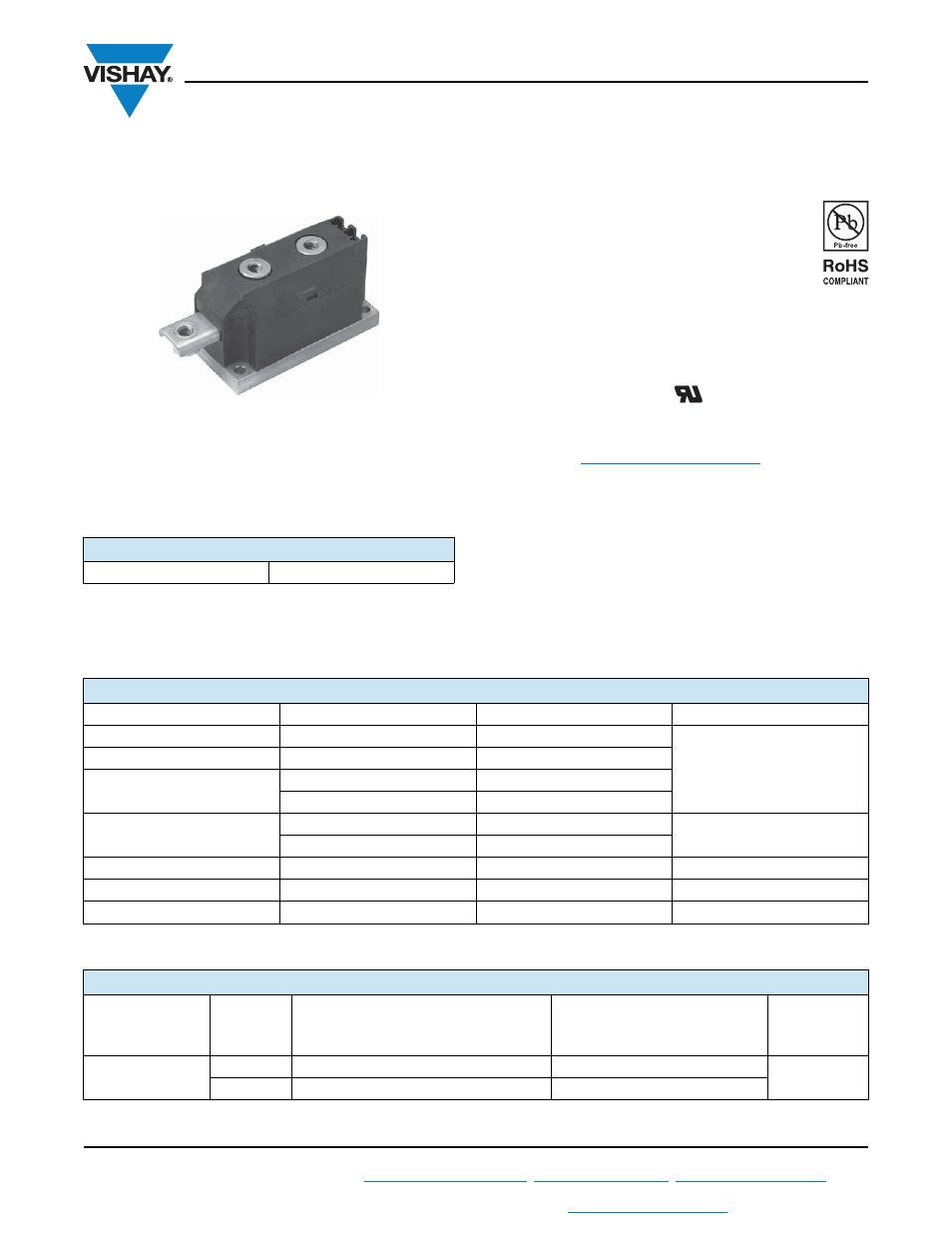

VSKT320PbF Series
www.vishay.com
Vishay Semiconductors
Revision: 05-Jul-12 1 Document Number: 94085
For technical questions within your region: [email protected] , [email protected] , [email protected]
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Thyristor/Thyristor
(MAGN-A-PAK Power Modules), 320 A
FEATURES
• High voltage
• Electrically isolated base plate
• 3600 V
RMS
isolating voltage
• Industrial standard package
• Simplified mechanical designs, rapid assembly
• High surge capability
• Large creepage distances
• UL approved file E78996
• Designed and qualified for industrial level
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
DESCRIPTION
This new VSK series of MAGN-A-PAK modules uses high
voltage power thyristor/thyristor in doubler circuit
configuration. The semiconductors are electrically isolated
from the metal base, allowing common heatsinks and
compact assemblies to be built.
They can be
interconnected to form single phase or three phase bridges
or as AC-switches when modules are connected in
anti-parallel mode. These modules are intended for general
purpose applications such as battery chargers, welders,
motor drives, UPS, etc.
ELECTRICAL SPECIFICATIONS
PRODUCT SUMMARY
I
T(AV)
320 A
MAGN-A-PAK
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL CHARACTERISTICS VALUES UNITS
I
T(AV)
70 °C 320
A
I
T(RMS)
710
I
TSM
50 Hz 9000
60 Hz 9420
I 2 t
50 Hz 405
kA 2 s
60 Hz 370
I 2 t
4050 kA 2 s
V
DRM
/V
RRM
1200, 1600 V
T
J
Range - 40 to 130 °C
VOLTAGE RATINGS
TYPE NUMBER
VOLTAGE
CODE
V
RRM
/V
DRM
, MAXIMUM REPETITIVE
PEAK REVERSE AND OFF-STATE
BLOCKING VOLTAGE
V
V
RSM
, MAXIMUM
NON-REPETITIVE PEAK
REVERSE VOLTAGE
V
I
RRM
/I
DRM
AT 130 °C
MAXIMUM
mA
VSKT320-
12 1200 1300
50
16 1600 1700
