MAGN-A-PAK TM

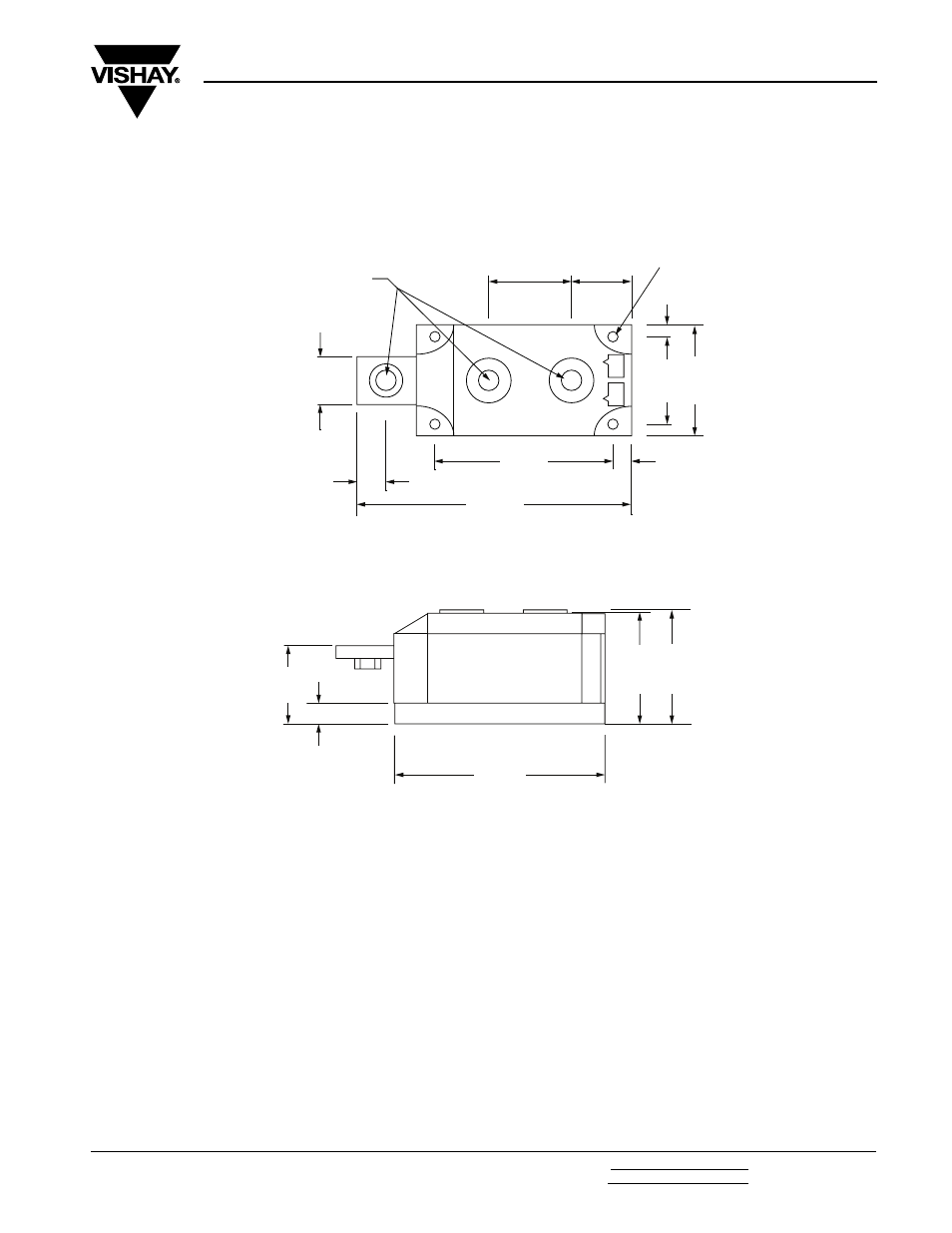

Outline Dimensions
Vishay High Power Products
DIMENSIONS in millimeters (inches)
Notes
• Dimensions are nominal
• Full engineering drawings are available on request
• UL identification number for gate and cathode wire: UL 1385
• UL identification number for package: UL 94V0
Ø 5.5
6
(0.24)
38 (1.5) 50 (1.97)
6 (0.24)
115 (4.53)
80 (3.15)
9 (0.35)
20 (0.79)
3 screws M8 x 1.25
35 (1.38) 28 (1.12)
32
(1.26)
HEX 13
10 (0.39)
92 (3.62)
51 (2.01) 52 (2.04)
