T9KC__0603
Phase Control Thyristor
Powerex, Inc., 173 Pavilion Ln, Youngwood, PA 15697-1800 (724)925-7272 WWW.PWRX.COM 600 Amperes 6500 Volts
0
500
1000
1500
2000
2500
3000
3500
4000
0 250 500 750 1000
Pavg
(W
atts)
Iavg (A)

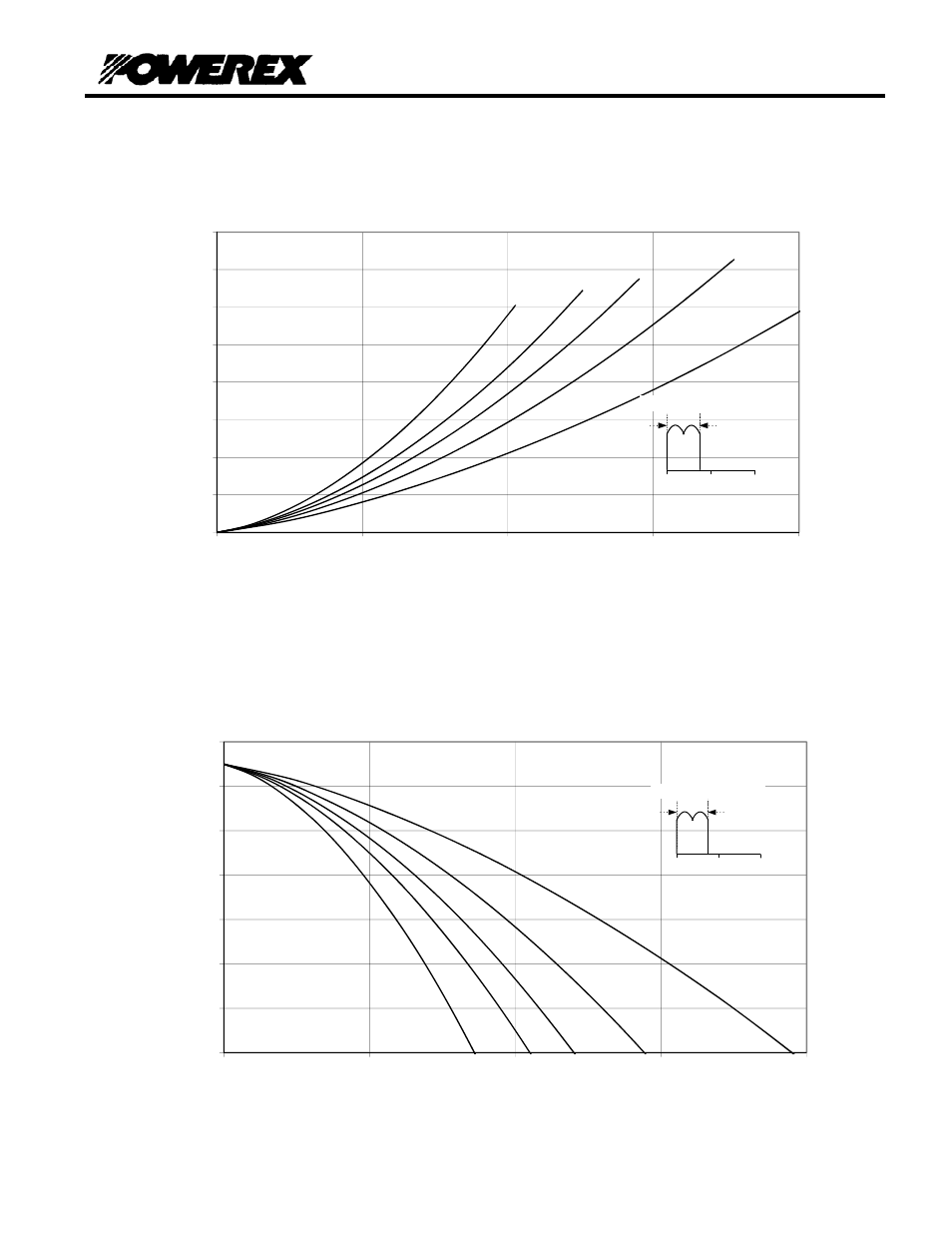

Maximum On-State Power Dissipation
Square Waveform
60°
90°
120°
180°
0° 180° 360°
CONDUCTION ANGLE
360°
60
70
80
90
100
110
120
130
0 250 500 750 1000
T
c
(°C)
Iavg (A)
Maximum Allowable Case Temperature
Square Waveform
60° 90° 120°
180°
0° 180° 360°
CONDUCTION ANGLE
360°
