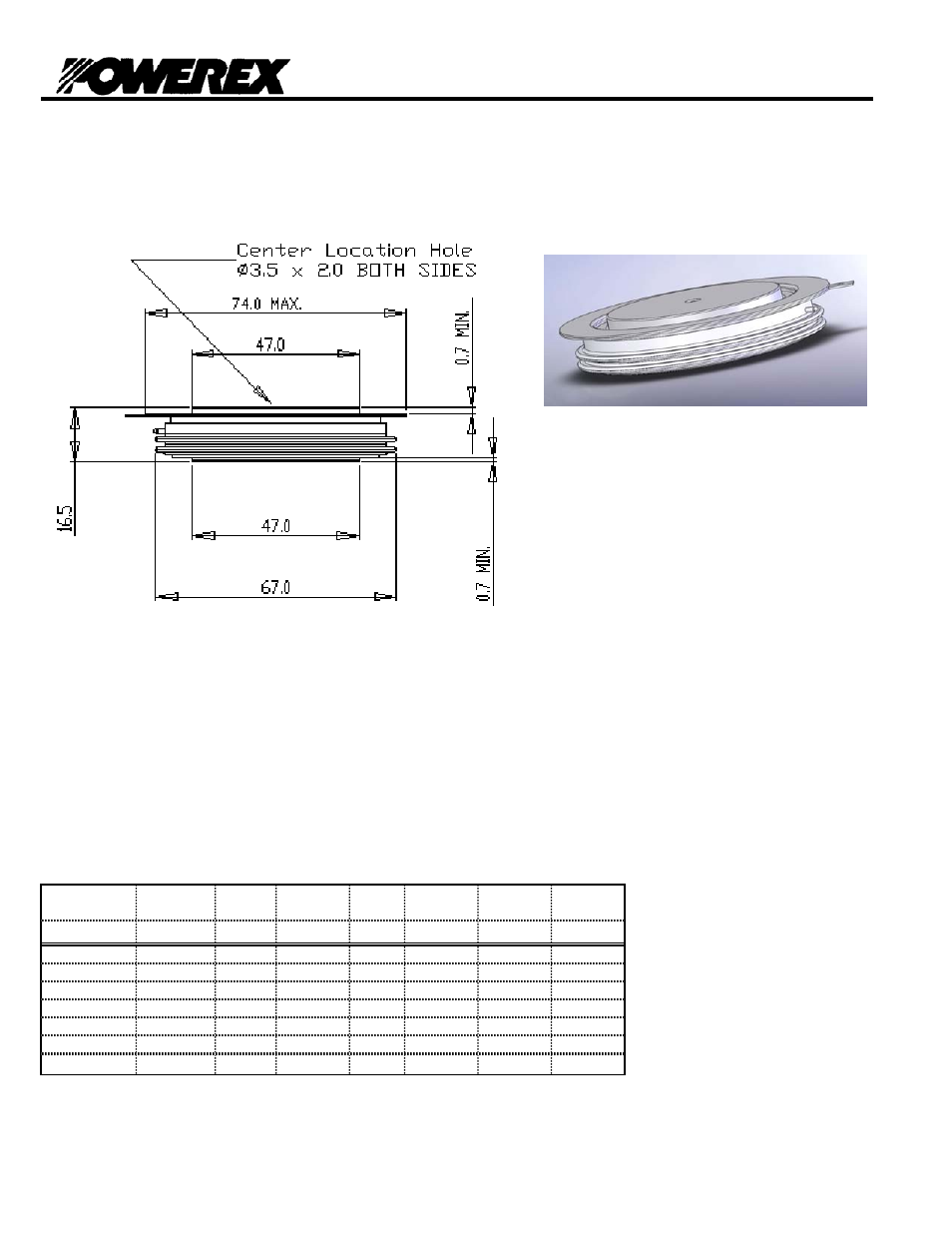

T9S0__
Phase Control Thyristor
Powerex, Inc., 173 Pavilion Ln, Youngwood, Pennsylvania 15697-1800 (724)925-7272 www.pwrx.com 2000 Amperes 1800 Volts
The T9S0 SCR employs a Center‐Fired
amplifying gate structure which allows the
SCR to be reliably operated at high di/dt and
high dv/dt conditions in phase control
applications.
FEATURES:
Low On-State Voltage
High di/dt Capability
High dv/dt Capability
Hermetic Ceramic Package
Excellent Surge and I
2 t Ratings
APPLICATIONS:
DC Power Supplies
ORDERING INFORMATION Plating Supplies
Welding Supplies
Select the complete 12 digit Part Number using the table below.
EXAMPLE: T9S0182003DH is an 1800V-1500A SCR with 200ma
IGT and 12 inch gate and cathode potential leads.
PART
Voltage
Rating
Voltage
Code
Current
Rating
Current
Code Turn-Off Gate Leads
V
DRM
-V
RRM
I
tavg
Tq I
GT
T9S0 1200V 12 2000A 20 0 3 DH
1400V 14
1600V 16 400us typ. 200ma 12"
1800V 18
Revised: 5/5/2008
Page 1 of 7
