Deflecto FC....B Series User Manual

T echnical product specifications, Pe r formance data, Su purr-flex

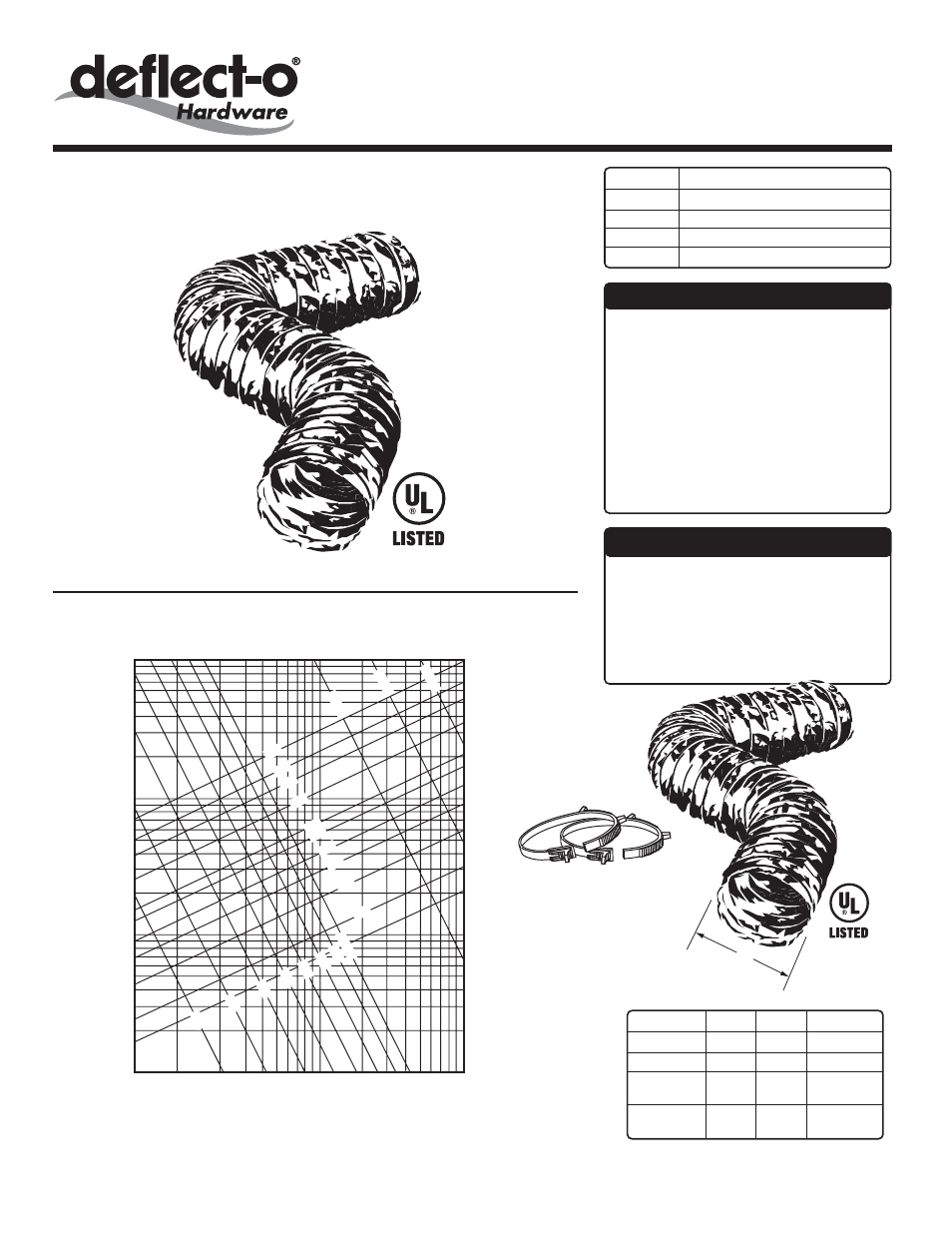

background image

Pe r formance Data

M odel No. Description

for uninsulated aluminum, multi-layered flexible

metallic duct

Su purr-Flex

®

pure aluminum, multi-layered flexible

metallic duct - UL Listed, Clothes Dryer

Transition Duct

?

T echnical Product Specifications

Ge neral Information

F0405B Supurr-Flex

®

multi-layered flexible duct

F0408B Supurr-Flex

®

multi-layered flexible duct

FC0405B Supurr-Flex

®

multi-layered flexible duct

FC0408B Supurr-Flex

®

multi-layered flexible duct

Mo del No. A length notes

F0405B

4"dia. 5 ft.

F0408B

4"dia. 8 ft.

FC0405B 4"dia. 5 ft.

with plastic

1.5m clamps

FC0408B 4"dia. 8 ft. with plastic

2.4m clamps

M aximum Velocity

5000 FPM

/ 25 m/ sec

M aximum Rated Pressures

all diameters

10" W.C/ 2.5Kpa Pos.

3"-6"dia.,

.5" W.C/.12 Kpa Neg.

O perating Temperature Range

0 F to 265 F/-18C to 130C Intermittent

"F0"

UL Listed Clothes Dryer Transition Duct

Listing No.: 2158A

© 2006

DEFLECTO CORPOR A TION • P .O. B o x 50057 • I ndianapolis, IN 46250 • ww w .deflect o .com

DEFLECTO/ C anada Ltd. • S t. Catharines, O ntario • Canada L2M 3Y2

Rev 5/06 FO405Btps-A

Supurr-Flex

®

Clothes Dryer Transition Duct

(diameter)

a v ailable in 4"

(101mm) dia and lengths of

5'

(1.5m) and 8' (2.4m)

• UL Listed on this product is for

installations of 8 ft.

(2.4m) or less

• best for clothes dryer duct, fresh air

intake and non-insulated ventilation duct
fire resistant

Clamps available with

FC0405B

&

FC0408B

F0 Duct

5/06

VELOCITY FPM

VOLUME CFM

10,000

5,000

4,000
3,000

2,000

1,000

700

400
300

200

100

70

50

40
30

20

.2

.05

.1

.3 .4 .5 .7

1.0

2

3 4 5 7 10

PRESSURE DROP

(IN. W.G. PER 100 FT.)

18”

4,000

Pr essure Loss Diagram

Deflecto’s policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations.

3,000

2,000

16”

14”

12”

10”

9”

8”

7”

6”

5”

300

400

500

600

700

800 900

1,000

INCHES TO DUCT DIAMETER
