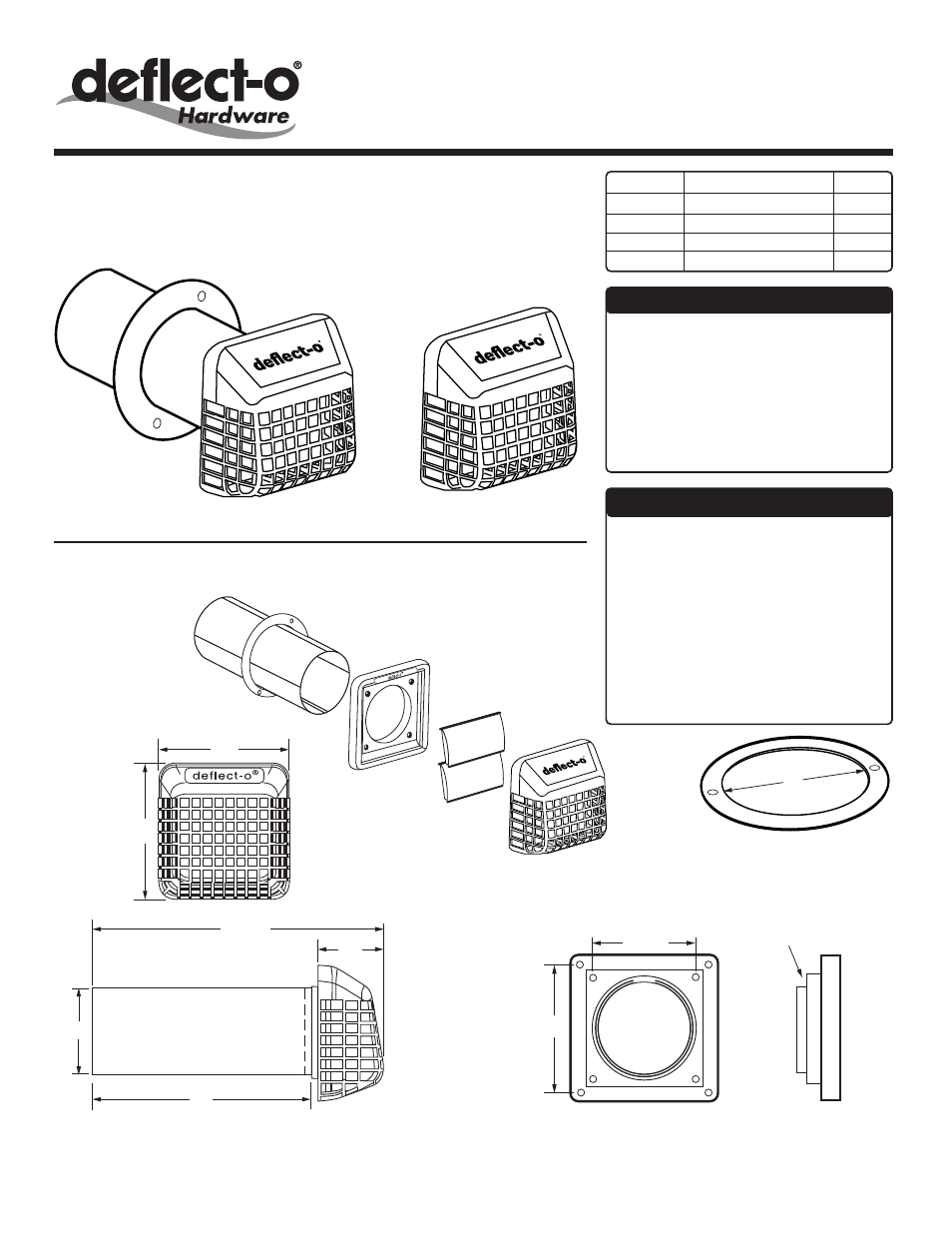

Deflecto GHR4W - Manual

Technical
Performance Data
Model No. Description Color
for plastic molded louvered vent hoods
Dryer Vent - 4" Supurr Guard ® Vent Hood with removable
guard, aluminum pipe and collar
Plastic collar
(GVHAW4 &
GVHXW4 only)
4"
11"
4"
dia.
5"
sq.
3 1 /
2
"sq.
3 1 /
8"
6 1 /
4"
6 1 /
4"
14 1 /
16
"
Rear View Side View
Molded for easy
connection of pipe
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. GVHAW4tps
Technical Product Specifications
General Information
GVHAW4 Hood/pipe assem. White
GVHXW4 Hood/pipe unassem. White
GH4W Hood White
GHR4W Hood White
Hood
• Calcium filled Polypropylene
• Melting point: 325° F+
• UV Inhibitor added
Pipe
• Aluminum
Collar
• Styrene
• 4" dia. opening
• quick, easy installation
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
GVHAW4, GVHXW4 GH4W, GHR4W
Pipe & collar (GVHAW4 & GVHXW4 only)
louvered hood
bird guard assembly
6/01
Supurr Guard ® Hood
• durable, weather resistant, limited
lifetime guaranteed
• hood louvered dampers operates quietly
for maximum exhaust air flow and seals
when not in operation to help prevent
back drafts
• removable bird guard helps prevent
birds and rodents from entering home
through your dryer vent
