Deflecto DE904 - Manual

Technical
Performance Data
Model No. Description Color
for aluminum, adjustable elbows
Aluminum Elbows - Fully adjustable to 90°
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. DE904tps

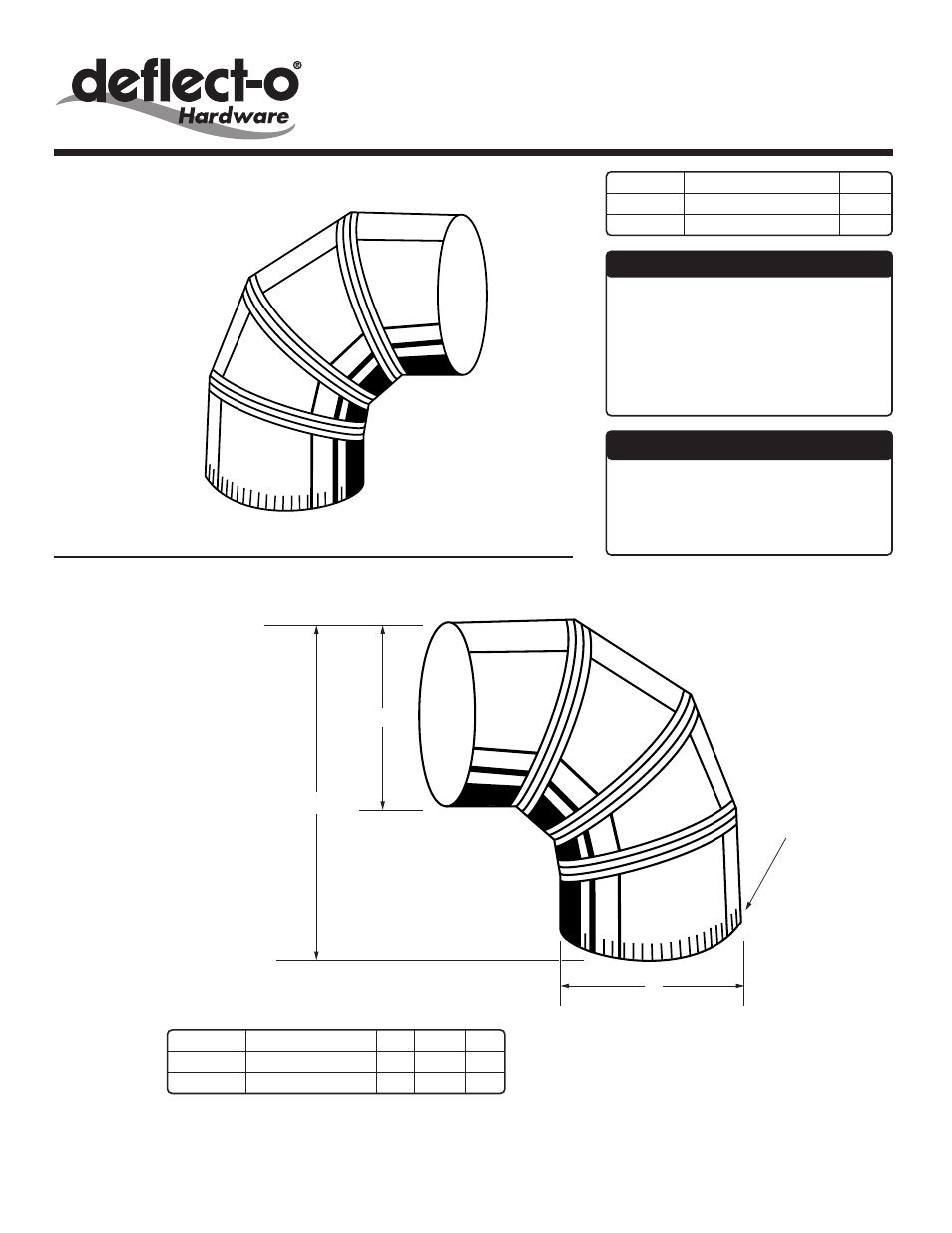

Technical Product Specifications
General Information
DE903 3"- 90° aluminum elbow Silver
DE904 4"- 90° aluminum elbow Silver
Model No. Description A B C
DE903 3"diameter opening 3" 2 7 /
8
" 6"
DE904 4"diameter opening 4" 3 7 /
8
" 6 1 /
2
"
Material
• aluminum
• thickness - 0.014"
Manufactured
• 4 sections riveted, each section
machined together for full range
adjustability, crimped at one end
• fully adjustable aluminum elbow from
0° to 90°
• light gauge most commonly used in dryer
or bathroom venting
• crimped at one end
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
DE903, DE904
6/01
A
B
C Crimped end
