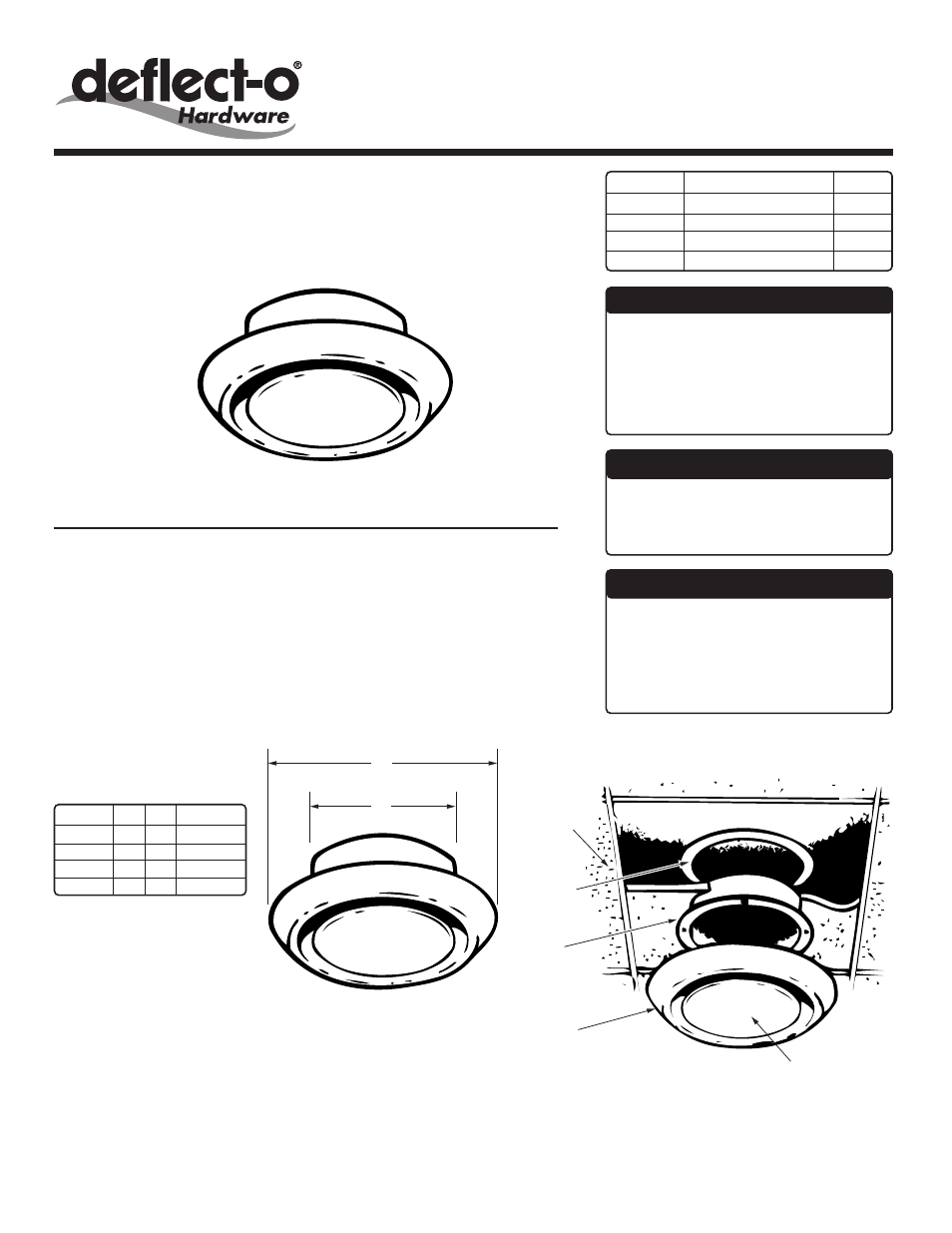

Deflecto TFGX6 - Manual

Technical
Performance Data
Model No. Description Color
for round plastic adjustable diffusers
Round Diffuser - 4" & 6" plastic adjustable diffuser
grills designed for suspended ceiling
applications
A
B
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. TFG4tps
Technical Product Specifications
TFG4 4" Diffuser White
TFG6 6" Diffuser White
TFGX4 4" Diffuser in a bag White
TFGX6 6" Diffuser in a bag White
Diffuser
• Calcium filled Polypropylene
• Melting point: 325° F+
Note
• we recommend using Supurr-Flex ®
pure aluminum flexible metallic duct
General Information
• ideal for suspended ceilings
• designed for suspended ceiling exhaust
of heating and cooling applications
• easy to adjust and install
• unique locking feature requires no
studs for installation
Technical Data
• each 4" diameter installation is designed
to handle areas up to 60 square feet
• each 6" diameter insatllation is designed
to handle areas up to 150 square feet
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
TFG4, TFG6, TFGX4, TFGX6
Model No. A B use flex duct
TFG4 3 7/8 " 5 7/8 " 4" dia.
TFG6 5 7/8 " 7 7/8 " 6" dia.
TFGX4 3 7/8 " 5 7/8 " 4" dia.
TFGX6 5 7/8 " 7 7/8 " 6" dia.
suspended
ceiling
locking
ring
collar
diffuser
adjustable
baffle
6/01
