When retrofitting a collimator etc., mount the sensor side of the
mounting bracket according to the following assembly drawing.
To facilitate mounting, mount the bracket first, then the sensor and the
source holder.
Note:
Mount the components in such a way that the marking arrows of the
console (3) and the collimator (1) point in the same direction.
Note the following illustrations.
1 2 3
4
9
14 15 16 17
10
11
12
13
5
6
7
8

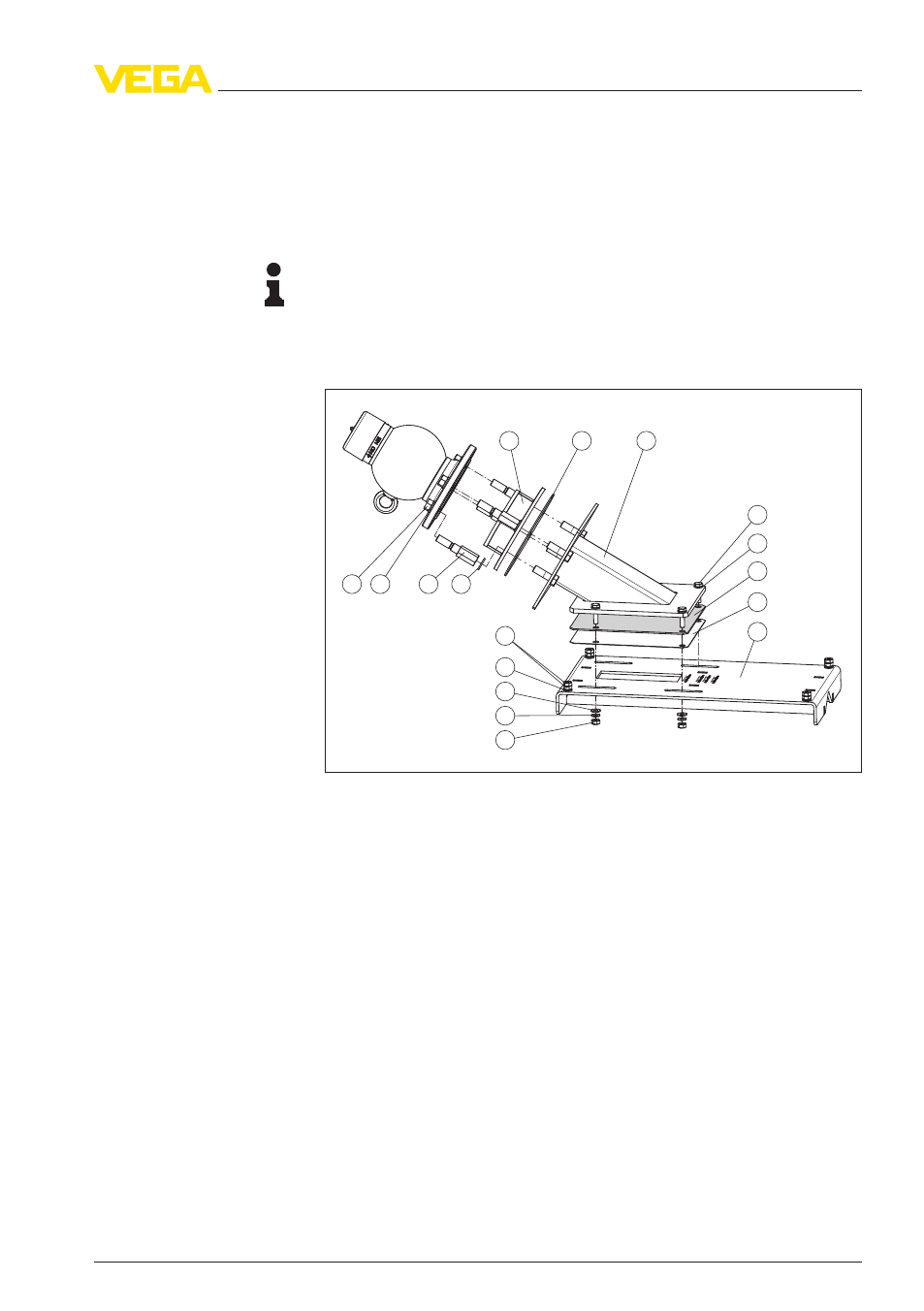

Fig. 3: Mounting bracket - Source holder side
1 Collimator - Source holder side (VEGASOURCE) - optional
2 Seal - collimator (source holder side) - optional
3 Console - Source holder side (VEGASOURCE)
4 Hexagon screw M10 - 4 pieces
5 Washer for M10 - 4 pieces
6 Seal - bracket (sensor side)
7 Cover plate
8 Clamp - Source holder side (VEGASOURCE)
9 Hexagon nut M10 - 4 pcs.
10 Spring ring for M10 - 4 pieces
11 Washer for M10 - 4 pieces
12 Washer for M10 - 4 pieces
13 Hexagon nut/Counter nut M10 - 8 pieces
14 Washer for M16 - 4 pieces - optional
15 Distance bolt M8 - 4 pcs. - optional
16 Washer for M16 - 4 pieces
17 Hexagon nut M16 - 4 pcs.
