24
6 Set up with the display and adjustment module
POINTRAC 31 • Profibus PA
43835-EN-131119
6.2 Adjustment system
1
2

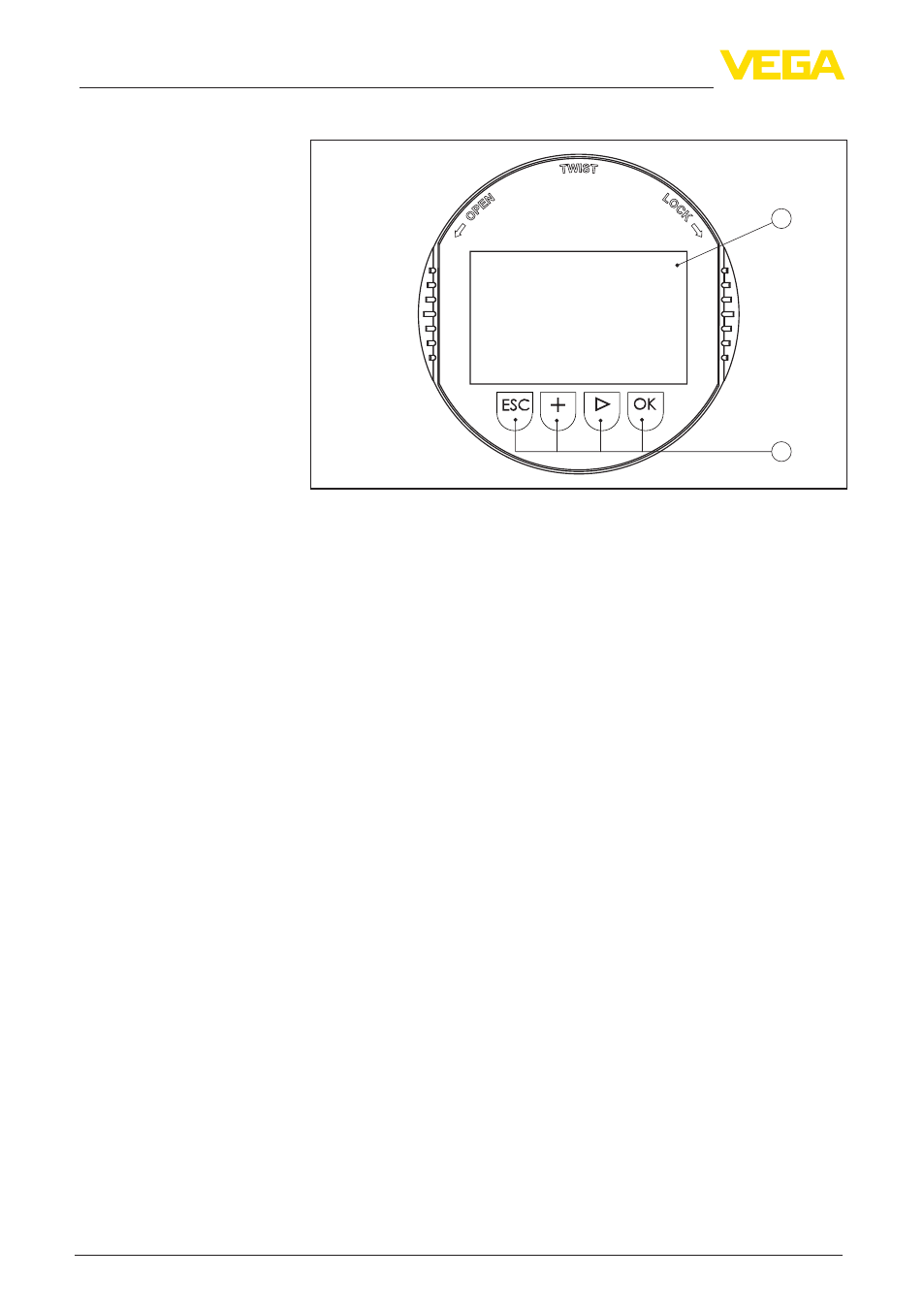

Fig. 14: Display and adjustment elements
1 LC display
2 Adjustment keys
•
[OK] key:
– Move to the menu overview
– Confirm selected menu
– Edit parameter
– Save value
•
[-] key:
– Presentation, change measured value
– Select list entry
– Select editing position
•
[+] key:
– Change value of the parameter
•
[ESC] key:
– Interrupt input
– Jump to next higher menu
The device is adjusted via the four keys of the display and adjustment
module. The LC display indicates the individual menu items. The
functions of the individual keys are shown in the above illustration. Ap-
prox. 60 minutes after the last pressing of a key, an automatic reset to
measured value indication is triggered. Any values not confirmed with
[OK] will not be saved.
6.3 Parameter adjustment
The instrument is adapted to the application conditions via the pa-
rameter adjustment. The parameter adjustment is carried out with an
adjustment menu.
Key functions
Adjustment system
