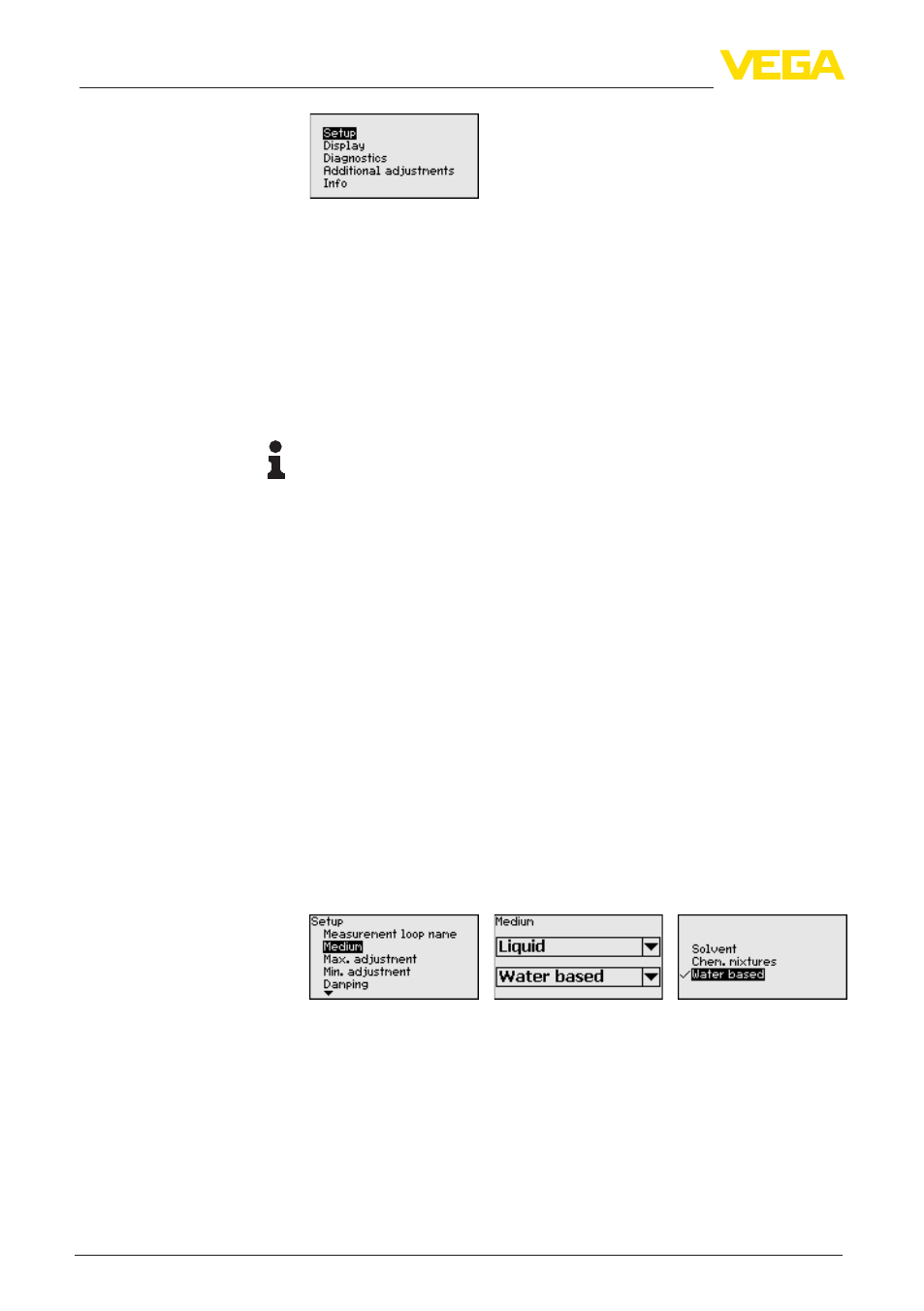

6 Set up with the indicating and adjustment module

VEGAPULS 66 standpipe version • Modbus and Levelmaster protocol

41367-EN-121011

Setup: Settings, e.g., for measurement loop name, medium, applica-

tion, vessel, adjustment, signal output
Display: Settings, e.g., for language, measured value display, lighting
Diagnosis: Information, e.g. on the instrument status, pointer, reli-

ability, simulation, echo curve
Further settings: Instrument unit, false signal suppression, linearisa-

tion curve, reset, date/time, reset, copy function
Info: Instrument name, hardware and software version, calibration

date, instrument features
Information:

In this operating instructions manual, the instrument-specific param-

eters in the menu sections "Setup", "Diagnosis" and "Additional set-

tings" are described. The general parameters in these menu section

are described in the operating instructions manual "Indicating and

adjustment module".
You can find in the operating instructions manual "Indicating and ad-

justment module" also the description of the menu sections "Display"

and "Info".
In the main menu point "Setup", the individual submenu points should

be selected subsequently and provided with the correct parameters

to ensure the optimum adjustment of the measurement. The proce-

dure is described in the following.
Setup
Each medium has different reflection properties. With liquids, further

interfering factors are fluctuation product surface and foam genera-

tion. With bulk solids, these are dust generation, material cone and

additional echoes from the vessel wall.
To adapt the sensor to these different measuring conditions, the

selection "Liquid" or "Bulk solid" should be made in this menu item.

Through this selection, the sensor is adapted perfectly to the product

and measurement reliability, particularly in products with poor reflec-

tive properties, is considerably increased.
Enter the requested parameters via the appropriate keys, save your

settings with [OK] and jump to the next menu item with the [ESC] and

the [->] key.

Since a radar sensor is a distance measuring instrument, the distance

from the sensor to the product surface is measured. For indication of

Setup/Medium

Setup/Adjustment
