11 Supplement
VEGAPULS 61 • 4 … 20 mA/HART - two-wire
36499-EN-121011
Protection class III
Approvals
Instruments with approvals can have different technical data depending on the version.
For that reason the associated approval documents of these instruments must be carefully noted.
They are part of the delivery or can be downloaded under www.vega.com and "VEGA Tools" as
well as under "Downloads" and "Approvals".

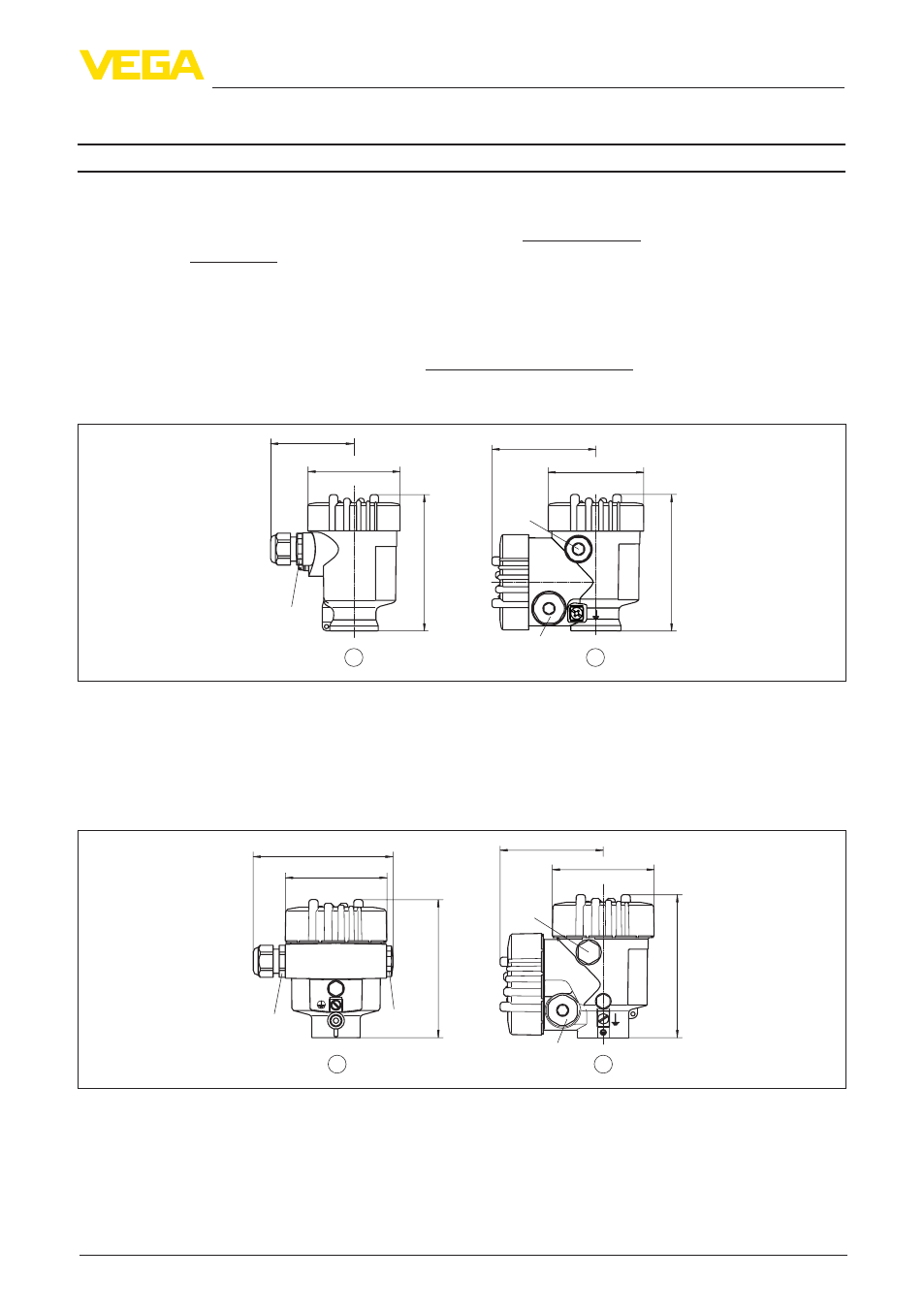

11.2 Dimensions
The following dimensional drawings represent only an extract of the possible versions. Detailed
dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings".
Plastic housing
~ 69 mm
(2.72")
ø 79 mm
(3.03")
112 mm (4.41"
)
M20x1,5/
½ NPT
~ 84 mm (3.31")
M16x1,5
112 mm (4.41"
)
M20x1,5/
½ NPT
1 2
ø 79 mm
(3.31")
Fig. 59: Housing versions in protection IP 66/IP 68 (0.2 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher
1 Single chamber version
2 Double chamber version
Aluminium housing
2 1
ø 86 mm (3.39")
~ 116 mm (4.57")
116 mm (4.57"
)
M20x1,5
M20x1,5/
½ NPT
~ 87 mm (3.43")
M16x1,5
ø 86 mm
(3.39")
120 mm (4.72"
)
M20x1,5/
½ NPT
Fig. 60: Housing versions in protection IP 66/IP 68 (0.2 bar) - with integrated indicating and adjustment module the
housing is 9 mm/0.35 in higher
1 Single chamber version
2 Double chamber version
