VEGA VEGAFLEX 66 (-200…+400°C) 4 … 20 mA_HART two-wire - Manual (Page 58)

1
2
-110°C
(-166°F)
-200°C
(-328°F)
-20°C
(-4°F)
0°C
(32°F)
-40°C
(-40°F)
60°C
(140°F)
80°C
(176°F)
100°C
(212°F)
200°C
(392°F)
100°C
(212°F)
400°C
(752°F)
300°C
(572°F)

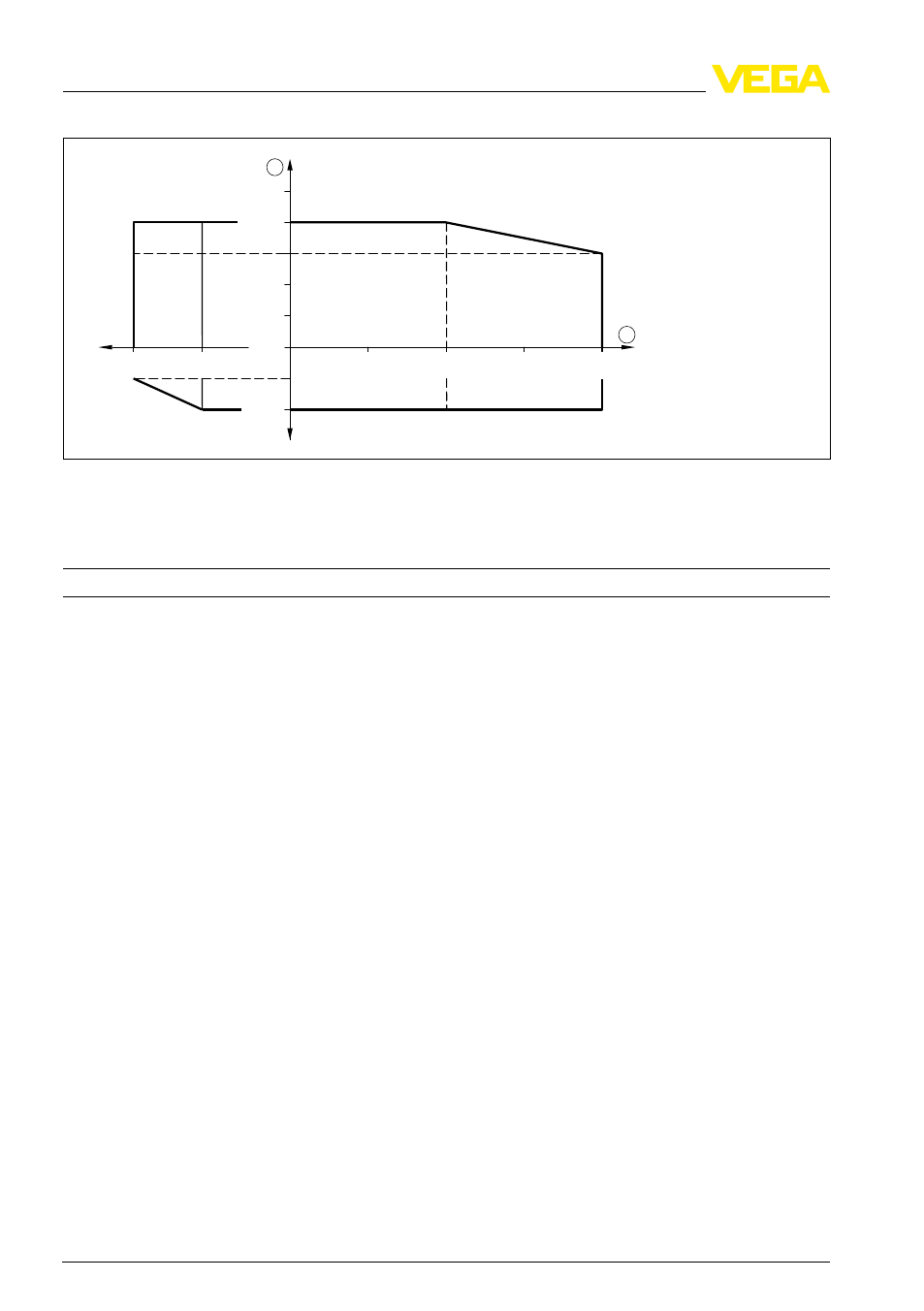

Fig. 34: Ambient temperature - process temperature (version -200 … +400 °C/-328 … +752 °F)
1
Ambient temperature
2 Process temperature (depending on the seal material)
Electromechanical data - version IP 66/IP 67 and IP 66/IP 68; 0.2 bar
C able entry/plug 3)
-
S ingle chamber housing
l
1 x cable gland M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5
or:
l
1 x closing cap M20 x 1.5; 1 x blind stopper
M 20 x 1.5
or:
l
1 x closing cap ½ NPT, 1 x blind plug ½ NPT
or:
l
1 x plug (depending on the version), 1 x blind
stopper M20 x 1.5
-
D ouble chamber housing
l
1 x cable entry M20 x 1.5 (cable: ø 5 … 9 mm),
1 x blind stopper M20 x 1.5; 1 x blind stopper
M 16 x 1.5 or optionally available with 1 x plug
M 12 x 1 for VEGADIS 61
or:
l
1 x closing cap ½ NPT, 1 x blind stopper
½ NPT , 1 x blind stopper M16 x 1.5 or
optionally 1 x plug M12 x 1 for VEGADIS 61
or:
l
1 x plug (depending on the version), 1 x blind
stopper M20 x 1.5; 1 x blind stopper M16 x 1.5
or optionally available with 1 x plug M12 x 1 for
VEGADIS
61
3) D epending on the version M12 x 1, according to DIN 43650, Harting, 7/
8" FF.
58 VEGAFLEX 66 • 4 … 20 mA/HART two-wire
