VEGATOR 620 … 622
Setup
4.2 Setup sequence
The following list explains briefly the essential
setup steps
- mount the terminal socket
- wire the terminal socket according to your
control requirements
- cover the input terminals with the separat-
ing wall (4)
- set the requested mode (A/B) on the DIL
switch block (12)
- deactivate the on delay/off delay modes
(switches ze, za, 2, 6, 12 to position „off“)
on the DIL switch block (12)
- mount the instrument module onto the ter-
minal socket
- switch on the power supply, the green LED
(3) lights
- adjust the switching points acc. to „4.3
Switching point adjustment“
- if an integration time (on delay/ off delay)
should be necessary, the instrument must
be removed again to set the time on the
DIL switch block (12).
Potentiometer
The potentiometers (1, 9 and 10), allow
continuous adjustment of the switching
points.
Signal lamps
Green (3)
- supply voltage available
- ready for operation
Yellow (2)
- status indication of the relay and transistor
outputs
LED lights (relay energised, transistor
conductive), LED extinguished (relay
deenergised, transistor blocked)
Red (8)
- failure indication

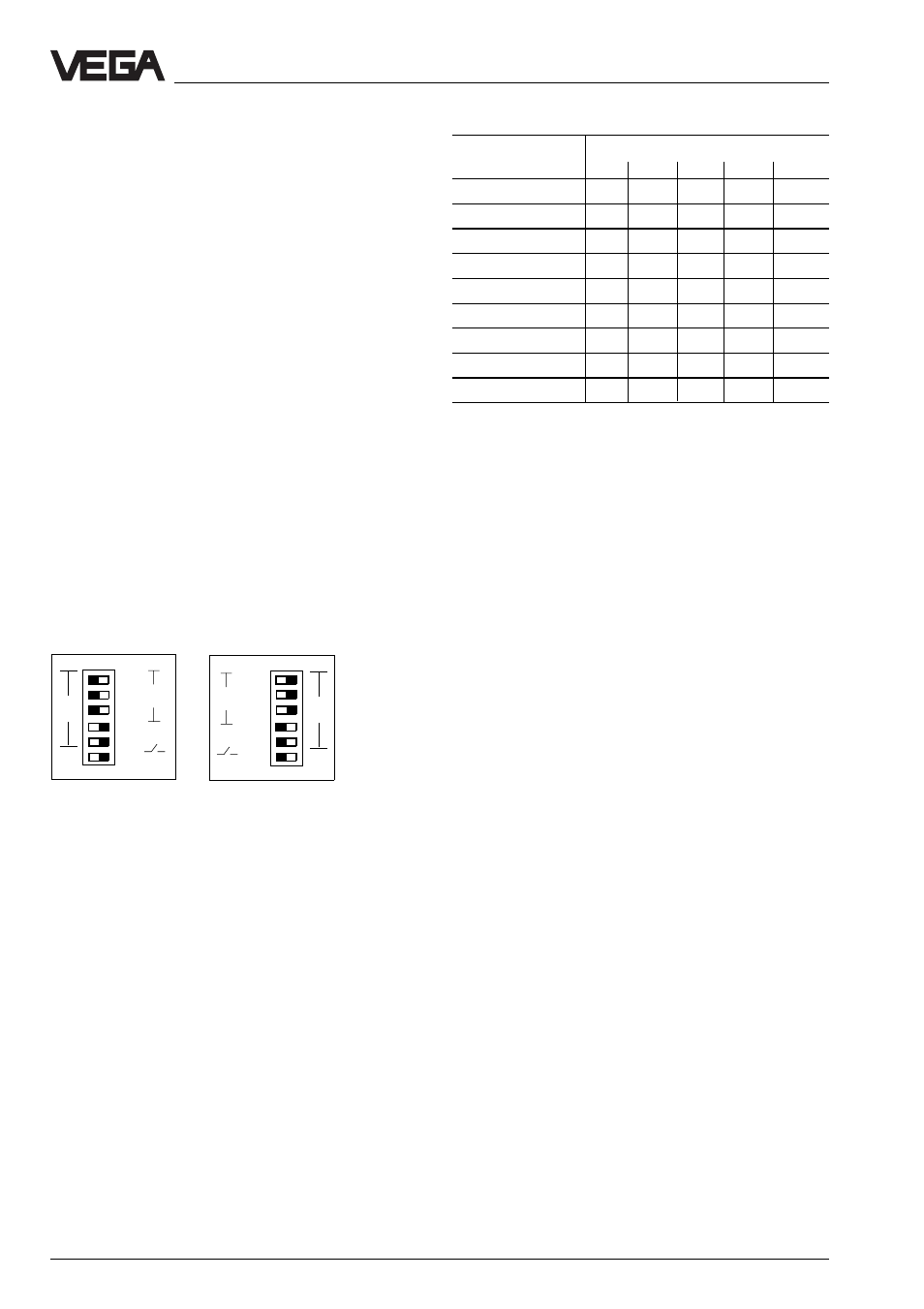

DIL switch block (12)
When VEGATOR is installed, the terminal
socket covers the DIL switch block. Adjust-
ments are only possible when the instrument
is dismounted.
VEGATOR 620
VEGATOR 621, 622
off
B
12
6
2
ze
za
A
t sec
12
6
2
ze
za
A
off
B
t sec
The individual switches are assigned as
follows:
- switch A/B: mode switch
A - max. detection (overfill protection)
B - min. detection (dry run protection)
- switch ze and za
ze - switch on delay
za - switch off delay
- switch 2, 6, 12
With these you can adjust the delay time.
The time intervals of the activated time
switches sum up. When the on delay/off
delay switches are switched on together,
the set time is valid for both delay modes
(see the following table).
Switch on/off
Switch
delay
za
ze
2
6
12
0,2 s
off
off
off
off
off
0,3 s
on
on
off
off
off
2 s
on
on
on
off
off
6 s
on
on
off
on
off
8 s
on
on
on
on
off
12 s
on
on
off
of
on
14 s
on
on
on
off
on
18 s
on
on
off
on
on
20 s
on
on
on
on
on
