VEGAKON 9

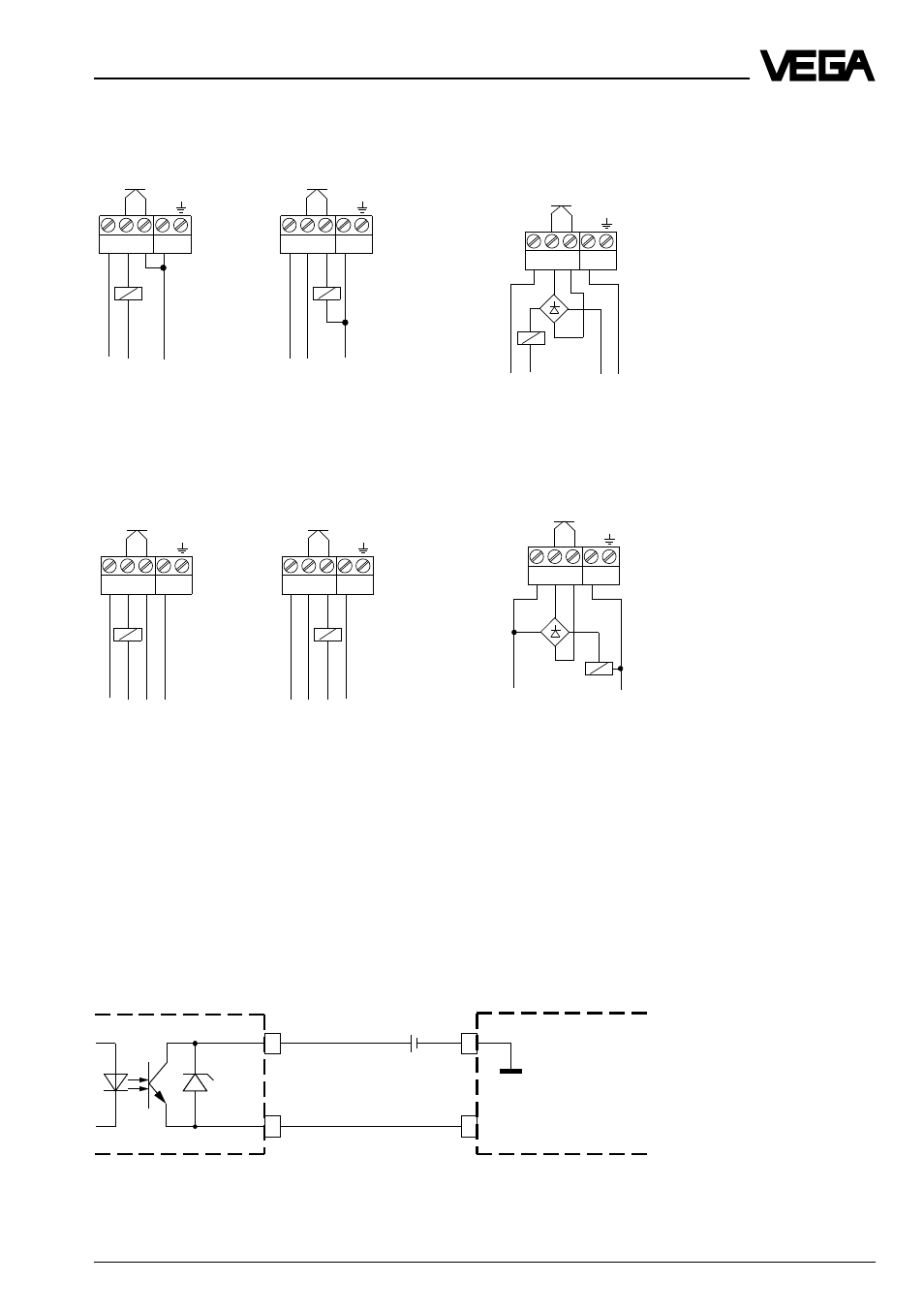

Electrical connection
The transistor switches a second voltage source with
the same reference potential to the binary input of a
DCS or to an electrical load.
Control of alternating current loads
The transistor switches a galvanically separate
alternating voltage 10 … 42 V AC to a load.
The transistor switches an alternating voltage
10 … 42 V AC, which is also supply voltage to a load.
Note
The transistor outputs of several VEGAKON can be
connected in series or parallel to combine their signals
logically. The wiring should be made such that
terminal 2 has always higher voltage than terminal 3.
The transistor switches a second, galvanically
separated voltage source to the binary input of a DCS
or to an electrical load.
Transistor output in conjunction with a DCS (PNP-reaction)
NPN-reaction PNP-reaction
–
+
–
1 2 3 4
+
5
–
+
–
1 2 3 4
+
5
+ +
– –
NPN-reaction PNP-reaction
–
+
–
1 2 3 4
+
5
–
+
–
1 2 3 4
+
5
+ +
–
1 2 3 4
+
5
~ ~
– +
–
1 2 3 4
+
5
~ ~
VEGAKON 61
VEGAKON 63 DCS
E1.0
+
–
–
+
