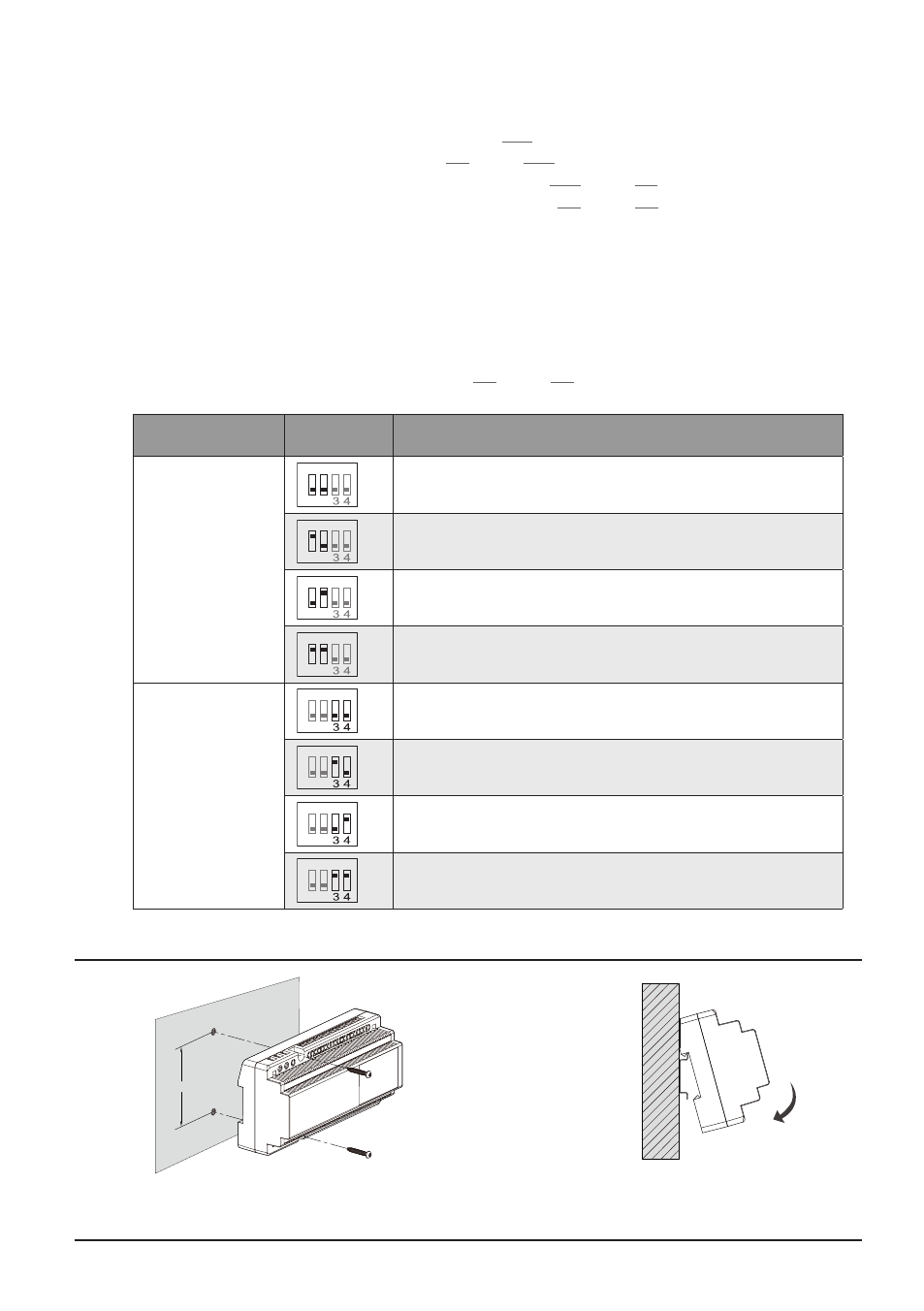

Bit definition Bit state Function Descriptions
Bit-1●and●bit-2
Control●Mode●setting
1 2
ON Do●not●control●any●light●or●lock.
1 2
ON lock●control.
1 2
ON
light●control●with●Delay●Mode.
1 2
ON light●control●with●Trigger●Mode.
Bit-3●and●Bit-4
Light●Delay●time●or●
Unlock●time●setting
1 2
ON 10●minutes●light●delay●time●or●10●seconds●unlock●time
1 2
ON 5●minutes●light●delay●time●or●5●seconds●unlock●time
1 2
ON 3●minutes●light●delay●time●or●3●seconds●unlock●time
1 2
ON 1●minutes●light●delay●time●or●1●seconds●unlock●time
DIP-4 settings: The●DIP-4●switches●are●for●Light●/●Lock●control●settings.
● ● Bit-1●and●Bit-2:●●Control●Mode●setting.●There●are●four●different●settings
●» When●no●light●or●lock●connected,●set●●Bit-1●=●Bit-2●=● OFF ;●
●» When●connect●a●electronic●lock,●set●Bit-1●=● ON ,●Bit-2●=● OFF ;●
●» When●connect●a●light,●and●use●the●Delay●Mode,●set●●Bit-1●=● OFF ,●Bit-2●=● ON ;●
●» When●connect●a●light,●and●use●the●Trigger●Mode,●set●●Bit-1●=● ON ,●Bit-2●=● ON .
● ● Delay●Mode●and●Trigger●Mode:●
●» ●Delay●Mode:●the●light●will●be●automatically●turned●off●after●a●specified●period●of●time(can●be●set●to●1,●3,●5●
or●10●minutes●by●the●Bit-3●and●Bit-4●switches);●
●» Trigger●Mode,●the●light●will●be●turned●on●and●off●manually●by●the●Light●Button●or●the●screen.
● ● Bit-3●and●Bit-4:●Light●delay●time●or●Unlock●time●setting.
●» When●connect●a●light,●1,●3,●5●or●10●minutes●delay●time●can●be●choosen,●this●setting●will●be●invalid●when●
the●Control●Mode●is●set●to●Trigger●Mode(Bit-1●=● ON ,●Bit-2●=● ON ●).
●» When●connect●a●lock,●1,●3,●5●or●10●seconds●unlock●time●can●be●shosen.●
80mm
4. Mounting
Mounting●mathod●1:●Direct●mounting.●use●two●
srews●to●fix●the●DCU●on●the●wall●Drectly Mounting●mathod●2:●DIN●nail●mounting.●Slot●the●
DCU●on●the●DIN●nail.
