Veris Technologies 3150 Soil EC Mapping System - Operating Instructions - Manual (Page 20)

Pub. # OM17-EC
3-2

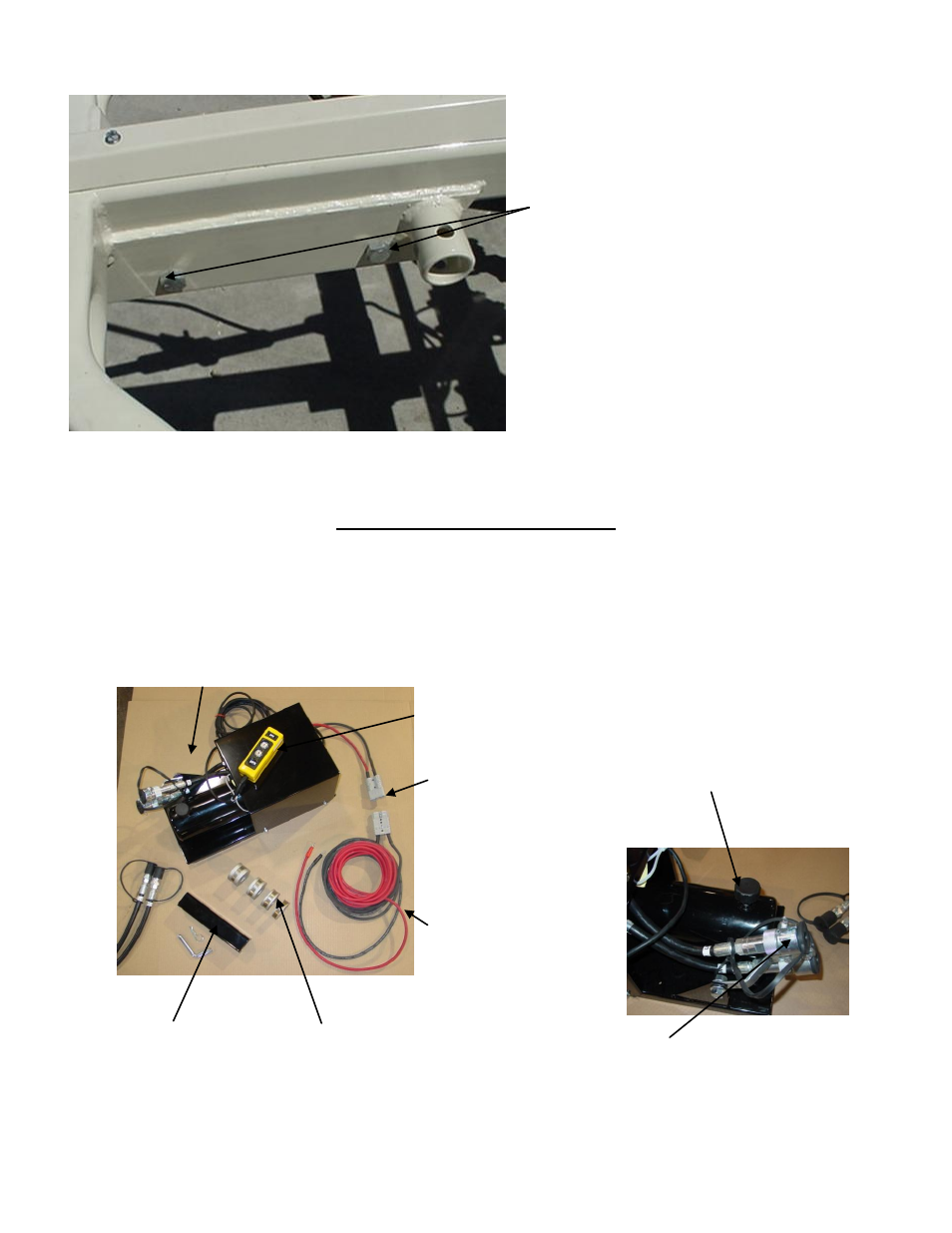

Figure 3.
Electro-hydraulic Lift Kit Set-up
The Electro-hydraulic Kit is shipped in a pre-assembled state, and has been tested prior to
shipment.
Figure 4. Hyd Power Unit
Remote Control Figure 5.
Quick connects Breather/fill plug
20’ Power cable
Transport Lock Depth collars Quick couplers
3. Install tongue with two
5/8’ X 41/2” bolts and
torque to 170 ft lbs
