Code Options
WNS
For stainless steel pipes.
For V150, furnished with one SS weld coupling.

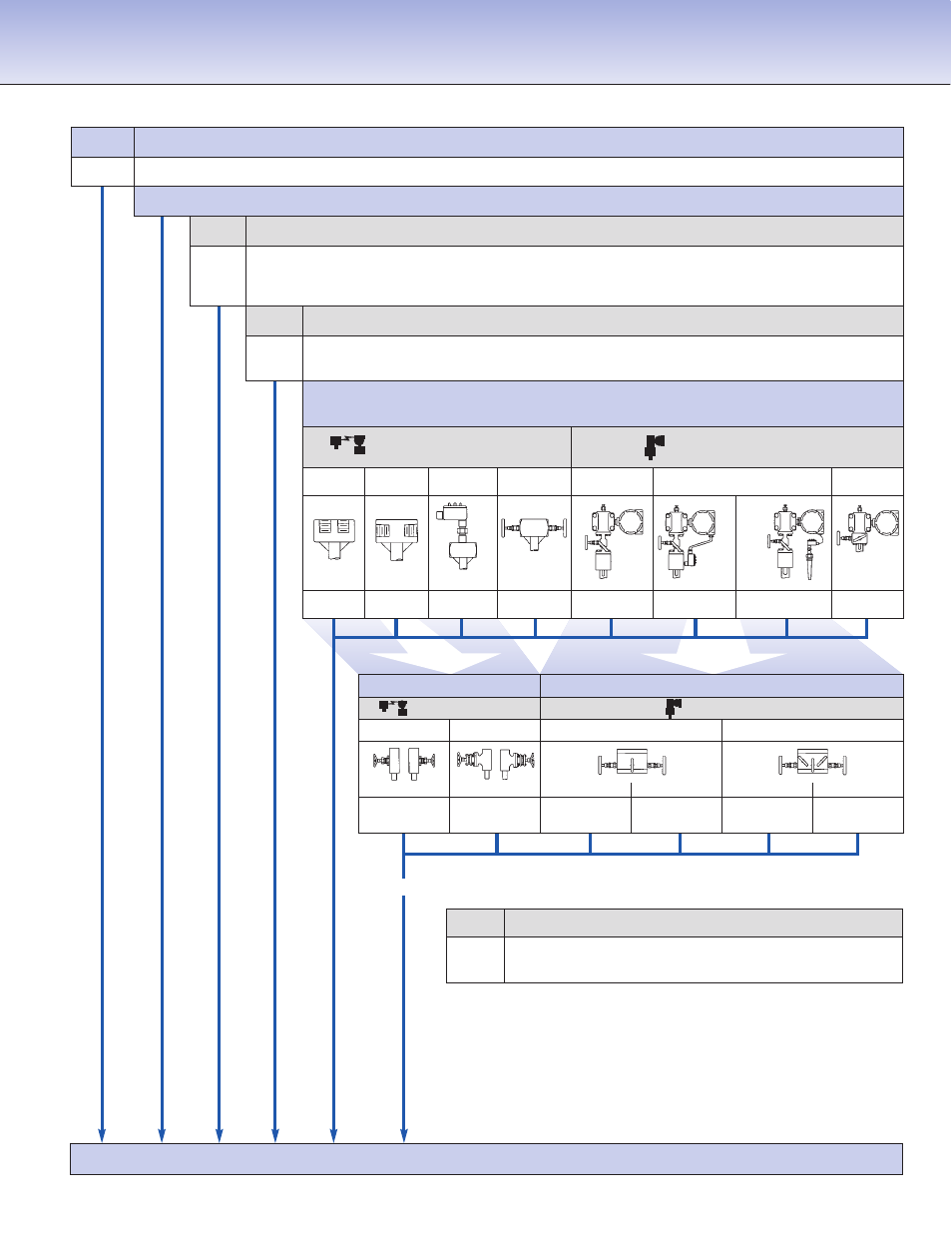

V150 8”sch 40 10 H R C2NC Typical Model Number
Ordering Information
* For high pressure (>500psig) or high temperature (>500°F), remote mount RTD in a thermowell is preferred.
† Assuming adequate heat dissipation for transmitter.
Model Regular
V150 Spring Lock
Pipe Size and Schedule or Exact ID and Wall Thickness
Code Sensor Pipe Size Range
05 2” to 6” (50mm to 150mm)
10 6” to 42” (150mm to 1050mm)
15 12” to 60” (300mm to 1500mm)
Code Pipe Orientation
H Horizontal
V Vertical
Instrument Connections (Select Remote or Direct Mount)
(Transmitter sold separately)
Remote Mount Transmitter Direct Mount Transmitter
(1/2” NPT) (Flanged 450°F/232°C Max.)†
Parallel Regular RTD * Valve Transmount Mass Transmount * Manifold
P R D T F G E M
Instrument Valves (Opt.) Manifolds (Optional)
Remote Mount Direct Mount
Needle Gate 3-Valve 5-Valve
C2NC (CS) C2GC (CS) F3SC (CS) F3HC (CS) F5SC (CS) F5HC(CS)
C2NS (SS) C2GS (SS) F3SS (SS) F3HS (SS) F5SS (SS) F5HS (SS)
1/2” NPT Soft Seat Hard Seat Soft Seat Hard Seat 1/2” NPT
Explsn. Proof
Remote
RTD
Integral
RTD Integral Integral
Optional
