Velleman VM134-k8076 User Manual
Page 14
PicProg2006 helpmanual
13
© 2007 Velleman Components

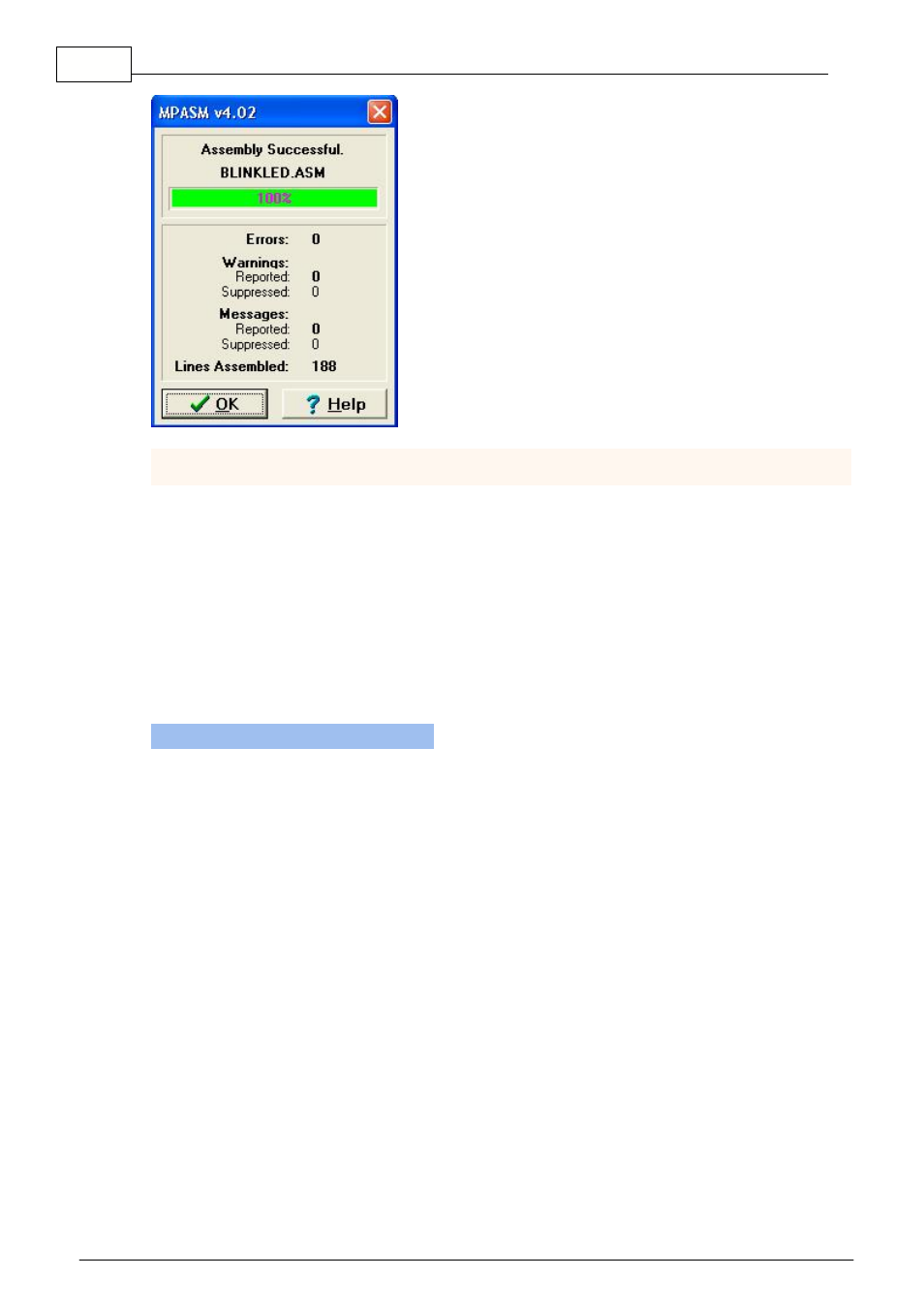

Before programming the controller, make sure there are no errors in the assembler code (Errors =>
0)
Causes of a communication breakdown:
·
PIC controller type does not correspond with the chosen software type
·
power supply of the VM134 is too low (15V)
·
incorrect PIC selection through patch cables
·
defective PIC controller
·
PIC controller status cannot be put in program mode
Remark:
This PIC programmer will not be able to program controllers which simultaneously use
the internal oscillator and the MCLR pin as input. Programming such a controller can damage it
beyond reuse.
STEP 2: Programming the controller
·
Start PICprog2006
·
Click the "LOAD HEX FILE" icon. Following screen will appear:
